Z-Wave™ shutter control with power measurement, 10 A per channel
Automate and remotely control the position of roller shutters, blinds, windows, awnings, pool covers, and other devices powered by bi-directional AC motors.
- Control the tilt position (angle) of the venetian blind slats

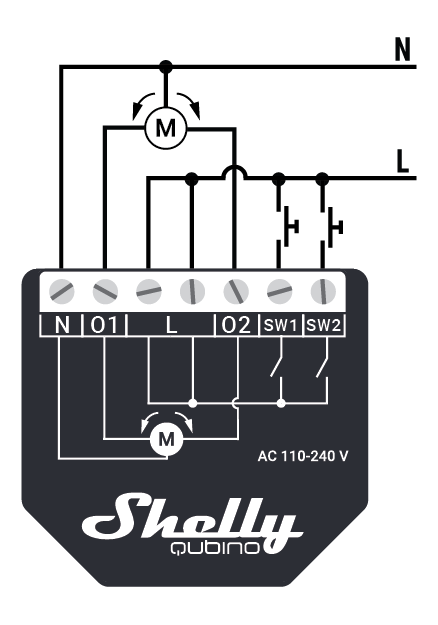

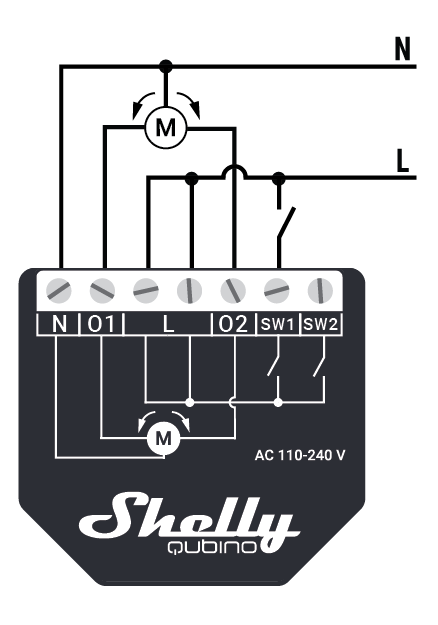

- Supports push-buttons/momentary switches, and toggle switches
- Power metering
- Extremely low power consumption: < 0.3 W
- Z-Wave frequency band: 868.4 MHz (CEPT countries)
- Latest technology: Z-Wave 800 Series
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Over-the-air firmware updates
- Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
*A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.
introduction to z-wave
Shelly Qubino works on Z-Wave
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly Qubino devices work on the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes in the world.
*Z-Wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-wave hub. For more information, please visit the official Z-Wave website: www.z-wave.com
introduction to shelly qubino
Works with any Z-Wave gateway
Wave Shutter is retrofit and designed to fit behind switches/push-buttons, instantly transforming them into smart ones. Once installed, include the device in your Z-Wave network (Z-Wave gateway is required) and control connected appliances from anywhere using your smartphone or tablet. Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways.
Connect Wave Shutter to your Z-Wave network and control it remotely. It‘s compatible with all certified Z-Wave gateways.
Set the desired position of your blinds, roller shutters, screens, awnings, and other devices powered by bi-directional AC motors.
Use Wave Shutter with your venetian blinds and control the tilt position (angle) of slats to adjust the amount of light in a room.
Establish direct communication between devices in your Z-Wave local network and set custom actions with no hub present!
Set up your blinds to work automatically by creating personalized schedules aligned with your daily routine or synchronize with sunrise/sunset (gateway required).
Set custom scenes by combining Wave Shutter with any other Z-Wave devices (gateway required).
Program your daily routines to perfection by synchronizing Wave Shutter with your regular morning and evening activities. Have your curtains open and close at your chosen hours every day, establishing an ideal ambience to start and end your day. Use position control to dictate your preferred curtain position, customizing your lighting levels to your exact liking. And don‘t worry– manual operation remains at your fingertips, with curtains being easily controllable via a switch or a push-button, suiting the needs of everyone in your home.
Nowadays, many people prefer working from their home office. However, direct sunlight on your computer screen can be irritating. With Wave Shutter, you can adjust the position of the venetian blinds using your smart home app, without leaving your desk and interrupting your workflow. Additionally, it also allows you to adjust the blind slats angle, depending on how much natural light you prefer to let in. Make working from home as comfortable as possible to maximize productivity!
Concerned about leaving your home unprotected while on vacation or a business trip? Enhance your home’s safety by integrating Wave Shutter with other devices to establish the “Vacation Scene.” When you’re away, your window coverings will adjust automatically at pre-determined times daily, and both indoor and outdoor lights will illuminate every evening. This will give the impression that someone is at home, deterring potential intruders. Secure peace of mind along with your property, even when you're miles away.
By creating associations between the Wave Shutter and other Z-Wave devices, they can communicate directly without a gateway. For example, you can connect Wave Shutter with a Z-Wave wind sensor/weather station. When strong wind is detected, your awnings will automatically close to avoid damage.
|Size (H x W x D):||37 mm x 42 mm x 16 mm ± 0.5 mm / 1.46 in x 1.65 in x 0.63 in ± 0.02 in|
|Weight||29 g / 1.02 oz.|
|Screw terminals max. torque||0.4 Nm / 3.5 lbin|
|Conductor cross section||0.5 to 1.5 mm² / 20 to 16 AWG|
|Conductor stripped length||5 to 6 mm / 0.20 to 0.24 in|
|Ambient temperature||-20°C to 40°C / -5°F to 105°F|
|Humidity||30% to 70% RH|
|Max. altitude||2000 m / 6562 ft.|
|Power supply||110–240 V AC ±10%|
|Power Consumption||< 0.3 W|
|Max. switching voltage AC||240 V|
|Max. switching current AC||10 A per channel|
|Z-Wave frequencies band(s)||868,4 MHz; 865,2 MHz; 869,0 MHz; 921,4 MHz; 908,4 MHz; 916 MHz; 919,8 MHz; 922,5 MHz; 919,7-921,7-923,7 MHz; 868,1 MHz; 920,9 MHz|
|Z-Wave range||Up to 40 m indoors (131 ft.) (depends on local condition)|
|Maximum radio frequency power transmitted in frequency band(s)||< 25 mW|
