Wi-Fi operated relay switch, 1 channel 16A with power metering
Typically used for:
Power monitoring
Energy saving
Scene activation
Power measurement
All orders are shipped from the EU
Couldn't load pickup availability
Key Features
Supports 110-230 V AC and 24-30V DC
Precise monitoring of your appliances' power consumption
Internal temperature sensor for overheating protection
Designed to fit in most standard electrical boxes and switches
Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
Has an embedded web server and connects to your Wi-Fi network

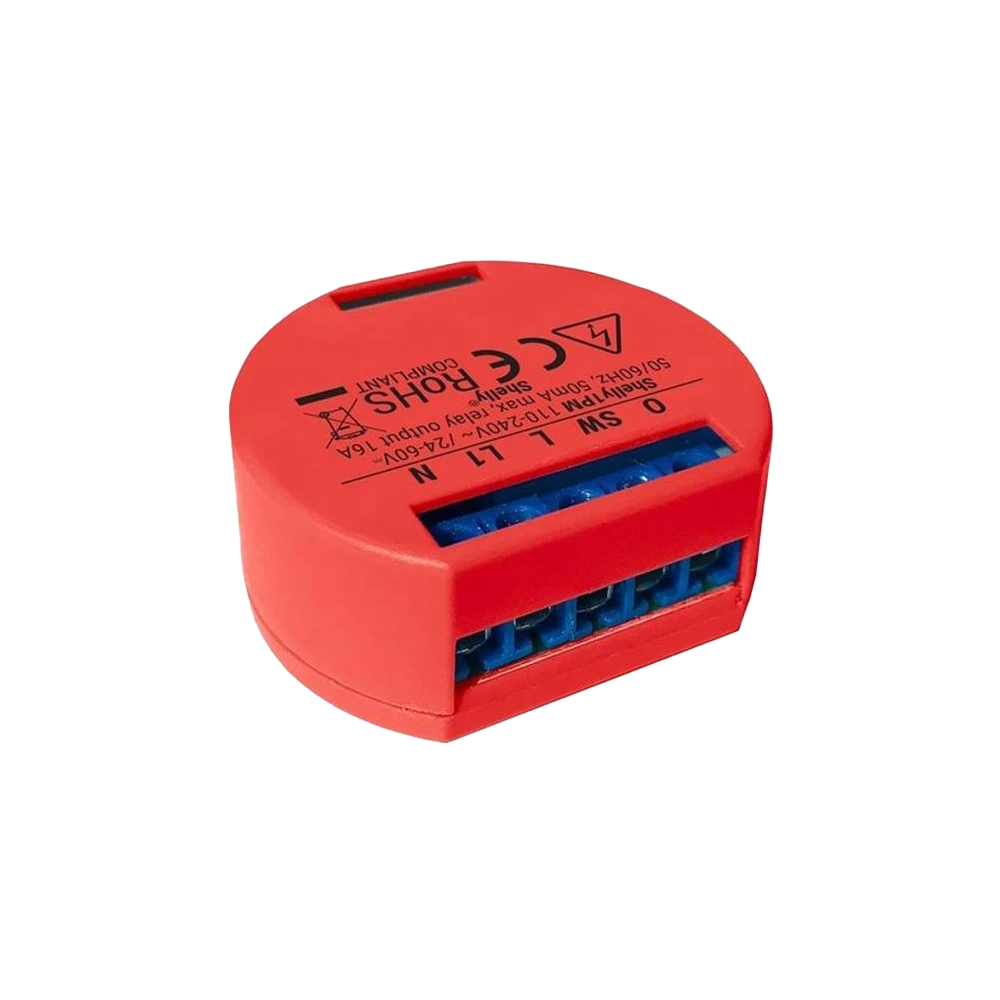

Shelly 1PM
Device identification
Device name: Shelly 1PM
Device model: SHSW-PM
Device SSID: shelly1pm-XXXXXX
Short description
Shelly 1PM is a small form factor smart switch with power measurement, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.
Shelly 1PM can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.
It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space.
Shelly 1PM has embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.
Main applications
Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college
Integrations
Google
Samsung SmartThings
Alexa
Simplified internal schematics

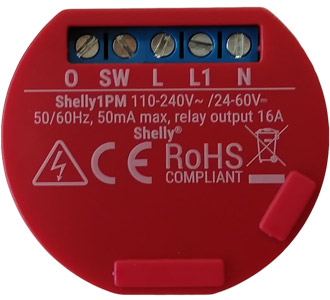

Device electrical interfaces
Inputs
1 switch/button input on screw terminal
3 power supply inputs on screw terminals: N (+), L, L1
Outputs
1 relay outputs with power measurement on screw terminal
Add-on interface
Shelly proprietary serial interface
⚠CAUTION! High voltage on the add-on interface when the Device is powered!
Connectivity
Wi-Fi
Safety features
Overheating protection
Overpower protection
Supported load types
Resistive (incandescent bulbs, heating devices)
Capacitive (capacitor banks, electronic equipment, motor start capacitors)
To measure the moisture you need Shelly Plus UNI or Plus Add-on attached to Shelly 1/1PM/2PM/i4, and a moisture sensor that is converting the readings into voltage.
Is it possible to use the device without a hub?
Yes, Shelly devices (except for Wave devices) operate independently without the need for a hub. They connect directly to your Wi-Fi network, and you can control them via the Shelly Smart Control app, web interface, or through integrations with platforms like Google Home, Alexa, Home Assistant and Samsung SmartThings.
Control and monitor a wide range of home appliances from anywhere with the tiny Wi-Fi-operated relay switch featuring precise power monitoring - Shelly 1PM. From light automatization to electrical appliances control, Shelly 1PM provides accurate power metering with free cloud data storage for further analysis and energy usage optimization. Small enough to fit behind every wall switch or wall socket, Shelly 1PM is retrofitted and can be installed in less than 10 minutes.
Wi-Fi Operated
Connect Shelly 1PM to your Wi-Fi network. No HUB required!
Retrofit
Shelly 1PM fits behind any existing wall switch or socket.
Power Monitoring
Shelly 1PM provides precise monitoring of the power consumption.
Wide range of voltage support
Use it to control a wide range of devices and appliances.
Smart schedules
Set custom schedules based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.
Smart scenes
Set custom scenes by combining Shelly 1PM with your other Shelly devices.
Solutions
Shelly 1PM

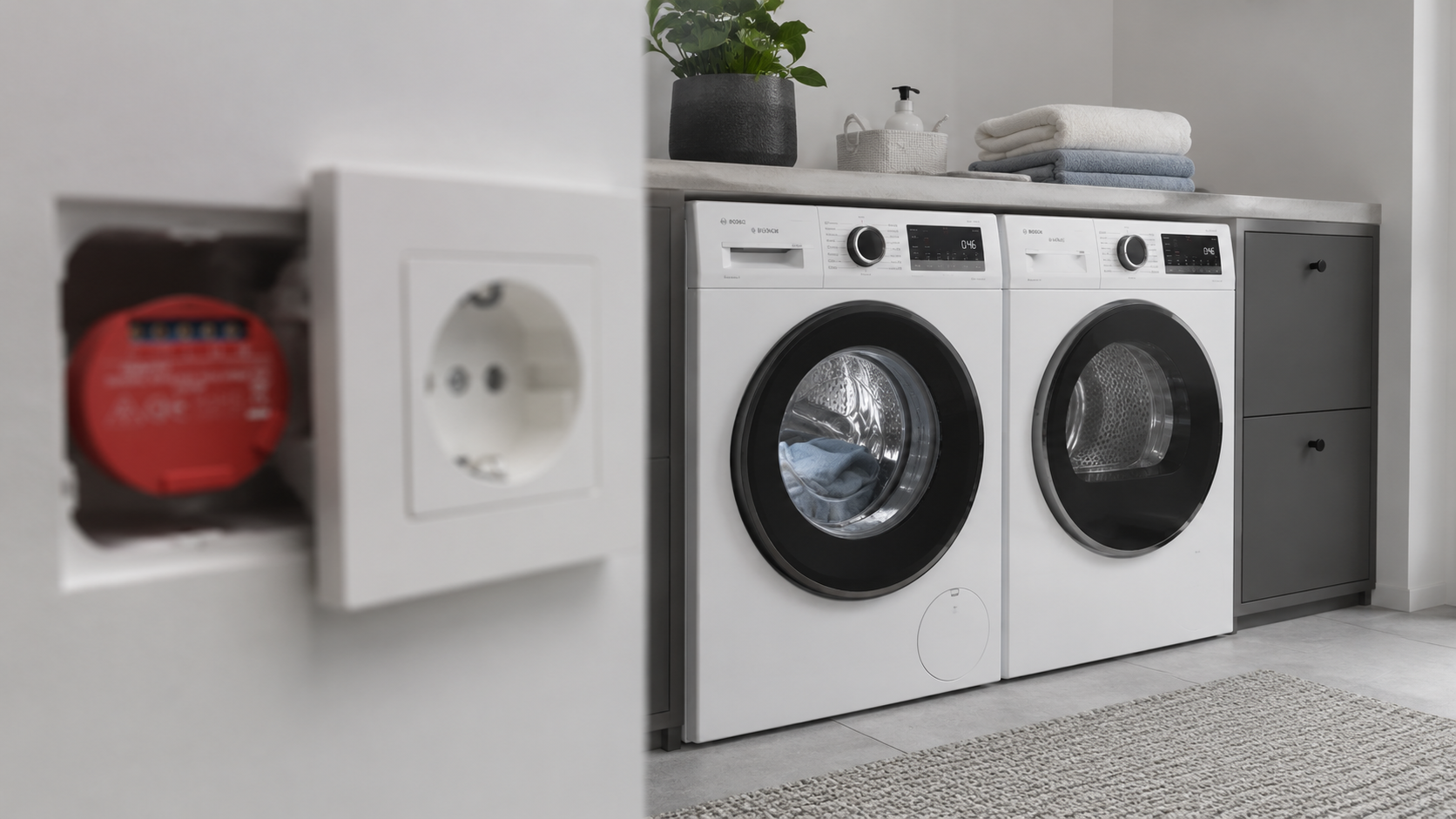

Fits behind any socket
Fits behind any socket
Automate your sockets and measure the power of any connected appliance. Hook your washing machine, dryer, dishwasher, or any other electrical appliance and get precise measurements of the power consumption of each of them, allowing you to know when the program has finished. Additionally, you can switch them on/off remotely in case of leaks, no matter where you are.
Come home to a cozy house
Come home to a cozy house
Nothing’s better than coming to a cozy home on a chilly winter day! Schedule Shelly 1PM to turn on the electric heating appliances in your house an hour before you come home from work. Remotely monitor the power consumption of your heaters to make sure they’re running and warming up. That way your home will be nice and cozy for you and your family the moment you walk in!

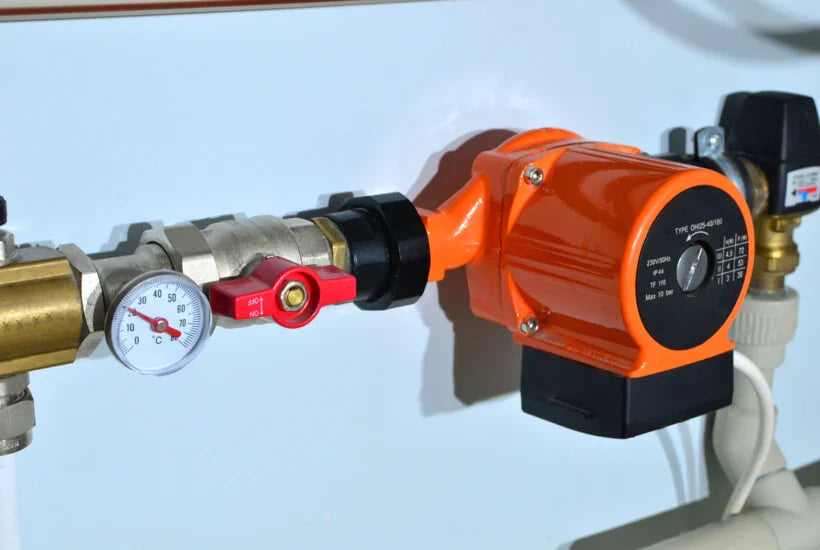

Efficient water heating
Efficient water heating
Effortlesslyreduce water and energy wastageby automating your water heater with Shelly. Together with a temperature sensor, Shelly 1PM can turn off the water heater automatically when the optimal temperature is reached. Additionally, smart scheduling can help you followthe night energy tariff,as well as your personal daily schedule, further optimizingenergy efficiency.
Automate and measure your lights
Automate and measure your lights
Automate your lights and measure their real-time power consumption with Shelly 1PM. Offering you free 365 days of data storage, you can analyze your monthly consumption and use scheduling features to improve your energy efficiency. Now you will never again have to worry if you forgot a light switched on before leaving for work or a family vacation. Shelly will inform you and allow you to switch it off remotely, making sure that no energy will go to waste in the meantime.
