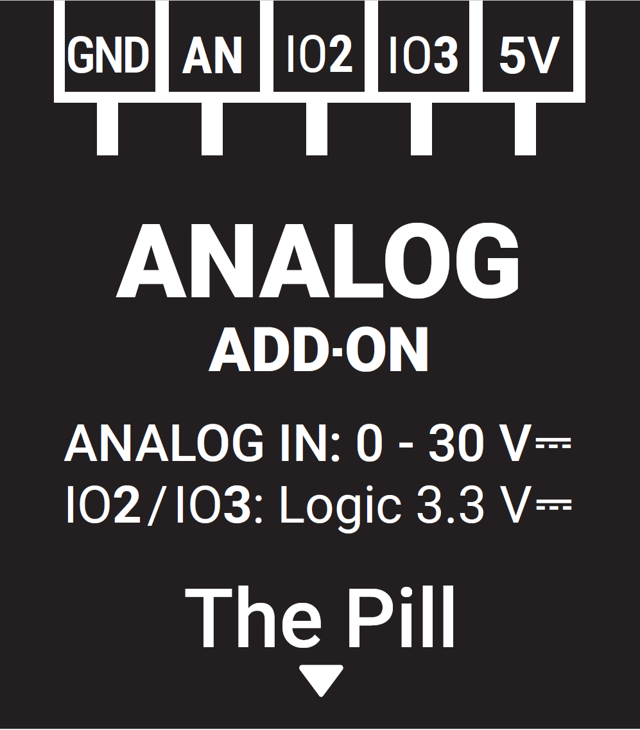

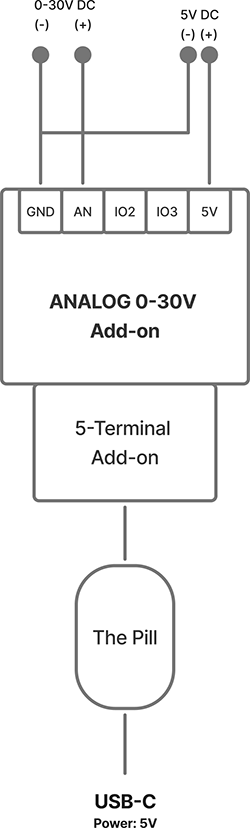

GND

Ground

Reference ground for connected sensors or power supply

AN

Analog Input: 0 - 30 V

Measurement of the connected analog sensor or battery

IO2

Input/Output (logic-level 3.3V)

Configurable for: Digital Input or Digital Output

IO3

Input/Output (logic-level 3.3V)

Configurable for: Digital Input or Digital Output

5V

5V Power

Power output for sensor or 5V Power for The Pill

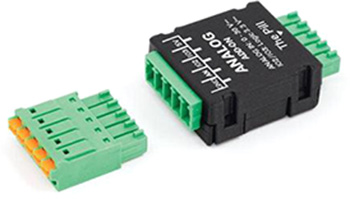

Physical

Size (HxWxD):

36.5 mm x 26.5 mm x 11.5 mm

Weight:

8 g

Shell color:

Black

Environmental

Ambient working temperature:

0 to 40 °C / 32 to 105°F

Storage temperature:

-20°C to 40°C / -5°F to 105°F

Humidity:

30 % to 70 % RH

Max. altitude:

2000 m / 6562 ft

Sensors, meters

Voltmeter range (DC)

0 V - 30 V

Voltmeter accuracy:

±(2% + 5d)

Input circuits ratings

Digital inputs triggering voltage:

Active LOW;

Trigger low: < 0.83 V

Trigger high: > 2.48 V

Digital inputs max. voltage

3.3 V

Output circuits ratings

Max. switching voltage:

3.3 V (logic-level)

Max. switching current:

20 mA
