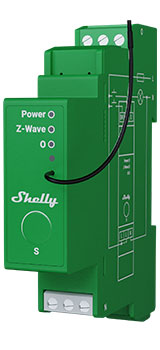

Shelly Wave Pro Dimmer 1PM EU

Shelly Wave PRO Dimmer 1PM (EU)


Device identification

Device: Shelly Wave Pro Dimmer 1PM (EU)
EU Part number/Ordering Code: QPDM-0A1P01EU
Z-Wave Product type ID: 0x0001
Z-Wave Product ID: 0x0081
Z-Wave Manufacturer: Shelly Europe
Z-Wave Manufacturer ID: 0x0460

Terminology

Click to hide/unhide
  • OTA - Over-The-Air firmware update.

  • FW - Firmware

  • ZAF - Z-Wave® protocol

  • NIF - Node Information Frame; the frame that is sent at every adding (inclusion) to present/advertise the Device’s capability to the gateway, so that it may adjust its operating ability.

  • CC - Command Class (ZAF centerpiece of interoperability). The files/processes that determine how data is sent and handled/received. Command Classes include their signatures while sending data to allow recognition of which process is sending data for the destination device.

  • Switch - A toggle switch or a bi-stable switch.

  • Push-button - A momentary switch or a monostable switch.

  • Switch/push-button - It can be a switch or a push-button.

  • Double press - If the delay between the first and the second press on the switch/push-button is less than 500 ms, this is interpreted as a double press.

  • Gateway (GW) - A Z-Wave® gateway, also referred to as a Z-Wave® controller, Z-Wave® main controller, Z-Wave® primary controller, or Z-Wave® hub, etc., is a device that serves as a central hub for a Z-Wave® smart home network. The term “gateway” is used in this document.

  • S button - The Z-Wave® Service button, located on Z-Wave® devices and is used for various functions such as adding (inclusion), removing (exclusion), resetting the device to its factory default settings and to switch power output on/off (valid only for Wave Plugs). The term "S button" is used in this document.

  • Device - In this document, the term “Device” is used to refer to the Shelly Wave device that is a subject of this guide.

  • End device - Z-Wave end devices are nodes in a Z-Wave network that are not gateways, such as switches, door locks, sensors, etc.

  • Node ID - The Z-Wave Node ID is a unique identifier assigned at the adding (inclusion) to each device in a Z-Wave network, allowing the network to identify and communicate with this device.

  • HOME ID - The Z-Wave Home ID is a unique identifier assigned to each Z-Wave network and each device in that network. It distinguishes your Z-Wave network from other networks and ensures that your Z-Wave devices only communicate with devices in your own network.

  • Adding/Inclusion - The process of adding Z-Wave device to a Z-Wave network - gateway. The words included, added, etc. are used in this regard.

  • Removing/Exclusion - The process of removing Z-Wave device from a Z-Wave network - gateway. The words excluded, removed, etc. are used in this regard.

  • Factory reset - After Factory reset, all custom parameters and stored values (kWh, associations, routings, etc.) will return to their default state. The HOME ID and NODE ID assigned to the Device will be deleted. Use this reset procedure only when the gateway is missing or otherwise inoperable.

  • Normal mode - Is the state of the device which refers to the operational state of a device when it is functioning under regular conditions (switching on/off, dimming, etc.) either during active usage or while in standby mode but still powered.

  • SmartStart - SmartStart enabled devices can be added (included) to a Z-Wave network by scanning the Z-Wave QR code on the device with a Gateway that supports SmartStart inclusion. The SmartStart enabled device will be automatically added within 10 minutes of being switched on in the vicinity of the Z-Wave network.

  • MUST - MUST be implemented

  • OPTIONAL - implement it if time/budget allows

  • Associations - Associations are used for direct communication between the Device and other devices within your Z-Wave network without the need of the Z-Wave gateway.

  • Power cycle - Reboot the Device/power supply On/Off of the Device

  • Blind - Refers to any kind of window treatment, such as venetian blinds, roller blinds (screens), roller shutters, vertical window blinds, curtains, integral venetian blinds, pleated blinds, awnings, etc. Additionally, Wave Shutter can also control window motors, projector screens, or any type of bi-directional AC motor (Wave Shutter DC control any kind of bi-directional DC motor).

  • Power consumption (W) - refers to the rate at which energy is consumed or used by an electrical device or system. It is measured in watts (W).

  • Energy consumption (kWh) - refers to the total amount of electrical energy consumed by a device or system over a specific period of time. It is measured in kilowatt-hours (kWh).

  • Ordering code - The ordering code is the same as the Part number (PN). Where there is not enough space to write the Ordering code, abbreviation PN is used. The PN is written on the DSK label on each device.

Short description

The Device is a DIN-rail mountable, one-channel smart dimmer. It can work as a standalone or it can also be operated through Z-Wave® home automation. The Device can be accessed, controlled, and monitored remotely from any place where the User has internet connectivity. It is compatible with switches and push-buttons (default).

Basic Functions

Click to hide/unhide

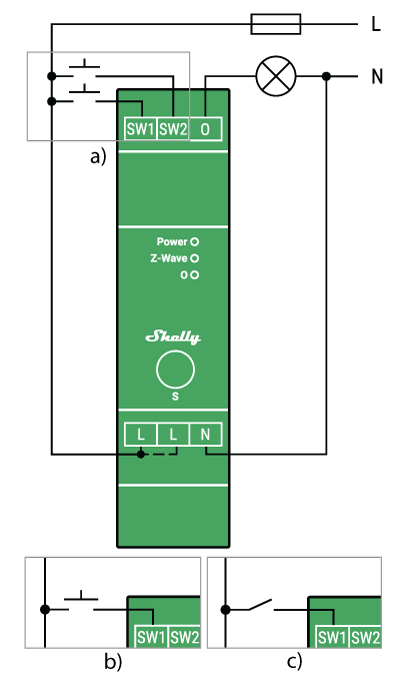

Dimmer - Switch/push-button connected to input terminal SW1 (SW2)

Input modes

  • Switch - allows making and breaking the connection in an electric circuit.

  • Button - “single (short) press ”, “double press ” and “press and hold (long press) ” are supported


Output types

  • Input set as “Switch”

    • Toggle - acts as a flip switch with one state for “ON” and one state for “OFF”

    • Edge - changes state on every change of the switch state

    • Detached - input is separated/not changing state of the output

  • Input set as “Button”

    • Momentary - every press toggles the state of the output: ON -> OFF or OFF -> ON

    • Detached - input is separated/not changing state of the output

    • One button dim mode - press to toggle, press and hold to dim up/down (changes direction on each press and hold)

    • Dual button dim mode - 2 inputs configuration. First button dims up and the second one dims down.


Minimum Brightness on Toggle On (par 129, 130)

Minimum brightness on toggle is preset with value that is device specific (for more information see the technical specification of the device). Minimum brightness on toggle can be changed by the user to the desired level. It is applied on toggle on (Off → On state change) when the Light brightness < min_brightness_on_toggle.

Note: the brightness should be lower then value defined by minimum ON value ref. to par129&130. With toggle ON the brightness will go to value defined by par129&130.

NOTE: par. 130 Valid only for Pro dimmer 2PM


Min/max brightness definition

Min/Max brightness reframes the range of the dimming signal to get more precise brightness control on the output.

Initially Min/max brightness is 0-100% which means the whole range will be used. Changing the values allows the users to use only the range that is suitable for their devices (led drivers, fans, etc.)

Once min/max brightness is set, any kind of calls to setting brightness would be remapped to the corresponding actual % internally, based on the range provided.

Button fade rate definition

Button fade rate controls how quickly the output brightness changes while holding (long press) the button(s).

Button fade rate is measured in %/s, for example, if 10% is set, on button press and hold the brightness will be changed from 0% to 100% for 10 seconds.

Single button dimming control

Single press (Short press)

Use to toggle On/Off - every press changes the state of the output.

A press is considered ‘single’ if the button is pressed and released within 0,5 second. (Short press)

  • Light state: On -> Light state: Off - Turns the lights off and keeps the current brightness. Default transition is applied. Press between transition stops the dimming

  • Light state: Off -> Light state: On. Press between transition stops the dimming

  • Current brightness: < Minimum brightness on toggle value - Turns the lights on with brightness that is set in Minimum brightness on toggle. Default value is device specific

  • Current brightness: > Minimum brightness on toggle value - Turns the light on with the brightness that was previously set

Double press

A press is considered ‘double’ if the button is pressed and released within 0,5 seconds, pressed and released again in less than 0,5 second and after that there is no other press.

  • Light state: On->Double press - Sets brightness 100%

  • Light state: Off->Double press- Turns the lights on with brightness 100%

Press and hold (Long press)

Use to dim up/down - every press changes the direction.

A press is considered ‘long’ if the button is pressed for more than 0,5s

  • Light state: On

  • Dim Up - starts dimming up from the current brightness with the specified fade rate.

  • Dim Down - starts dimming down from the current brightness with the specified fade rate. 1% is the lowest possible brightness that can be set when dimming down.

  • Light state: Off

When the light state is off, on press and hold the device starts to dim up. First the lights are turned on with 0% brightness and then are dimmed up with the specified fade rate.

Dual button dimming control

Single press (Short press)

SW1 dimming UP, press between dimming STOP, next press full ON (with SW1 you can’t turn OFF or dimming DOWN)

SW2 dimming DOWN, press between dimming STOP, next press OFF (with SW2 you can’t turn ON or dimming UP)

A press is considered ‘single’ if the button is pressed and released within 0,5 seconds

  • Light state: On -> Light state: Off - Turns the lights off and keeps the current brightness. Default transition is used. Only by SW2!

  • Light state: Off -> Light state: On. Only by SW1!

  • Current brightness: 0% - Turns the lights on with brightness that is set in Minimum brightness on toggle. Default value is device specific, for more details see the corresponding technical specification. Only by SW1!

  • Current brightness: >0% - Turns the lights on with the brightness that was previously set. If an action/night mode is active or minimum brightness on toggle is set, the corresponding brightness is applied (if needed). Default transition is used. Only by SW1!

In dual button dimming mode Double press is not working.

Press and hold (Long press)

Use to dim up/down - SW1 dimming up and SW2 dimming down.

A press is considered ‘long’ if the button is pressed more than 0,5 seconds

● Light state: On -> Dim Up - starts dimming up from the current brightness with the specified fade rate until released (SW1).

● Light state: On -> Dim Down - starts dimming down from the current brightness with the specified fade rate until released. 1% is the lowest possible brightness that can be set when dimming down (SW2).

● Light state: Off -> Dim Up - starts dimming up from the current brightness with the specified fade rate until released (SW1).

● Light state: Off -> Dim Down - nothing. No change in the brightness also.

Transition Duration

Implicit (default) transition

Implicit (default) transition is applied every time the brightness of the lights, controlled by the device, is changed.

  • When the lights are turned on or off, transition time (in seconds) is the time to change from 0% to 100% of brightness on toggle On and from 100% to 0% brightness on toggle Off. ref. Parameter No. 124 - Dimming time (soft on/off)

  • When the lights are on, transition time (in seconds) is the time between change from current brightness level to desired brightness level. Note that if desired brightness level is 0%, this is considered “light off” (example: transition: 5 sec, light: on, current brightness: 50%. If the brightness is changed to 0%, transition time is 2.5 sec. If the brightness is changed to 1%, transition time is 5sec).

Implicit transition is preset with a value of 3 seconds and can be customized by the user with value between 0 and 5 seconds.

Calibration

1. Calibration with the gateway

  1. Add the Device to the Z-Wave network according to the instructions for inclusion.

  2. Set the Parameter No. 78 (Calibration) value to 1.

  3. The Device performs the calibration process

  4. Check the Parameter No. 78 to see if the calibration was successfully executed (value 2).

  5. Make sure that the yellow LED is not blinking.

2. Calibration with the S button

  1. Enter the Setting mode by pressing the S button for less than 0,5 s (short press).

  2. Keep pressing the S button until the calibration is selected, indicated by the yellow LED color.

  3. Start the calibration by pressing the S button for more than 2 s.

  4. Make sure that the yellow LED is not blinking.

Main applications

  • Residential

  • MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)…

  • Light commercial (small office buildings, small retail/restaurant/gas station, etc.)…

  • Industrial (factories, power plants, water processing, refineries, etc.)…

  • Government/municipal

  • University/college

Integrations

Shelly Wave devices are developed on the world's leading technology for smart homes – Z-Wave.

This means Shelly Wave works with all certified gateways supporting Z-Wave communication protocol.

To make sure the functions of Shelly Wave products are supported on your gateway, we are regularly executing compatibility tests of our devices with different Z-Wave gateways.

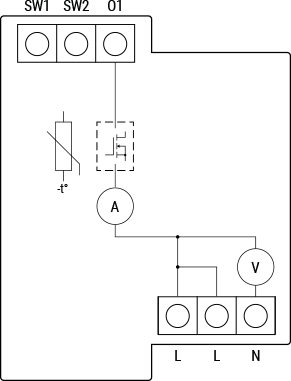

Simplified internal schematics

Device electrical interfaces

Inputs

  • 2 switch/push-button inputs on screw terminal


  • 3 power supply inputs on screw terminals: N, 2 L

Outputs

  • 1 output

Connectivity

Z-Wave - Unsecure, S0 Security, S2 Unauthenticated Security, S2 Authenticated Security

Safety features

Protection

Overheat Protection

Click to expand...

Device has internal Overheat protection. If the temperature exceeds predefined values 80°C for more than 5s, the Device will:

  • switch off its own output

  • send the Notification Report to the gateway (Overheat detected)

  • the LED lights react as specified above (check LED blinking mode for Overheat detected)

NOTE: The Overheat protection is always active and cannot be disabled.

Additional description above under chapter Notification for Overheat detected.

Overcurrent Protection

Click here to expand...

Device has internal Overcurrent protection. If the current exceeds 0,9A+15% (Max switching current +10%) for more than 5s, the Device will:

  • switch off its own output

  • sends the Notification Report to the gateway (Overcurrent detected)

  • the LED lights react as specified above (check LED blinking mode for Overcurrent detected)

NOTE: The Over-current protection is always active and cannot be disabled.

Additional description above under chapter Notification for Over-current detected.

Overvoltage Protection

Click here to expand...

Device has internal Overvoltage protection. This is valid for standard power supply voltage 230 V AC. If the voltage exceeds 240 V AC+15% (278 V AC) for more than 5s, the Device will:

  • switch off its own output

  • sends the Notification Report to the Gateway (Overvoltage detected)

  • the LED lights react as specified above (check LED blinking mode for Overvoltage detected)

NOTE: The Over-voltage protection is always active and cannot be disabled.

Additional description above under chapter Notification for Over-voltage detected.

Supported load types

  • Dimmable LED lamps: up to 200W


  • Incandescent bulbs: up to 200W


  • Halogen lamps: up to 200W


  • Iron-core transformer with low-voltage incandescent lamps: up to 200VA


  • Dimmable electronic transformers: 200W

User interface

S button and operating modes

  • Settings mode:

Is required to start the desired procedure, for example: adding (inclusion), removing (exclusion), factory reset, etc. It has a limited operating time. After completing the procedure in Setting mode, the Device automatically switches to Normal mode.

  • Entering Setting mode:

    • Press and hold the S button on the Device until the LED turns solid blue.

    • An additional quick press on the S button changes the menu in an infinite loop.

    • The Menu LED status has a timeout of 10s before entering again into Normal mode.


S button’s functions

  • Manually adding the Device to a Z-Wave network

  • Manually removing the Device from a Z-Wave network

  • Factory Reset the Device

  • Calibration

LED Signalisation

Click to hide/unhide

General rules

  • Switching between Normal and Settings mode is done by press and hold the S button.

  • Solid LED means that you are in the Settings mode (this is not valid for Plugs). Once in settings mode, switch to normal mode goes automatically after 10s.

  • If the LED is not in Alarm mode, it will turn off after a timeout of 30min. Pressing the S button or power cycling the Device will wake the LED for 30min.

Normal mode LED status: Normal mode is defined by stable device function that can remain for an infinite time.


LED type: RGB dimmable

Normal mode

Removed/Excluded not calibrated

The LED will be blinking blue and yellow in Mode 1 for 30min after every power cycle and 10min after S button pressed.


Added/Included not calibrated

The LED will be blinking green and yellow in Mode 1 for 10min after every power cycle and 10min after S button pressed.

Removed/Excluded & calibrated

The LED will be blinking blue and green in Mode 1 for 30min after every power cycle and 10min after S button pressed.

Added/Included & calibrated

The LED will be blinking green in Mode 1 for 30min after every power cycle and 10min after S button pressed.



Settings in progress

Factory reset and reboot

During factory reset, the LED will turn solid green for approx. 1sec, then the blue and red LED will be blinking 0,1s On / 0,1s Off for about 2sec.


Adding / Removing

During adding or removing, the LED will be blinking blue in Mode 2.



OTA firmware updating

During the OTA update, the LED will be blinking blue and red in Mode 2.


Checking power supply 230 V AC frequency or 24 V DC voltage

During checking the power supply, the LED will be blinking blue and red in Mode 5.


Load calibration

During the calibration, the LED will be blinking yellow in Mode 2.

Settings mode with S button

Adding / Removing menu selected

When the menu is selected the LED will be on blue, for maximum of 10 seconds.


Adding / Removing menu - while pressing S- button - Add/Remove process selected

When the menu is executing the LED will be blinking blue in Mode 3.


Factory reset menu selected

When the menu is selected the LED will be on red, for maximum of 10 seconds.


Factory reset - while pressing S - button - Factory reset process selected

When the menu is executing the LED will be blinking red in Mode 3.


Calibration menu selected

When the menu is selected the LED will be on yellow, for maximum of 10 seconds.


Calibration - while pressing S- button - Calibration process selected

When the menu is executing the LED will be blinking yellow in Mode 3.

Alarm Mode

Overcurrent detected O

The LED will be blinking red in Mode 4

Mode 4 / 1x LED 0,2s On / 0,2s Off + 2s Off repeating sequence


Overheat detected

The LED will be blinking red in Mode 4

Mode 4 / 2x (LED 0,2s On / 0,2s Off) + 2s Off repeating sequence


Overvoltage detected

The LED will be blinking red in Mode 4

Mode 4 / 7x (LED 0,2s On / 0,2s Off) + 2s Off repeating sequence

LED blinking modes

Click to hide/unhide

LED blinking modes

Mode 1

0,5s On/2s Off

Mode 2

0,5s On/0,5s Off

Mode 3

0,1s On/0,1s Off

Mode 4

(1x to 6x - 0,2s On/0,2s Off) + 2s Off

Mode 5

0,2s On blue/0,2s On red

Specifications

Power supply

110 - 240 V AC, 50/60 Hz

Power consumption

< 0.3 W

External protection

10 A, tripping characteristic B or C,
6 kA interrupting rating,
Energy limiting class 3

Dimming type

Trailing edge

Power measurement [W]

Yes

Max. output power

200 W

Overheating protection

Yes

Overload protection

Yes

Overvoltage protection

Yes

Distance

Up to 40 m indoors (131 ft.) (depends on local condition)

Z-Wave® repeater:

Yes

CPU

Z-Wave® S800

Z-Wave® frequency bands

868.4 MHz

Maximum radio frequency power transmitted in frequency band(s)

< 25 mW

Size (H x W x D)

94x19x69 ± 0.5 mm / 3.70x0.75x2.71 ± 0.02 in

Weight

75 g / 2.7 oz

Mounting

DIN rail

Screw terminals max. torque

0.4 Nm / 3.54 lbin

Conductor cross section

0.5 to 2.5 mm² / 20 to 14 AWG (green connector)
0.5 to 1.5 mm² / 20 to 16 AWG (white connectors) (solid, stranded, and bootlace ferrules)

Conductor stripped length

6 to 7 mm / 0.24 to 0.28 in (green connector)
5 to 6 mm / 0.20 to 0.24 in (white connectors)

Shell material

Plastic

Color

Lime

Ambient temperature

-20°C to 40°C / -5°F to 105°F

Humidity

30% to 70% RH

Max. altitude

2000 m / 6562 ft.

Basic wiring diagram


Fig. 1

Legend

Device terminals:

  • N: Neutral terminal

  • L: Live terminal (110-240 V AC)

  • SW (SW1): Switch/push-button input terminal (controlling O (O1))

  • SW2: Switch/push-button input terminal

  • O (O1): Load circuit (1) output terminal
    Wires:

  • N: Neutral wire

  • L: Live wire (110-240 V AC)
    Button:

  • S: S button

About Z-Wave®

Adding and removing the Device to a Z-Wave® network

Click to hide/unhide

Adding the Device to a Z-Wave® network (inclusion)


Note! In case of Security 2 (S2) adding (inclusion), a dialog will appear asking you to enter the corresponding PIN Code (5 underlined digits) that are written on the Z-Wave® DSK label on the side of the Device and on the Z-Wave® DSK label inserted in the packaging.
IMPORTANT: The PIN Code must not be lost.


SmartStart adding (inclusion)

SmartStart enabled products can be added into a Z-Wave® network by scanning the Z-Wave® QR Code present on the Device with a gateway providing SmartStart inclusion. No further action is required, and the SmartStart device will be added automatically within 10 minutes of being switched on in the network vicinity.

  1. With the gateway application scan the QR code on the Device label and add the Security 2 (S2) Device Specific Key (DSK) to the provisioning list in the gateway.

  2. Connect the Device to a power supply.

  3. Check if the blue LED is blinking in Mode 1. If so, the Device is not added to a Z-Wave® network.

  4. Adding will be initiated automatically within a few seconds after connecting the Device to a power supply, and the Device will be added to a Z-Wave® network automatically.

  5. The blue LED will be blinking in Mode 2 during the adding process.

  6. The green LED will be blinking in Mode 1 if the Device is successfully added to a Z-Wave® network.

Adding (inclusion) with the S button
  1. Connect the Device to a power supply.

  2. Check if the blue LED is blinking in Mode 1. If so, the Device is not added to a Z-Wave® network.

  3. Enable add/remove mode on the gateway.

  4. To enter the Setting mode, press and hold the S button on the Device until the LED turns solid blue.

  5. Release and then press and hold (> 2s) the S button on the Device until the blue LED starts blinking in Mode 3. Releasing the S button will start the Learn mode.

  6. The blue LED will be blinking in Mode 2 during the adding process.

  7. The green LED will be blinking in Mode 1 if the Device is successfully added to a Z-Wave® network.

Note! In Setting mode, the Device has a timeout of 10s before entering again into Normal mode.


Adding (inclusion) with a switch/push-button
  1. Connect the Device to a power supply.

  2. Check if the blue LED is blinking in Mode 1. If so, the Device is not added to a Z-Wave® network.

  3. Enable add/remove mode on the gateway.

  4. Toggle the switch/push-button connected to any of the SW terminals (SW, SW1, SW2, etc.) 3 times within 3 seconds (this procedure puts the Device in Learn mode*). The Device must receive on/off signal 3 times, which means pressing the momentary switch 3 times, or toggling the switch on and off 3 times.

  5. The blue LED will be blinking in Mode 2 during the adding process.

  6. The green LED will be blinking in Mode 1 if the Device is successfully added to a Z-Wave® network.

*Learn mode - a state that allows the Device to receive network information from the gateway.

Removing the Device from a Z-Wave® network (exclusion)

Note! The Device will be removed from your Z-Wave® network, but any custom configuration parameters will not be erased.


Removing (exclusion) with the S button
  1. Connect the Device to a power supply.

  2. Check if the green LED is blinking in Mode 1. If so, the Device is added to a Z-Wave® network.

  3. Enable add/remove mode on the gateway.

  4. To enter the Setting mode, press and hold the S button on the Device until the LED turns solid blue.

  5. Release and then press and hold (> 2s) the S button on the Device until the blue LED starts blinking in Mode 3. Releasing the S button will start the Learn mode.

  6. The blue LED will be blinking in Mode 2 during the removing process.

  7. The blue LED will be blinking in Mode 1 if the Device is successfully removed from a Z-Wave® network.

Note! In Setting mode, the Device has a timeout of 10s before entering again into Normal mode.


Removing (exclusion) with a switch/push-button
  1. Connect the Device to a power supply.

  2. Check if the green LED is blinking in Mode 1. If so, the Device is added to a Z-Wave® network.

  3. Enable add/remove mode on the gateway.

  4. Toggle the switch/push-button connected to any of the SW terminals (SW, SW1, SW2,…) 3 times within 3 seconds (this procedure puts the Device in Learn mode). The Device must receive on/off signal 3 times, which means pressing the momentary switch 3 times, or toggling the switch on and off 3 times.

  5. The blue LED will be blinking in Mode 2 during the removing process.

  6. The blue LED will be blinking in Mode 1 if the Device is successfully removed from a Z-Wave® network.

Factory reset

Factory reset general

After Factory reset, all custom parameters and stored values (kWh, associations, routings, etc.) will return to their default state. HOME ID and NODE ID assigned to the Device will be deleted. Use this reset procedure only when the gateway is missing or otherwise inoperable.


Factory reset with the S button

Note! Factory reset with the S button is possible anytime.

  1. To enter the Setting mode, press and hold the S button on the Device until the LED turns solid blue.

  2. Press the S button multiple times until the LED turns solid red.

  3. Press and hold (> 2s) S button on the Device until the red LED starts blinking in Mode 3. Releasing the S button will start the factory reset.

  4. During factory reset, the LED will turn solid green for about 1s, then the blue and red LED will start blinking in Mode 3 for approx. 2s.

  5. The blue LED will be blinking in Mode 1 if the Factory reset is successful.


Factory reset with a switch/push-button

Note! Factory reset with a switch/push-button is only possible within the first minute after the Device is connected to a power supply.

  1. Connect the Device to a power supply.

  2. Toggle the switch/push-button connected to any of the SW terminals (SW, SW1, SW2,…) 5 times within 3 seconds. The Device must receive on/off signal 5 times, which means pressing the push-button 5 times, or toggling the switch on and off 5 times.

  3. During factory reset, the LED will turn solid green for about 1s, then the blue and red LED will start blinking in Mode 3 for approx. 2s.

  4. The blue LED will be blinking in Mode 1 if the Factory reset is successful.


Remote factory reset with parameter with a gateway

Factory reset can be done remotely with the settings in Parameter No. 120.

Z-Wave® Security and Device Specific Key (DSK)

Click to hide/unhide

Z-Wave® Security 2 and Device Specific Key (DSK)

The Device supports the latest Security 2 (S2) feature. S2 is handled by the strong AES 128 Encryption protocol, which means that the S2 makes Z-Wave® the most secure IoT (Internet of Things) security platform out there. To fully utilize the product and its Security 2 feature, a Security 2-enabled Z-Wave® gateway must be used.

Authenticated Control

  • Out-Of-Band DSK for adding (inclusion)

  • May be used by most implementations

The Device also supports Security 2 Authenticated, Unauthenticated, and Unsecure adding (inclusion).

Note! When adding the Device to a Z-Wave® network with a gateway supporting Security 2 (S2), the PIN Code of the Z-Wave® Device Specific Key (DSK) is required. You can find it on the label on the side of the Device and a copy is inserted in the packaging, which must not be lost. Do not remove the Z-Wave® DSK label from the Device. As a backup measure, use the label in the packaging.

The first five digits of the key are highlighted or underlined to help the user identify the PIN Code part of the DSK text. The DSK is additionally represented with a QR Code as shown on the image.

Z-Wave® DSK label and QR code (example)

A joining node requesting to join the S2 Access Control Class or the S2 Authenticated Class will obfuscate its Public Key by setting the bytes 1..2 to zeros (0x00) before transferring its key via RF.

The DSK may be used for out-of-band (OOB) authentication.

  • The including gateway may use a QR code scanning device to read the entire DSK of the joining device and match it with the obfuscated public key received via RF from the joining device.

ⓘ NOTE: This Device must be used in conjunction with a Security Enabled Z-Wave® gateway to fully utilize all implemented functions.

ⓘ NOTE: This Device is a security enabled Z-Wave Plus® product that can use encrypted Z-Wave Plus® messages to communicate to other security enabled Z-Wave Plus® products.

ⓘ NOTE: DSK access via UI gateways, which implement the S2 and SmartStart security feature, display an input dialog box, with a full or partial DSK key. Most of them display a partial DSK (they do not show the PIN code) when the Device is added with the S2-Authenticated security scheme. When added with the S2-Unauthenticated, some gateways show the complete DSK while others perform the complete adding (inclusion) process without prompting the user with the dialogue.

Z-Wave® Parameters

Click to hide/unhide

Parameter No. 1 - SW (SW1) Switch type

This parameter defines how the Device should treat the switch (which type) connected to the SW (SW1) terminal.

Value size: 1 Byte

Default value: 0

Values & descriptions:

  • 0 - momentary switch (push button),

  • 1 - toggle switch (contact closed - ON / contact opened - OFF),

  • 2 - toggle switch (Device changes status when switch changes status)

Parameter No. 2 - SW2 Switch type

This parameter defines how the Device should treat the switch (which type) connected to the SW2 terminal.

Value size: 1 Byte

Default value: 0

Values & descriptions:

  • 0 - momentary switch (push button),

  • 1 - toggle switch (contact closed - ON / contact opened - OFF),

  • 2 - toggle switch (device changes status when switch changes status)

Parameter not operable when PAR 131 = 1

Parameter No. 7 - SW (SW1) detach mode

In this mode the input SW (SW1) is separated/not changing the state of the output.

Value size: 1 Byte

Default value: 0

Values & descriptions:

  • 0 - normal mode

  • 1 - detached mode

Parameter No. 8 - SW2 detach mode

In this mode the input SW 2 is separated/not changing the state of the output.

Value size: 1 Byte

Default value: 1

Values & descriptions:

  • 0 - normal mode

  • 1 - detached mode

If SW2 is set to “normal mode - not detached”, Par. n. 131 must be set to dual mode “1 - Active”)

Parameter No. 17 - Restore the O (O1) state after a power failure

This parameter determines if the on/off status is saved and restored for the load connected to O (O1) after a power failure.

Values size: 1 Byte

Default value: 0

Values & descriptions:

  • 0 - Device saves last on/off status and restores it after a power failure

  • 1 - Device does not save on/off status and does not restore it after a power failure, it remains off

Parameter No. 19 - O (O1) Auto OFF with timer

If the load O (O1) is ON, you can schedule it to turn OFF automatically after the period of time defined in this parameter. The timer resets to zero each time the Device receives an ON command, either remotely (from the gateway or associated device) or locally from the switch.

Values size: 2 Byte

Default value: 0

Values & their descriptions:

  • 0 - Auto OFF Disabled

  • 1 - 32535 = 1 - 32535 seconds or milliseconds – see Parameter no. 25. Set timer units to s or ms for O (O1) resolution 100ms

Parameter No. 20 - O (O1) Auto ON with timer

If the load O (O1) is OFF, you can schedule it to turn ON automatically after the period of time defined in this parameter. The timer resets to zero each time the Device receives an OFF command, either remotely (from the gateway or associated device) or locally from the switch.

Values size: 2 Byte

Default value: 0

Values & their descriptions:

  • 0 - Auto ON Disabled

  • 1 - 32535 = 1 - 32535 seconds or milliseconds – see Parameter no. 25. Set timer units to s or ms for O (O1) resolution 100ms

Parameter No. 25 - Set timer units to s or ms for O (O1)

Set the timer units to seconds or milliseconds. Choose if you want to set the timer in seconds or milliseconds in Parameters No. 19, 20.

Values size: 1 Byte

Default value: 0

Values & descriptions:

  • 0 – timer set in seconds

  • 1 – timer set in milliseconds

Parameter No. 36 - O (O1) Power report on change - percentage

This parameter determines the minimum change in consumed power that will result in sending a new report to the gateway.

Values size: 1 Byte

Default value: 10

Values & descriptions:

  • 0 - reports are disabled

  • 1-100 (1-100%) - change in power

NOTE: Regardless of the power consumption change in percentage, the report will not be sent more frequently than defined by Parameter No. 39.

Parameter No. 39 - Minimum time between reports (O) O1

This parameter determines the minimum time that must elapse before a new power report on O (O1) is sent to the gateway.

Values size: 1 Byte

Default value: 30

Values & descriptions:

  • 0 - reports are disabled

  • 1-120 (1-120s) - report interval

NOTE: This Parameter is in relation to Parameter No. 36.

NOTE: Setting the value to less than 30s can cause the Z-Wave network congestion state (slow Device response and decreased network stability).

Parameter No. 78 - Forced Dimmer calibration O (O1)

By setting this parameter to value 1 the Device will start executing force calibration procedure for channel O (O1). The parameter also reports the calibration status by sending the get parameter value command.

Values size: 1 Byte

Default value: 3 (after factory reset)

Values & descriptions:

  • 1 - start calibration

  • 2 - device is calibrated (read only)

  • 3 - device is not calibrated (read only)

  • 4 - calibration error (read only)

NOTE: Check chapter Functionality with calibration details.

NOTE: During the calibration procedure the yellow LED is blinking.

Parameter No. 117 - Remote Device reboot

This parameter enable restarting or rebooting the Device without physical intervention. Use this parameter only for troubleshooting scope. After device reboot the parameter value will be set to default.

Values size: 1 Byte

Default value: 0

Values & descriptions:

  • 0 - function inactive

  • 1 - Remote device reboot

Parameter No. 121 - MAX dimming value O (O1)

The value set in this parameter determines the maximum dimming value (the highest value which can be set on the device, when, for example, dimming lights with wall switch or slider in the GUI (Gateway - hub)).

Values size: 1 Byte

Default value 99 = 99% (Maximum dimming value)

Values & descriptions:

  • 1 - 99% = 2% - 99%, step is 1%

NOTE: The maximum level may not be lower than the minimum level!

NOTE: The output level is automatically adjusted according to changed value.

Parameter No. 123 - Min. dimming value dim specific par. O (O1)

The value set in this parameter determines the minimum dimming value (the lowest value which can be set on the device, when, for example, dimming lights with wall switch or slider in the GUI (Gateway - hub)).

Values size: 1 Byte

Default value 15 = 15 % (minimum dimming value)

Values & descriptions:

  • 0 - 98 = 1 % - 98 %, step is 1 %. Minimum dimming value is set by entering a value.

NOTE: The maximum level may not be higher than the minimum level!

NOTE: The output level is automatically adjusted according to changed value.

Parameter No. 125 - Dimming time (soft on/off) dim specific par. O (O1) (Dimming time short click O (O1))

Choose the time during which the device will move between the min. and max. dimming values by a short press of the momentary switch connected to input terminal.

Values size: 1 Byte

Default value 3 = 3 s

Values & descriptions:

  • 1 - 10 = 1 seconds - 10 seconds, step is 1 second

Parameter No. 127 - Fade rate O (O1) (Dimming time when key hold)

Choose the time during which the Dimmer will move between the min. and max. dimming values during a continuous press of the momentary switch connected to terminal, by an associated device.

Values size: 1 Byte

Default value 3 = 10% per second

Values & descriptions:

  • 1 = 5% / sec

  • 2 = 7% / sec

  • 3 = 10% /sec (default)

  • 4 = 15% / sec

  • 5 = 20% / sec

Parameter No. 129 - Minimum brightens on toggle O (O1) dim specific par.

Minimum brightness on toggle can be changed by the user to the desired level. It is applied on toggle on (Off → On state change) when the Light brightness < min_brightness_on_toggle.

Values size: 1 Byte

Default value 15

Values & descriptions:

  • 1 - 99 = 2 % - 99 %, step is 1 %.

Parameter No. 131 - SW1 & SW2 Dual Button Mode

SW1 & SW2 Dual button (only push button)

Values size: 1 Byte

Default value 0

Values & descriptions:

  • 0 - Inactive

  • 1 - Active


Parameter No. 201 - Serial Number 1

This parameter contains a part of device’s serial number.

The parameter is Read-Only and cannot be changed.
The parameter is Advanced and may be hidden under the Advanced tag.

Values size: 4 Byte

Default value: Device specific

Values & descriptions:

· 0x00000000 - 0x7FFFFFFF


Parameter No. 202 - Serial Number 2

This parameter contains a part of device’s serial number.

The parameter is Read-Only and cannot be changed.
The parameter is Advanced and may be hidden under the Advanced tag.

Values size: 4 Byte

Default value: Device specific

Values & descriptions:

· 0x00000000 - 0x7FFFFFFF


Parameter No. 203 - Serial Number 3

This parameter contains a part of device’s serial number.

The parameter is Read-Only and cannot be changed.
The parameter is Advanced and may be hidden under the Advanced tag.

Values size: 4 Byte

Default value: Device specific

Values & descriptions:

· 0x00000000 - 0x7FFFFFFF

Z-Wave® Command Classes

Click to hide/unhide
  1. ASSOCIATION_V2 [S0, S2]*

  2. ASSOCIATION_GRP_INFO_V3 [S0, S2]*

  3. BASIC_V2 [S0, S2]*

  4. SWITCH_BINARY_V2 [S0, S2]*

  5. CENTRAL_SCENE_V3 [S0, S2]*

  6. CONFIGURATION_V4 [S0, S2]*

  7. DEVICE_RESET_LOCALLY_V1 [S0, S2]*

  8. FIRMWARE_UPDATE_MD_V5 [S0, S2]*

  9. INDICATOR_V3 [S0, S2]*

  10. MANUFACTURER_SPECIFIC_V2 [S0, S2]*

  11. METER_V6 [S0, S2]*

  12. MULTI_CHANNEL_V4 [S0, S2]*

  13. MULTI_CHANNEL_ASSOCIATION_V3 [S0, S2]*

  14. SWITCH_MULTILEVEL_V4 [S0, S2]*

  15. NOTIFICATION_V8 [S0, S2]*

  16. POWERLEVEL_V1 [S0, S2]*

  17. SECURITY_V1

  18. SECURITY_2_V1

  19. SUPERVISION_V1

  20. TRANSPORT_SERVICE_V2

  21. VERSION_V3 [S0, S2]*

  22. ZWAVEPLUS_INFO_V2

EndPoint 1

  1. ASSOCIATION_V2 [S0, S2]*

  2. ASSOCIATION_GRP_INFO_V3 [S0, S2]*

  3. BASIC_V2 [S0, S2]*

  4. METER_V6 [S0, S2]*

  5. MULTI_CHANNEL_ASSOCIATION_V3 [S0, S2]*

  6. SWITCH_MULTILEVEL_V4 [S0, S2]*

  7. NOTIFICATION_V8 [S0, S2]*

  8. SUPERVISION_V1

  9. ZWAVEPLUS_INFO_V2

EndPoint 2

  1. ASSOCIATION_V2 [S0, S2]*

  2. ASSOCIATION_GRP_INFO_V3 [S0, S2]*

  3. BASIC_V2 [S0, S2]*

  4. SWITCH_BINARY_V2 [S0, S2]*

  5. MULTI_CHANNEL_ASSOCIATION_V3 [S0, S2]*

  6. SUPERVISION_V1

  7. ZWAVEPLUS_INFO_V2

EndPoint 3

  1. ASSOCIATION_V2 [S0, S2]*

  2. ASSOCIATION_GRP_INFO_V3 [S0, S2]*

  3. BASIC_V2 [S0, S2]*

  4. SWITCH_BINARY_V2 [S0, S2]*

  5. MULTI_CHANNEL_ASSOCIATION_V3 [S0, S2]*

  6. SUPERVISION_V1

  7. ZWAVEPLUS_INFO_V2

[S2]* Security S2 Command Class

NOTE: MAPPING OF COMMAND_CLASS_BASIC

Supporting Command Class Basic

COMMAND_CLASS_BASIC is mapped into COMMAND_CLASS_SWITCH_BINARY, for enabling Switch (O) O1, O2,.. control:

Switch (O) O1, O2,.. will be turned ON or OFF, after receiving the BASIC_SET command:

Basic Command received

Mapped Command (binary Switch)

Basic Set (0xFF)

Switch binary Switch (0xFF)

Basic Set (0x00)

Switch binary Switch (0x00)

Basic GET

Basic Report (Current Value, Target Value)

Supporting Command Class Indicator

The Device supports the Command Class Indicator V3 (ID 0x50). When the Device receives an indicator set, the LED blinks according to the received indicator set.

Refer to LED Signalization chapter.

Supporting Meter Command Class

The product supports the meter command class and KWh is the default scale report send when the scale type is not present in the received Get.

Supported Scale Name

Scale Value

Watt

2

KWh

0

Z-Wave® Notifications Command Class

Click to hide/unhide

Overheat detected

Comment

Overheat detected

Z-Wave Notification Type Name

Heat Alarm

Z-Wave Notification type - Value

0x04

Z-Wave Notification type - Event

State

Z-Wave Notification Name

Overheat detected

Z-Wave Notification Name - Value

0x02

Z-Wave Notification Name - Version

V2

LED signalization

Check LED signalization table

Device reaction - Switch OFF all outputs and send notification

Yes

Action to restore - power cycle

Yes

Action to restore - short press on S button

Yes

Action to restore - press any switch-push button connected to any SW (SW, SW1, SW2, …) terminal

Yes

Over-current detected O

Comment

Over-current detected O (O1)

Z-Wave Notification Type Name

Power management

Z-Wave Notification type - Value

0x08

Z-Wave Notification type - Event

State

Z-Wave Notification Name

Over-current detected

Z-Wave Notification Name - Value

0x06

Z-Wave Notification Name - Version

V3

LED signalization

Check LED signalization table

Device reaction - Switch OFF the output O (O1) and send a notification

Yes

Action to restore - power cycle

Yes

Action to restore - short press on S button

Yes

Action to restore - press any switch-push button connected to any SW (SW, SW1, SW2, …) terminal

Yes

Over-voltage detected

Comment

Over-voltage detected

Z-Wave Notification Type Name

Power management

Z-Wave Notification type - Value

0x08

Z-Wave Notification type - Event

State

Z-Wave Notification Name

Over-voltage detected

Z-Wave Notification Name - Value

0x07

Z-Wave Notification Name - Version

V3

LED signalization

Check LED signalization table

Device reaction - Switch OFF all outputs and send notification

Yes

Action to restore - power cycle

Yes

Action to restore - short press on S button

Yes

Action to restore - press any switch-push button connected to any SW (SW, SW1, SW2, …) terminal

Yes

Z-Wave® Associations

Click to hide/unhide

Associations are used for direct communication between the Device and other devices within your Z-Wave network without the need of the Z-Wave gateway.
Max. number of associated devices per group is 9. This value is fixed and cannot be configured.
Each association group supports the association of up to 9 devices (nodes). To avoid network delays, we recommend limiting the number of associated devices to no more than 5 per group. "Lifeline group" is reserved for controlling devices, such as Gateways and remote controllers, or devices who can interpret the reports sent.Association group 1 – "Lifeline group" sends to the controlling device it's command class notifications and or command class reports when said command classes are triggered. Max. 9 nodes are allowed:

Root device


Root device - Association Group 1 - Lifeline

  1. INDICATOR_REPORT : LED status

  2. DEVICE_RESET_LOCALLY_NOTIFICATION : triggered upon request

  3. SWITCH_BINARY_REPORT : status change report on SW (SW1)

  4. SWITCH_BINARY_REPORT : status change report on SW2

  5. SWITCH MULTILEVEL REPORT: triggered upon request or according to Configuration parameters 36 and 39 (note that this command class is active only in dimmer mode for O (O1))

  6. NOTIFICATION_REPORT : triggered on Overheat

  7. NOTIFICATION_REPORT : triggered on Overcurrent detected O (O1)

  8. NOTIFICATION_REPORT : triggered on Overvoltage detected

  9. METER_REPORT : triggered by load power consumption connected to output O (O1) (according to the settings of Parameters No. 36 and 39)

  10. CENTRAL_SCENE_NOTIFICATION

  11. CENTRAL_SCENE_CONFIGURATION_REPORT

Root device - Association Group 4

Association Group 4
Allowed nodes: 9
It is assigned to switch connected to the SW1 terminal (uses Basic command class).
Triggered by SW1. Supports the following command classes:

  • BASIC_SET : set On / Off state at the associated device

Root device - Association Group 5

Association Group 5
Allowed nodes: 9
It is assigned to switch connected to the SW1 terminal (uses Switch Multilevel command class). Triggered by SW1.

It is recommended to use push buttons for this association. Supports the following command classes:

  • SWITCH_MULTILEVEL_START_LEVEL_CHANGE : initiate a transition to a new level (increase or decrease light intensity in case of dimmer, or move shutter up or down, …)

  • SWITCH_MULTILEVEL_STOP_LEVEL_CHANGE : stop an ongoing transition (stop increase or decrease light intensity in case of dimmer, or stop moving shutter up or down, …)

Root device - Association Group 6

Association Group 6
Allowed nodes: 9
It is assigned to switch connected to the SW2 terminal (uses Basic command class).
Triggered by SW2. Supports the following command classes:

  • BASIC_SET : set On / Off state at the associated device

Root device - Association Group 7

Association Group 7
Allowed nodes: 9
It is assigned to switch connected to the SW2 terminal (uses Switch Multilevel command class). Triggered by SW2.

It is recommended to use push buttons for this association. Supports the following command classes:

  • SWITCH_MULTILEVEL_START_LEVEL_CHANGE : initiate a transition to a new level (increase or decrease light intensity in case of dimmer, or move shutter up or down, …)

  • SWITCH_MULTILEVEL_STOP_LEVEL_CHANGE : stop an ongoing transition (stop increase or decrease light intensity in case of dimmer, or stop moving shutter up or down, …)

Endpoint 1

Endpoint 1 - Association Group 1 - Lifeline

Association group 1 – "Lifeline group" sends to the controlling device it's command class notifications and or command class reports when said command classes are triggered. Nodes allowed: 0:

​SWITCH MULTILEVEL REPORT: triggered upon request or according to Configuration parameters 36 and 39 (note that this command class is active only in dimmer mode for O (O1))

NOTIFICATION_REPORT : triggered on Overheat

NOTIFICATION_REPORT : triggered on Overcurrent detected O (O1)

NOTIFICATION_REPORT : triggered on Overvoltage detected

METER_REPORT : triggered by load power consumption connected to output O (O1) (according to the settings of Parameters No. 36 and 39)

Endpoint 2

Endpoint 2 - Association Group 1 - Lifeline

Association group 1 – "Lifeline group" sends to the controlling device it's command class notifications and or command class reports when said command classes are triggered. Nodes allowed: 0:

SWITCH_BINARY_REPORT : status change report on SW (SW1)

Association Group 2
Allowed nodes: 9
It is assigned to switch connected to the SW (SW1) terminal (uses Basic command class).
Triggered by SW (SW1). The device sends according to the state of SW (SW1) (switch or push-button) the command BASIC_SET ON or BASIC_SET OFF to the associated device. This command is reflected to the output of associated device. Supports the following command classes:

  • BASIC_SET : set On / Off state at the associated device

Association Group 3
Allowed nodes: 9
It is assigned to switch connected to the SW (SW1) terminal (uses Switch Multilevel command class). Triggered by SW (SW1).

It is recommended to use push buttons for this association. Supports the following command classes:

  • SWITCH_MULTILEVEL_START_LEVEL_CHANGE : initiate a transition to a new level (increase or decrease light intensity in case of dimmer, or move shutter up or down, …)

  • SWITCH_MULTILEVEL_STOP_LEVEL_CHANGE : stop an ongoing transition (stop increase or decrease light intensity in case of dimmer, or stop moving shutter up or down, …)

Endpoint 3

Endpoint 3 - Association Group 1 - Lifeline

Association group 1 – "Lifeline group" sends to the controlling device it's command class notifications and or command class reports when said command classes are triggered. Nodes allowed: 0:

SWITCH_BINARY_REPORT : status change report on SW2

Association Group 2
Allowed nodes: 9
It is assigned to switch connected to the SW2 terminal (uses Basic command class).
Triggered by SW2. The device sends according to the state of SW2 (switch or push-button) the command BASIC_SET ON or BASIC_SET OFF to the associated device. Supports the following command classes:

  • BASIC_SET : set On / Off state at the associated device

Association Group 3
Allowed nodes: 9
It is assigned to switch connected to the SW2 terminal (uses Switch Multilevel command class). Triggered by SW2.

It is recommended to use push buttons for this association. Supports the following command classes:

  • SWITCH_MULTILEVEL_START_LEVEL_CHANGE : initiate a transition to a new level (increase or decrease light intensity in case of dimmer, or move shutter up or down, …)

  • SWITCH_MULTILEVEL_STOP_LEVEL_CHANGE : stop an ongoing transition (stop increase or decrease light intensity in case of dimmer, or stop moving shutter up or down, …)

Z-Wave® Important disclaimer

Z-Wave® wireless communication may not always be 100% reliable. This Device should not be used in situations in which life and/or valuables are solely dependent on its functioning. If the Device is not recognized by your gateway or appears incorrectly, you may need to change the Device type manually and ensure that your gateway supports Z-Wave Plus™ multi-level devices.

Troubleshooting

For troubleshooting please visit our support portal: Support

Compatibility

Wave PRO Dimmer 1PM

functions - reports

Gateway

Dimming

SW Dimming

+SW scene 1

*SW scene 2

*SW On/Off 1

*SW On/Off 2

Notes

Home Assistant

(tick)

(tick)

(tick)

(tick)

(tick)

(tick)

Fibaro - HC 3 / Wave engine 3

TBD

TBD

TBD

TBD

TBD

TBD

Homey

(tick)

(tick)

(tick)

(tick)

Homee Gen 7

TBD

TBD

TBD

TBD

TBD

TBD

Homee Gen 5

TBD

TBD

TBD

TBD

TBD

TBD

Smart Things

TBD

TBD

TBD

TBD

TBD

TBD

Notes

Function

Meaning / tested

On/Off

if device respond to the app UI On/Off command

SW On/Off

if device reports On/Off changes by SW input

Dimming

if device respond to app UI dimming command

SW Dimming

if device report dimming state change by SW input

Watts

if Watts are reported (unsolicited)

kWh

if kWh are reported (unsolicited)

Up/Down

if device respond to the app UI Up/Down command

SW Up/Down

if device reports Up/Down changes by SW input

Slats

if the slats respond to the app UI command

SW Slats

if the slats report the changes done by SW

*SW scene

detached mode if device reports scene commands single press, double press,…

*SW On/Off

detached mode if the device reports binary On/Off by SW input

Legend

Symbol

State

(tick)

Working / Possible

Not Working / Not Possible

P

Partially

N/T

Not Tested

TBD

To be done

Gateway guides

You may find useful guides on gateways in the Z-Wave Shelly Knowledge base.

Compliance

20240916083611746.pdf

Printed User Guide

Shelly_Wave_Pro_Dimmer_1PM_2024_V1_print_B2439.pdf
