Splitter 1 to 5 - 3.5mm Jack

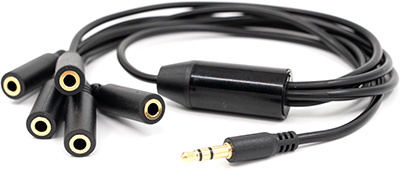

Device image(s)


Device identification

  • Device name: Splitter 1 to 5 - 3.5mm jack (Accessory for The Pill by Shelly)

  • Device model: N/A

Short description

Enhance temperature measurement by connecting simultaneously up to 5 Temperature probes. The splitter allows to extend the built-in Cable Adapter (3.5mm jack) up to 5 different temperature sensors DS18B20 (3.5 mm jack).

Supported temperature sensors: Up to 5x DS18B20 - 3.5mm Jack.

Specifications

Physical

Weight:

40 g

Cable length:

  • 1x 21 cm (3.5mm jack)

  • 5x 21cm (3.5 mm receptacle)

Wire colors:

Black

Shell color:

black

Connectors:

  • 3.5mm jack (male)

  • 5x 3.5mm jack (receptacle)

Environmental

Ambient working temperature:

0 to 40 °C / 32 to 105°F

Storage temperature:

-20°C to 40°C / -5°F to 105°F

Humidity:

30 % to 70 % RH

Max. altitude:

2000 m / 6562 ft

Declaration of conformity

Shelly Splitter 1 to 5 - 3.5mm jack multilingual EU declaration of conformity 248 2025-12-08.pdf

Shelly Splitter 1 to 5 - 3.5mm jack UKCA declaration of conformity 3032 2025-12-08.pdf
