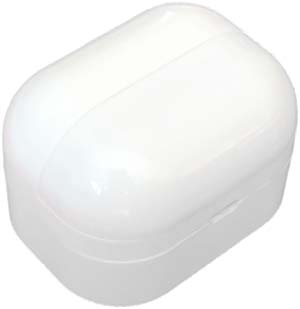

Shelly BLU Motion
Device identification
Device name: ShellyBLU Motion
Device model: SBMO-003Z
Short description
ShellyBLU Motion (the Device) is a smart Bluetooth motion detection sensor featuring a lux meter.
Features
Long battery life
Illumination measurement
Beacon mode
Encrypted mode
Main applications
Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college
Connectivity
Bluetooth
Modes of operation
Regular mode - the Device broadcasts the motion detection status, illuminance, and battery status each time the motion-detection status changes (motion is detected or no motion is detected during the blind time). You can adjust the blind time from the Device settings in the Shelly Smart Control application. For more details, visit the Shelly Smart Control guide.
Beacon mode - the Device broadcasts the motion detection status, illuminance, and battery status every 30 seconds. You can enable the Beacon mode from the Device settings in the Shelly Smart Control application. For more details, visit the Shelly Smart Control guide.
The battery life may be significantly reduced when the Device is in Beacon mode.
User interface
Inputs
-
One push button (behind the back cover)
Press and hold for 10 sec to pair ShellyBLU Motion with another Bluetooth device.
Press and hold for 30 sec to factory reset (possible only shortly after inserting the battery).
Double-press to set the Device in test mode. For a minute, the Device will broadcast every motion detection, indicating it by a red flash.
Specifications
Type |
Value |
|---|---|
Physical | |
Size (HxWxD): |
32x42x27 ±0.5 mm / 1.26х1.65х1.06 ±0.02 in |
Weight: |
26 ±1 g / 0.92 ±0.05 oz (Device with the battery) |
Shell material: |
Plastic |
Color: |
White |
Environmental | |
Ambient temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
Humidity: |
30 % to 70 % RH |
Electrical | |
Power supply: |
1x 3 V CR2477 battery (included) |
Battery life: |
5 years |
Sensors | |
PIR |
Yes |
Light sensor |
Yes |
Radio | |
RF band: |
2400 - 2483.5 MHz |
Max. RF power: |
<4 dBm |
Bluetooth Protocol: |
4.2 |
Bluetooth Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
MCU | |
CPU: |
EFR32BG22C222F352GM32 |
Firmware capabilities | |
Encryption: |
AES encryption (CCM mode) |
Beacon mode: |
Yes |
Shelly Smart Control
Troubleshooting
...
Components and APIs
Compliance
Shelly Blu Motion multilingual EU declaration of conformity 2025-07-22.pdf
Shelly BLU Motion UK PSTI ACT Statement of compliance.pdf
Battery material safety data sheet
Printed user guide
Shelly BLU Motion multilingual printed user and safety guide.pdf
