Shelly Wall Switch with 4 Buttons

Short description

Shelly Wall Switch 1, 2, and 4 are accessories for Shelly devices. They come with attachable holders, which are used for hooking the device up to the Wall Switch.

Compatibility:

Shelly Wall Switch 1 comes with three attachable holders:

Holder 1 - compatible with Shelly 1/1PM
Holder 2 - compatible with
- All Shelly Plus devices
- Shelly 1 Gen3, Shelly 1PM Gen3, Shelly 2PM Gen3, Shelly i4 Gen3, Shelly Dimmer Gen3, and Shelly DALI Dimmer Gen3
- Shelly 1 Gen4 and Shelly 1PM Gen4
Holder 3 - compatible with Shelly 1L / Shelly Dimmer 2

Shelly Wall Switch 2 comes with three attachable holders:

Holder 1 - for Shelly 2.5
Holder 2 - compatible with
- All Shelly Plus devices
- Shelly 1 Gen3, Shelly 1PM Gen3, Shelly 2PM Gen3, Shelly i4 Gen3, Shelly Dimmer Gen3, and Shelly DALI Dimmer Gen3
- Shelly 1 Gen4 and Shelly 1PM Gen4
Holder 3 - compatible with Shelly 1L / Shelly Dimmer 2

Shelly Wall Switch 4 comes with a single holder, compatible with:

All Shelly Plus devices
Shelly 1 Gen3, Shelly 1PM Gen3, Shelly 2PM Gen3, Shelly i4 Gen3, Shelly Dimmer Gen3, and Shelly DALI Dimmer Gen3
Shelly 1 Gen4 and Shelly 1PM Gen4

Main applications

Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college

Specifications

Type	Value
Physical

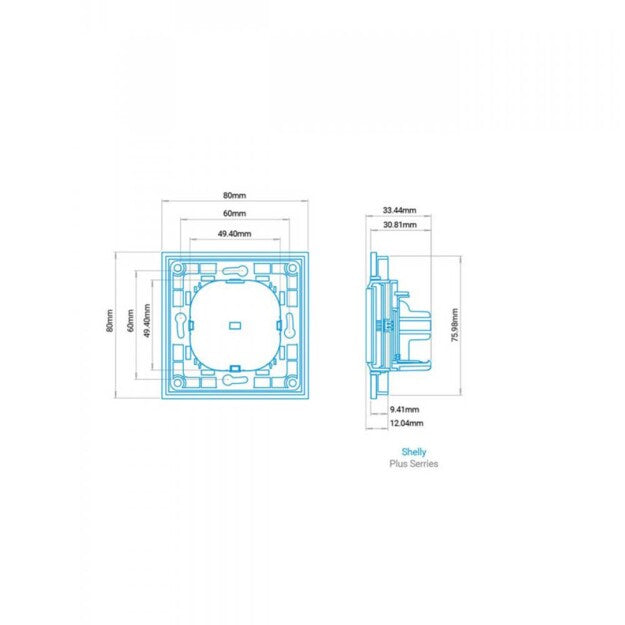

Size (HxWxD):	70x70x12 mm / in (without holder)
Material:	Plastic
Color:	White / Black
Environmental
Ambient temperature:	-20° C to 70° C / -5° F to 158° F
Humidity:	up to 85%
Electrical
Maximum switching voltage:	12 VDC / 18 VAC
Maximum switching current:	50 mA
