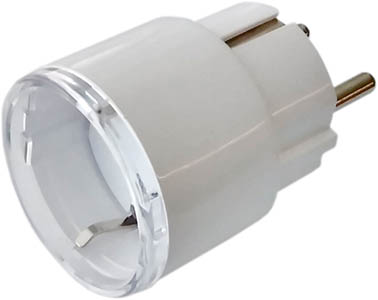

Shelly Plus Plug S



Device identification

  • Device name: Shelly Plus Plug S

  • Device model: SNPL-00112EU

  • Device SSID: ShellyPlusPlugS-XXXXXX

Short description

Shelly Plus Plug S (The Device) is a smart plug/outlet with power measurement and overheating protection, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.

Shelly Plus Plug S can be accessed, set up and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

The Device has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Main applications

  • Residential

  • MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)

  • Light commercial (small office buildings, small retail/restaurant/gas station, etc.)

  • Government/municipal

  • University/college

Integrations

  • Google

  • Samsung SmartThings

  • Alexa

Simplified internal schematics


Device electrical interfaces

Input

  • 1 CEE 7/7 plug

Output

  • 1 CEE 7/3 (Type-F / Schuko) socket

Connectivity

  • Wi-Fi

  • Bluetooth

Safety features

  • Overheating protection

  • Overvoltage protection

  • Overcurrent protection

  • Overpower protection

Supported load types

  • Resistive (incandescent bulbs, heating devices)

  • Capacitive (capacitor banks, electronic equipment, motor start capacitors)

  • Inductive (LED light drivers, transformers, fans, refrigerators, air-conditioners)

User interface

Inputs

  • One push button

    • Press to turn the output On/Off.

    • Press and hold for 3 sec to check status (Possible only when the output in Off).

    • Press and hold for 5 sec to reboot (Possible up to 60 sec after plugging in in the Device).

    • Press and hold for 10 sec to factory reset (Possible up to 60 sec after plugging in in the Device).

Outputs

  • LED indication

    • When plugged for the first time:

      • Blue light flashing, indicating AP mode.

    • When plugged/powered again after being successfully connected to a Wi-Fi network:

      • Red light flashing slowly, indicating the the Device is reconnecting to the Wi-Fi network.

      • Constant red light, indicating that the Device cannot reconnect to the Wi-Fi network.

    • When output is On:

      • Power consumption represented by a smooth color change (Default):

        • Green light at 0% of power limit set

        • Yellow light at 50% of power limit set

        • Red light at 100% of power limit set

        User can select the brightness (Default brightness - 100%).

      • Custom color (Default color - Green, Default brightness - 100%)

      • Off

    • When output is Off:

      • Off (Default):

      • Custom color (Default color - Red, Default brightness - 100%)

    • When OTA update is in progress:

      • Red light flashing

Specifications

Type

Value

Physical

Size (HxWxD):

44x44x70 ±0.5 mm / 1.73x1.73x2.75 ±0.02 in

Weight:

60 ±1 g / 2.08 ±0.04 oz

Compatible sockets:

CEE 7/1, CEE 7/3 (Type F / Schuko) or CEE 7/5 (Type E)

Compatible plugs:

CEE 7/2, CEE 7/4 (Type F / Schuko), CEE 7/7, CEE 7/16 (Type C) or CEE 7/17

Shell material:

Plastic

Color:

White

Environmental

Ambient temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity

30 % to 70 % RH

Max. altitude

2000 m / 6562 ft

Electrical

Power supply voltage AC:

230 V ±10 % , 50/60 Hz

Power supply voltage DC:

N/A

Power consumption:

< 1 W

Output circuits ratings

Max switching voltage AC:

260 V

Max switching voltage DC:

N/A

Max switching current AC:

12 A

Max switching current DC:

N/A

Sensors, meters

Internal-temperature sensor:

Yes

Voltmeter:

Yes

Ammeter:

Yes

Power and energy meters:

Yes

Radio

RF band:

2400 - 2495 MHz

Max. RF power:

<20 dBm

Wi-Fi protocol:

802.11 b/g/n

Wi-Fi Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth Protocol:

4.2

Bluetooth Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

MCU

CPU:

ESP32

Flash:

4 MB

Firmware capabilities

Webhooks (URL actions):

20 with 5 URLs per hook

Scripting:

Yes

MQTT:

Yes

CoAP:

No
