Integrating Innova Airleaf Ewf644ii With Shelly Smart Control Via Local Http Api A Comprehensive Guide

Integrate INNOVA AirLeaf EWF644II directly with Shelly Smart Control through its local HTTP API. This guide covers API communication, Virtual Components, heating and cooling control, fan modes, temperature control, bidirectional synchronization, fault handling, and deployment on Shelly Gen3.

This guide explains how to connect a compatible INNOVA AirLeaf controller to a Shelly Gen3 device, expose the main HVAC controls and operating values as Shelly Virtual Components, and control the fan coil directly from Shelly Smart Control. The integration is fully local between the Shelly device and the INNOVA controller. No Home Assistant instance, external automation server, MQTT broker, cloud-to-cloud bridge, or additional protocol gateway is required for the control loop.

Overview

The INNOVA AirLeaf EWF644II fan-coil unit, equipped with its integrated on-board SMART TOUCH control and Wi-Fi interface, provides a local HTTP interface that can be accessed directly from the local network. A Shelly Gen3 device can use Shelly Script to communicate with this HTTP interface and map the physical AirLeaf state to Shelly Virtual Components. The tested solution uses:

• INNOVA AirLeaf EWF644II

• Integrated on-board SMART TOUCH control with Wi-Fi

• Shelly Plug S Gen3

• Shelly Script

• Shelly Virtual Components

• Shelly Smart Control

• Local IPv4 network

• Local HTTP API

The integration provides monitoring and control of:

• Fan-coil power

• Heating mode

• Cooling mode

• Target room temperature

• Fan Auto mode

• Fan Night mode

• Minimum fan mode

• Maximum fan mode

• Current room temperature

• Communication and command status

The integration has been validated with an INNOVA controller reporting:

deviceType 002

and with:

Shelly Plug S Gen3
Firmware 2.0.0

Important

This integration was validated against a specific INNOVA AirLeaf EWF644II installation reporting deviceType 002.

Other INNOVA AirLeaf controllers, generations, firmware versions, control panels, or deviceType values must not automatically be assumed to expose identical HTTP endpoints or use identical field mappings.

Verify the exact controller before applying this integration to another model.

How the integration works

The architecture is fully local:

INNOVA AirLeaf EWF644II
│
│ Local HTTP API
│ TCP port 80
│
▼
Shelly Gen3
│
├── Shelly Script
├── HTTP client
├── Command queue
├── Virtual Components
│
▼
Shelly Smart Control

The Shelly device communicates directly with:

http://INNOVA_IP/api/v/1/

The Shelly Script performs several functions:

1. Creates or reuses the required Virtual Components.

2. Configures the Virtual Components for Shelly Smart Control.

3. Connects to the INNOVA local HTTP API.

4. Reads the real physical state of the fan coil.

5. Converts the INNOVA API values into Shelly-compatible values.

6. Updates the Virtual Components.

7. Detects changes made by the user through Shelly Smart Control.

8. Converts those changes into HTTP requests.

9. Sends the commands to the INNOVA controller.

10. Reads the physical state again after control activity.

11. Updates Shelly Smart Control with the real state reported by the fan coil.

This creates bidirectional synchronization:

INNOVA
↓
Shelly Script
↓
Virtual Components
↓
Shelly Smart Control

and:

Shelly Smart Control
↓
Virtual Components
↓
Shelly Script
↓
INNOVA

The physical INNOVA controller remains the authoritative state source.

Why use the local API?

The integration communicates directly over the LAN. The control path is:

Shelly → local network → INNOVA

rather than:

Shelly
↓
Internet
↓
Cloud service A
↓
Cloud service B
↓
INNOVA

This provides several practical advantages.

Local control

The HVAC control logic does not require an external automation server.

Reduced dependency on external services

The core communication between Shelly and the fan coil stays inside the local network.

Fast state synchronization

Shelly can query the physical fan coil directly.

Shelly-native representation

The AirLeaf appears through Shelly Virtual Components and can therefore participate in the Shelly ecosystem. Shelly Smart Control supports direct control, monitoring, scenes and automations around Shelly components. (Shelly Knowledge Base)

Requirements

INNOVA hardware

You need a compatible: INNOVA AirLeaf EWF644II with: integrated on-board SMART TOUCH control with Wi-Fi The tested controller reports:

deviceType 002

The controller must be reachable from the Shelly device over the same IP network or through a routed network that permits direct HTTP communication.

Shelly hardware

The tested implementation uses: Shelly Plug S Gen3 with:

Firmware 2.0.0

The Shelly device needs support for:

• Shelly Script

• Dynamic Virtual Components

• HTTP.GET

• HTTP.POST

• timers

• Virtual Component change events

The current script was specifically optimized for the available script memory on Shelly Plug S Gen3. Other compatible Shelly Gen3 devices may also be suitable, but should be validated individually.

Network requirements

Both devices must be able to communicate directly. Example:

Router / LAN
│
├── Shelly Gen3
│ 192.168.1.20
│
└── INNOVA AirLeaf
192.168.1.50

The Shelly must be able to access:

http://192.168.1.50/api/v/1/status

TCP port:

80

is used by the tested HTTP implementation.

Recommended IP configuration

For a permanent installation, configure the INNOVA AirLeaf with a stable address. This can normally be achieved using:

• a static IP on the controller, if supported; or

• a DHCP reservation in the router.

Avoid relying on a dynamically changing address. For example:

INNOVA AirLeaf
192.168.1.50

Then configure:

var CONFIG = {
host: '192.168.1.50',
...
};

Verify the INNOVA API before installation

Before installing the Shelly Script, verify that the controller responds locally. From a computer on the same network:

curl http://INNOVA_IP/api/v/1/status

For example:

curl http://192.168.1.50/api/v/1/status

A valid AirLeaf response should contain:

success
deviceType
RESULT

The exact response may contain additional fields. The integration requires:

deviceType = 002

before it accepts the response as belonging to the validated controller type.

INNOVA local HTTP API

The tested integration uses the following API base:

http://INNOVA_IP/api/v/1/

Read current status

GET /api/v/1/status

This operation is used for:

• startup synchronization;

• periodic polling;

• post-command verification;

• recovery after communication errors.

Power control

Power ON

POST /api/v/1/power/on

Body:

{}

Power OFF

POST /api/v/1/power/off

Body:

{}

The current script deliberately sends an empty JSON object even for commands that do not require additional parameters.

Heating and cooling mode

Heating

POST /api/v/1/set/mode/heating

Cooling

POST /api/v/1/set/mode/cooling

The AirLeaf must normally be powered before a working-mode change is sent. For this reason, when Shelly detects a mode change while the last known AirLeaf state is OFF, the script can execute:

Power ON
↓
Change mode
↓
Read physical status

Target temperature

The target temperature is configured with:

POST /api/v/1/set/setpoint

The body contains:

{
"temp": 220
}

for:

22.0 °C

The AirLeaf represents temperature in tenths of a degree Celsius. Therefore:

20.0 °C → 200
21.5 °C → 215
22.0 °C → 220
23.5 °C → 235

The Shelly Virtual Component displays a normal Celsius value, while the script performs the conversion automatically.

Fan-function control

The tested controller supports four fan functions.

Auto

POST /api/v/1/set/function/auto

Night

POST /api/v/1/set/function/night

Minimum

POST /api/v/1/set/function/min

Maximum

POST /api/v/1/set/function/max

These are exposed in Shelly Smart Control as a single enum component.

Status response mapping

The integration uses several fields from:

RESULT

inside the AirLeaf status response. The validated fields are:

Power state

The field:

ps

is interpreted as:

ps = 1 → ON

The Shelly script converts this into a Boolean Virtual Component.

Target temperature

The field:

sp

uses tenths of a degree. Example:

sp = 230

becomes:

23.0 °C

in Shelly Smart Control.

Current room temperature

The field:

ta

also uses tenths of a degree. Example:

ta = 216

becomes:

21.6 °C

Working mode

The validated mapping is:

wm = 3 → heating
wm = 5 → cooling

Unknown values are intentionally not guessed. This is important because HVAC protocol implementations can differ between models and firmware revisions.

Fan function

The validated mapping is:

fn = 1 → Auto
fn = 2 → Night
fn = 3 → Minimum
fn = 4 → Maximum

Again, unknown values are not automatically interpreted.

Virtual Components

The AirLeaf integration creates six Shelly Virtual Components.

Power Virtual Component

boolean:200

Name:

INNOVA Power

Values:

Off
On

The component is writable. Changing it from Shelly Smart Control causes the script to send either:

POST /power/on

or:

POST /power/off

Mode Virtual Component

enum:201

Name:

INNOVA Mode

Options:

heating
cooling

Shelly UI titles:

Heating
Cooling

The internal API values remain lower-case protocol values while Shelly Smart Control displays user-friendly labels.

Target-temperature Virtual Component

number:202

Name:

INNOVA Set temperature

Configured range:

16 °C – 31 °C

Step:

0.5 °C

When a new value is selected, the script converts it into the AirLeaf format. Example:

Shelly:
22.5 °C

becomes:

{
"temp": 225
}

Fan Virtual Component

enum:203

Name:

INNOVA Fan

Values:

auto
night
min
max

Displayed titles:

Auto
Night
Minimum
Maximum

Room-temperature Virtual Component

number:204

Name:

INNOVA Room temperature

This component is intended as telemetry. It reflects:

RESULT.ta

and is synchronized from the physical fan coil.

Status Virtual Component

text:205

Name:

INNOVA Status

This component provides useful runtime information such as:

starting
connecting
online
sending
offline
timeout
error

Example:

online / type 002

Shelly Cloud metadata

The current implementation also includes Shelly metadata for better presentation and logging. Temperature values use:

cloud: ['measurement']

State values use:

cloud: ['log']

This follows the same Virtual Component metadata approach used by current Shelly examples.

Source code

Current project repository:

https://github.com/drHouse-gif/shelly-script-examples/tree/feature/innova-airleaf-ewf644ii-v2/http-integrations/innova-airleaf

Installing the Shelly Script

The current source is available from:

https://github.com/drHouse-gif/shelly-script-examples/tree/feature/innova-airleaf-ewf644ii-v2/http-integrations/innova-airleaf

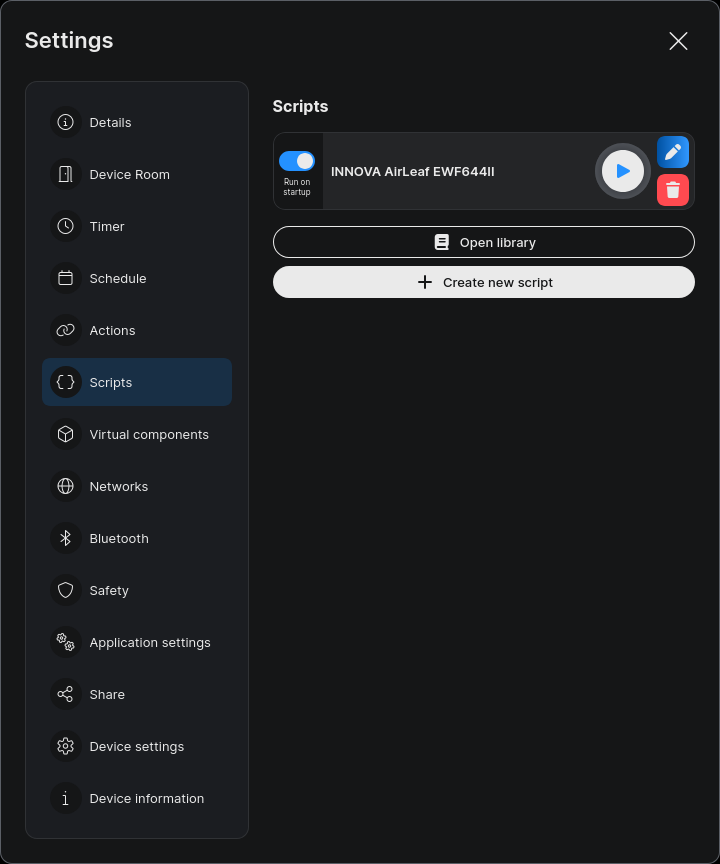

Open the Shelly web interface. Go to:

Scripts

Create a new script. Suggested name:

INNOVA AirLeaf

Paste the complete script.

Shelly Script created for the INNOVA AirLeaf EWF644II integration.

Configure the INNOVA IP address

At the beginning of the script locate:

var CONFIG = {
host: '192.0.2.10',
pollMs: 15000,
timeoutSec: 5,
watchdogMs: 7500,
settleMs: 500,
maxQueue: 5
};

The address:

192.0.2.10

is intentionally a documentation / TEST-NET address. Replace it with the real LAN address of the AirLeaf. Example:

var CONFIG = {
host: '192.168.1.50',
pollMs: 15000,
timeoutSec: 5,
watchdogMs: 7500,
settleMs: 500,
maxQueue: 5
};

Only the host normally needs to be changed.

Configuration parameters

host

host: '192.168.1.50'

IP address of the AirLeaf Wi-Fi controller.

pollMs

pollMs: 15000

Normal physical-state polling interval. Default:

15 seconds

This is intentionally conservative because HVAC state normally does not require sub-second polling.

timeoutSec

timeoutSec: 5

Timeout passed to the Shelly HTTP request.

watchdogMs

watchdogMs: 7500

Independent script watchdog. It protects the request queue if a callback is unexpectedly not delivered.

settleMs

settleMs: 500

Delay between the end of command activity and physical state verification. This allows the AirLeaf controller a short period to process the command before Shelly reads it back.

maxQueue

maxQueue: 5

Maximum number of waiting HTTP jobs. This protects the integration from uncontrolled command accumulation.

First startup

The script first prepares the Shelly-side interface. The startup sequence is conceptually:

Start script
↓
Check Virtual API
↓
Check boolean:200
↓
Check enum:201
↓
Check number:202
↓
Check enum:203
↓
Check number:204
↓
Check text:205
↓
Create missing components
↓
Bind component handlers
↓
GET INNOVA /status
↓
Validate response
↓
Update Shelly values
↓
Start normal polling

This is intentionally different from immediately writing the current Shelly values to the HVAC unit. The integration first reads the physical device.

Existing Virtual Components

If the expected Virtual Component already exists, the current runtime reuses it and refreshes its configuration. For example:

enum:201

is reused rather than blindly duplicated. This helps preserve the fixed component mapping used by the integration.

Missing Virtual Components

If a component is missing, the script calls:

Virtual.Add

and creates it automatically. No separate Virtual Component setup script is required.

The six Virtual Components created by the script: Power, Mode, Fan, Set temperature, Room temperature, and Status.

Create the Thermostat Virtual Device

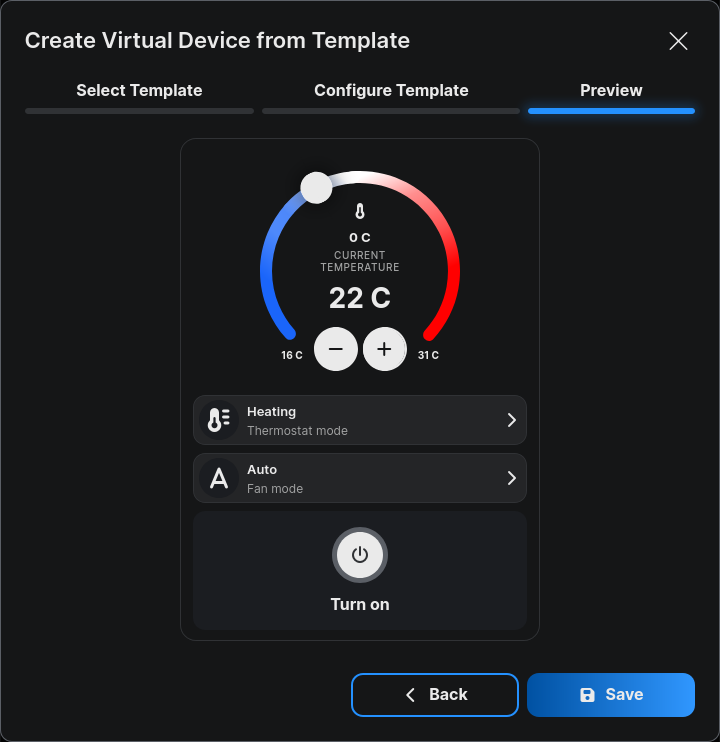

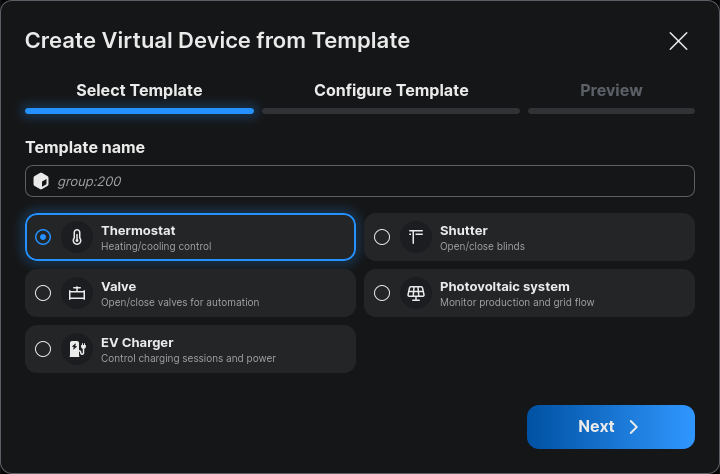

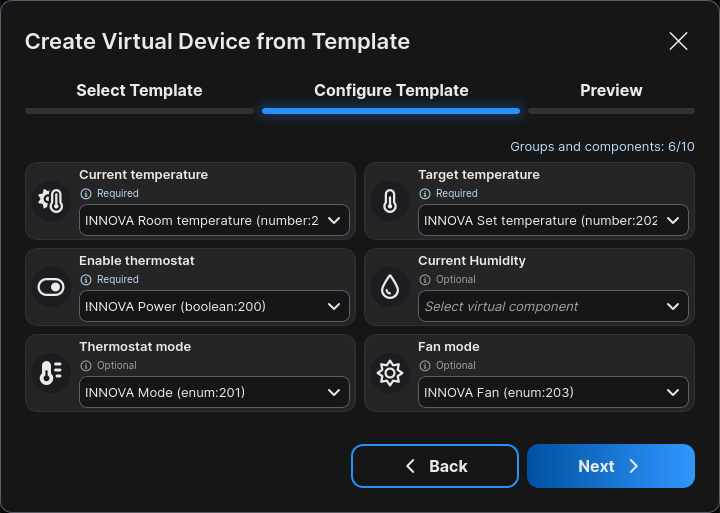

After the six Virtual Components are available, combine them into a single thermostat-style Virtual Device for the main Shelly Smart Control interface.

This step does not change the API integration or the underlying Virtual Components. It only creates a user-facing HVAC control that groups the relevant components into one thermostat interface.

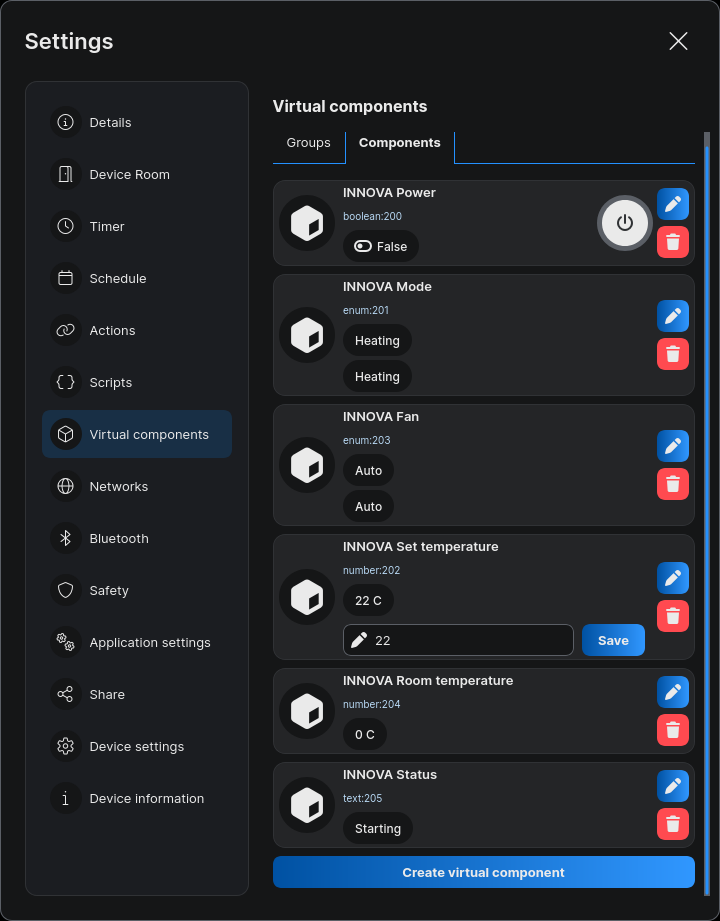

1. Open Virtual Components

Open the Shelly device and go to:

Settings → Virtual components

Confirm that the following components exist:

The text:205 status component remains a separate diagnostic component and is not mapped into the thermostat template.

2. Create a Virtual Device from a template

Switch to the Groups tab and choose Create Virtual Device from Template.

Select:

Thermostat
Heating/cooling control

For a production installation, replace the default template name such as group:200 with a clear name, for example:

INNOVA AirLeaf EWF644II

Select the Thermostat template in Shelly Smart Control.

3. Map the INNOVA Virtual Components

Configure the thermostat template with the components created by the script:

Map the INNOVA Virtual Components to the Thermostat template.

Select Next after all five required/used fields are mapped.

4. Preview the thermostat

The preview should provide a single HVAC interface with:

• current room temperature;

• target temperature control;

• Heating / Cooling mode;

• Auto / Night / Minimum / Maximum fan mode;

• Power ON / OFF.

Preview of the completed INNOVA AirLeaf thermostat Virtual Device.

Select Save to create the Virtual Device.

The individual Virtual Components remain available for scenes, automations, diagnostics, and advanced logic, while the thermostat Virtual Device becomes the primary user-facing control in Shelly Smart Control.

Why the Virtual Component bootstrap is compact

An earlier version of the integration used the full generic Shelly Virtual Component helper. That approach is very flexible, but during real testing on:

Shelly Plug S Gen3
Firmware 2.0.0

the larger runtime could exhaust the available scripting memory. The device reported:

out_of_memory

The final implementation therefore keeps the same essential self-provisioning concept but replaces the generic helper with a compact fixed-component bootstrap. This significantly reduces the runtime memory footprint.

Shelly mJS compatibility

Another issue discovered during real hardware testing involved:

Array.shift()

The tested Shelly runtime reported:

Function "shift" not found

Therefore the final queue implementation deliberately uses:

A = Q[0];
Q = Q.slice(1);

instead of:

Q.shift();

This is an important example of why embedded Shelly Script code should be validated on real Shelly firmware rather than assumed to behave exactly like full browser or Node.js JavaScript.

Normal polling

When there is no command in progress, Shelly periodically sends:

GET /api/v/1/status

Default interval:

15 seconds

The result is used to update:

Power
Mode
Target temperature
Fan
Room temperature
Status

This also means that a change performed directly at the AirLeaf controller can be reflected back into Shelly Smart Control.

Bidirectional synchronization

This is one of the most important parts of the integration. The system does not treat Shelly as the only controller. The AirLeaf may also be changed from:

• its own physical interface;

• another supported INNOVA interface;

• internal HVAC logic;

• another local controller.

Therefore the physical AirLeaf remains authoritative.

INNOVA → Shelly synchronization

Example: A user changes the fan directly on the AirLeaf:

Auto → Night

The next status request returns:

fn = 2

The Shelly Script converts this to:

night

and updates:

enum:203

Shelly Smart Control then displays:

Night

Shelly → INNOVA control

If the user changes:

Fan → Maximum

Shelly generates a Virtual Component change event. The script sends:

POST /api/v/1/set/function/max

After the command sequence settles, it reads:

GET /api/v/1/status

again. The physical status is then written back into Shelly.

Preventing feedback loops

A bidirectional integration introduces a potential problem:

INNOVA changes
↓
Script updates VC
↓
VC change event
↓
Script sends INNOVA command
↓
INNOVA changes
↓
...

The runtime prevents this by checking the event source. Script-generated Virtual Component updates are ignored by the command handlers. Conceptually:

Physical update
↓
setValue()
↓
Virtual Component
↓
event source = script
↓
DO NOT send HTTP command

Only genuine user-side changes generate control requests.

Serialized HTTP communication

The integration never intentionally sends uncontrolled concurrent HTTP requests. Instead it maintains one active request at a time. Conceptually:

QUEUE

[Power]
[Mode]
[Setpoint]
[Fan]

↓

one request active

↓

response

↓

next request

This matters because embedded HVAC controllers may respond poorly to multiple overlapping HTTP requests.

Command coalescing

Rapid UI interaction can produce multiple changes. For example, while changing the temperature:

21.0
21.5
22.0
22.5
23.0

A simple implementation might send five POST requests. The current runtime can replace a pending command of the same logical type with the newest value. Conceptually:

Setpoint 21.0
Setpoint 21.5
Setpoint 22.0
Setpoint 22.5
Setpoint 23.0

becomes closer to:

active request
+
latest pending setpoint

instead of blindly replaying every intermediate user input.

Mode-change sequencing

Changing HVAC mode while the fan coil is OFF requires special handling. Suppose:

Power = OFF
Mode = Heating

If the user selects:

Cooling

the runtime can queue:

POST /power/on
↓
POST /set/mode/cooling
↓
wait
↓
GET /status

This is preferable to issuing the mode request without considering the known power state.

Dependency failure handling

There is another important protection. Suppose the sequence is:

Power ON
↓
Change mode

but the first command fails. A naive queue would still execute:

Change mode

The current implementation does not continue blindly. For a command failure:

failed prerequisite
↓
clear remaining dependent queue
↓
read physical state

This reduces the chance of executing commands under an invalid assumption about the HVAC state.

Physical state verification

After command activity, the integration does not assume that the command actually changed the physical fan coil. The sequence is:

User changes Shelly value
↓
HTTP POST
↓
INNOVA accepts request
↓
Short settle delay
↓
HTTP GET /status
↓
Read physical state
↓
Update Shelly Virtual Components

This is especially important in HVAC systems. The equipment may:

• reject a request;

• normalize a value;

• remain in another state;

• react according to internal control logic;

• apply operating limits.

The value displayed after synchronization therefore reflects the state returned by the physical controller.

Delayed status readback

Instead of performing:

POST
GET
POST
GET
POST
GET

for every individual operation, the final runtime waits briefly after the command queue becomes idle. Default:

500 ms

Then it performs one physical status readback. Conceptually:

Power ON
Mode Cooling
Setpoint 22
Fan Auto
↓
500 ms
↓
GET status

This reduces unnecessary HTTP traffic.

HTTP response validation

A received HTTP response is not immediately trusted. The script checks several conditions.

Shelly RPC status

First:

errorCode == 0

must be true.

HTTP code

The HTTP response must be:

200

JSON validation

The body must parse successfully:

JSON.parse(result.body)

If parsing fails, the response is rejected.

API result

The response must contain:

success = true

Status object

For status requests:

RESULT

must exist.

Device validation

The response must report:

deviceType 002

Only after all these conditions pass is the physical status applied to Shelly.

Device-type protection

The check:

deviceType 002

prevents the integration from automatically interpreting the response from an unvalidated INNOVA controller as if it were the tested AirLeaf target. If the device type differs, Shelly reports a status similar to:

error: not AirLeaf 002

instead of applying unknown field semantics.

HTTP watchdog

The script also implements an independent request watchdog. Normal HTTP timeout:

5 seconds

Script watchdog:

7.5 seconds

If the expected callback is not received, the watchdog releases the active request state and reports the communication failure. This prevents the HTTP queue from remaining permanently locked.

Late callback protection

Network activity can sometimes produce an unusual situation:

1. Shelly considers a request expired.

2. The request is cleared.

3. A delayed callback arrives later.

If the old callback were accepted, it could corrupt the current queue state. The script therefore assigns a request identifier. Conceptually:

Request 41
Request 42
Request 43

Only the callback belonging to the currently active request ID is processed. An old callback is ignored.

Communication status

The INNOVA Status Virtual Component can display conditions such as:

connecting to 192.168.1.50

sending: power on

sending: mode cooling

online / type 002

or:

offline: timeout

This gives the installer immediate information without needing to inspect the script console for every condition.

Communication loss

If the AirLeaf becomes unreachable:

Shelly
X
INNOVA

the integration does not crash intentionally. Instead:

HTTP request
↓
timeout/error
↓
Status = offline
↓
queue released
↓
later polling continues

When communication is restored, a successful status response updates the Virtual Components again.

Installing the final script

The recommended deployment process is:

1. Verify the AirLeaf

Open:

http://INNOVA_IP/api/v/1/status

Confirm:

deviceType 002

2. Open the Shelly device

Go to:

Scripts

3. Create a new script

Suggested name:

INNOVA AirLeaf EWF644II

4. Paste the production runtime

Use:

upstream/innova-airleaf-ewf644ii_vc.shelly.js

from:

drHouse-gif/drHouse-gif-innova-airleaf-shelly

5. Configure the IP

Change:

host: '192.0.2.10'

to the AirLeaf address.

6. Save

Press:

Save

7. Start the script

Press:

Run

8. Check the script console

A successful start should include a message similar to:

[INNOVA] Controller started for 192.168.1.50

9. Open Shelly Smart Control

The six Virtual Components should become available.

10. Enable Run on startup

After confirming stable operation:

Run on startup → ON

11. Create the thermostat Virtual Device

Use the Thermostat template and map number:204, number:202, boolean:200, enum:201, and enum:203 as described in Create the Thermostat Virtual Device above.

Recommended first test

Do not start by changing every setting at once. First confirm read-only synchronization. Check:

Room temperature
Power
Mode
Setpoint
Fan
Status

Compare those values with the physical AirLeaf interface.

Power test

Change:

Power OFF

Verify physically that the fan coil turns off. Then check that the following status read reports:

ps != 1

Now change:

Power ON

and verify:

ps = 1

Mode test

With the fan coil enabled, change:

Heating

Verify:

wm = 3

Then select:

Cooling

and verify:

wm = 5

Temperature test

Set:

22.5 °C

The outgoing payload should logically correspond to:

{
"temp": 225
}

Then verify:

sp = 225

in the physical status response.

Fan test

Test each option individually:

Auto
Night
Minimum
Maximum

Expected physical values:

Auto → fn = 1
Night → fn = 2
Minimum → fn = 3
Maximum → fn = 4

Shelly Smart Control presentation

Once synchronized and grouped with the Thermostat template, the fan coil can be represented with:

Current temperature 21.0 °C
Target temperature 22.5 °C

Mode Heating
Fan Auto

Power ON
Status Online

The same components can also be used for:

• dashboards;

• scenes;

• schedules;

• automations;

• monitoring;

• additional Shelly logic.

Shelly Smart Control is designed to control Shelly components locally or remotely and supports scenes and automation logic around device values. (Shelly Knowledge Base)

Example automation possibilities

Once the AirLeaf exists as Shelly components, the fan coil can participate in higher-level HVAC logic. For example:

Window opens
↓
Power OFF

or:

Room temperature > target
↓
Cooling

or:

Night schedule
↓
Fan = Night

or:

Building unoccupied
↓
Power OFF

The exact automation design should depend on the building and HVAC operating requirements.

Multiple AirLeaf units

The production script described here follows a simple architecture:

1 Shelly runtime
|
1 AirLeaf controller

For multiple fan coils, one approach is to run an individual integration instance for each controller, depending on available Shelly resources. A separate multi-target implementation can also use a selector such as:

Living Room
Bedroom
Office

but that introduces additional synchronization complexity. The single-controller integration is intentionally easier to validate and maintain.

Troubleshooting

Script does not start

Check the script console. Look for:

Virtual API unavailable

or:

Virtual Component setup failed

Verify that the Shelly firmware supports Dynamic Virtual Components.

out_of_memory

If the script reports:

out_of_memory

check whether additional scripts are running on the Shelly. Shelly scripting memory is constrained, particularly on smaller Gen3 devices. During development, a larger generic-helper implementation caused memory exhaustion on the tested Plug S Gen3. The current production runtime was specifically reduced to address this issue. Also check whether another script such as a BLE gateway or proxy is consuming script resources.

Function “shift” not found

Do not use an older version of the integration that contains:

Q.shift();

The tested firmware did not expose this function. The current runtime uses:

A = Q[0];
Q = Q.slice(1);

Status shows timeout

Example:

offline: timeout

Test the AirLeaf directly:

curl -m 5 http://INNOVA_IP/api/v/1/status

Check:

• AirLeaf power;

• Wi-Fi connection;

• IP address;

• routing;

• VLAN/firewall rules;

• network isolation;

• HTTP availability.

Shelly can reach the network but not the AirLeaf

Verify that Wi-Fi client isolation is not enabled. Some access points prevent wireless clients from communicating directly with each other. The integration requires:

Shelly → INNOVA

direct local connectivity.

Wrong device type

If the status displays:

error: not AirLeaf 002

inspect the API response. Do not simply remove the protection. A different deviceType may use:

• different fields;

• different values;

• different endpoints;

• different semantics.

Validate the controller first.

Invalid JSON

If the status indicates:

invalid JSON

inspect:

http://INNOVA_IP/api/v/1/status

with:

curl -v

The controller may be:

• returning an error page;

• redirecting;

• returning incomplete data;

• temporarily unavailable.

Reading works but commands do not

If:

GET /status

works but POST commands fail, test the API manually. For example:

curl -X POST \
-H 'Content-Type: application/json' \
-d '{}' \
http://INNOVA_IP/api/v/1/power/on

Then verify the physical state with:

curl http://INNOVA_IP/api/v/1/status

Shelly value changes and then returns back

This can actually be expected behavior. Example:

User selects 23 °C
↓
Shelly sends 230
↓
INNOVA reports 22 °C
↓
Shelly returns to 22 °C

The integration intentionally trusts the physical state returned by the AirLeaf. This prevents Shelly from displaying a command that was not actually accepted.

Heating or cooling does not change

Check:

• whether the unit is powered;

• the current AirLeaf state;

• whether the controller permits the requested mode;

• whether the API returned success: true;

• the value of wm after the command.

The script powers the unit before a mode change when required based on the last known state.

Wrong temperature

The AirLeaf temperature fields use:

× 0.1 °C

For example:

214 → 21.4 °C

Do not display:

214 °C

directly.

Fan mode appears incorrect

Check the raw:

fn

field. Validated mapping:

1 Auto
2 Night
3 Minimum
4 Maximum

Do not add mappings for additional values until they have been confirmed on real hardware.

Yellow Shelly enum warnings

If Shelly Smart Control displays warnings such as missing titles for:

heating
auto

the Virtual Components are using older metadata. The current runtime includes explicit mappings. Mode:

titles: {
heating: 'Heating',
cooling: 'Cooling'
}

Fan:

titles: {
auto: 'Auto',
night: 'Night',
min: 'Minimum',
max: 'Maximum'
}

Restarting the current script refreshes the configuration of existing Virtual Components.

Debugging from Linux

Check the AirLeaf:

curl -s http://INNOVA_IP/api/v/1/status

Check the Shelly script status:

curl -s http://SHELLY_IP/rpc/Script.GetStatus?id=SCRIPT_ID

Useful information includes:

running
mem_used
mem_peak
mem_free
errors

Testing the API manually

Status

curl -s \
http://INNOVA_IP/api/v/1/status

Power ON

curl -s \
-X POST \
-H 'Content-Type: application/json' \
-d '{}' \
http://INNOVA_IP/api/v/1/power/on

Power OFF

curl -s \
-X POST \
-H 'Content-Type: application/json' \
-d '{}' \
http://INNOVA_IP/api/v/1/power/off

Heating

curl -s \
-X POST \
-H 'Content-Type: application/json' \
-d '{}' \
http://INNOVA_IP/api/v/1/set/mode/heating

Cooling

curl -s \
-X POST \
-H 'Content-Type: application/json' \
-d '{}' \
http://INNOVA_IP/api/v/1/set/mode/cooling

Setpoint 22 °C

curl -s \
-X POST \
-H 'Content-Type: application/json' \
-d '{"temp":220}' \
http://INNOVA_IP/api/v/1/set/setpoint

Auto fan

curl -s \
-X POST \
-H 'Content-Type: application/json' \
-d '{}' \
http://INNOVA_IP/api/v/1/set/function/auto

Recommended validation matrix

Before describing another installation as fully validated, test all of the following:

Network security

The tested INNOVA interface uses local plain HTTP. That means communication is not encrypted at the HTTP layer. For this reason:

• keep the AirLeaf on a trusted LAN;

• avoid exposing TCP port 80 directly to the Internet;

• use proper firewalling between network zones;

• use VPN access for remote administration where required;

• do not port-forward the AirLeaf HTTP interface publicly.

HVAC safety

This integration communicates with the existing INNOVA control system. It does not replace the equipment’s built-in control logic. Do not attempt to use the Shelly script to bypass:

• thermal protection;

• fan-coil protection;

• manufacturer limits;

• electrical protection;

• installer configuration;

• water-system protection;

• HVAC operating constraints.

The integration should be considered an external control interface, not a replacement for the manufacturer’s safety systems.

Limitations

The current implementation is intentionally limited to the behavior that has been validated. It currently supports:

Power
Heating
Cooling
Setpoint
Fan Auto
Fan Night
Fan Minimum
Fan Maximum
Room temperature
Status

It does not automatically assume support for:

• additional AirLeaf modes;

• scheduling;

• calendar control;

• water temperature;

• alarms;

• valve position;

• fan RPM;

• humidity;

• occupancy;

• other deviceType values.

Additional API functions can be added after they are verified on the target controller.

Why unknown fields are intentionally ignored

Reverse-engineered or locally exposed HVAC APIs often contain additional fields. It is tempting to immediately expose everything. For a production integration this is not ideal. The safer approach is:

Observe
↓
Identify
↓
Validate
↓
Test write behavior
↓
Document
↓
Expose

rather than guessing field meaning from isolated values.

Future extensions

The same architecture could later be extended with:

• water-temperature telemetry;

• operating-demand status;

• alarms;

• filter status;

• advanced fan states;

• scheduling;

• multi-AirLeaf target selection;

• additional AirLeaf controller types after validation.

The existing architecture already separates:

API transport
state decoder
command queue
Shelly Virtual Components

which makes controlled extension possible.

Final result

The INNOVA AirLeaf EWF644II is now integrated directly into the Shelly ecosystem through its local HTTP API. Its main operating values and controls are exposed as Shelly Virtual Components and can be used directly from Shelly Smart Control. The solution provides local control of:

• fan-coil power;

• heating and cooling modes;

• target temperature;

• Auto, Night, Minimum and Maximum fan functions;

• current room temperature;

• connection and command status.

The final architecture remains simple:

INNOVA AirLeaf EWF644II
|
Local HTTP API
|
Shelly Gen3
|
Shelly Script
|
Virtual Components
|
Shelly Smart Control

The AirLeaf remains the physical source of truth: Shelly sends commands, reads the controller again, and updates its Virtual Components according to the state reported by the HVAC equipment. This approach makes it possible to bring a compatible INNOVA AirLeaf fan-coil controller directly into the Shelly ecosystem while keeping the actual control path local, lightweight and suitable for residential and building-automation applications.
