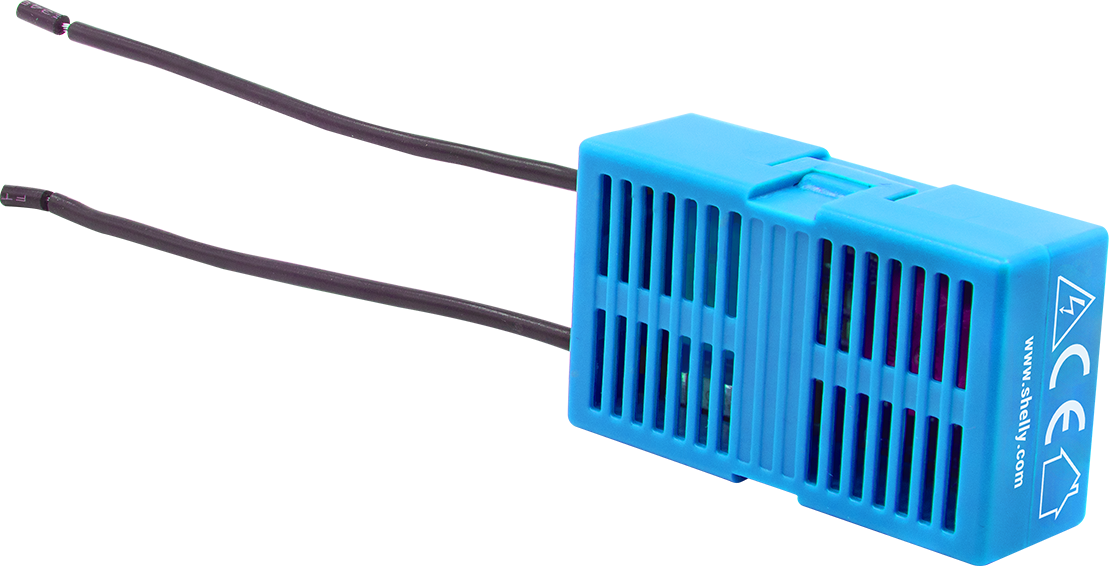

Shelly Bypass For 1l 2l Gen3

Short description

Shelly Bypass for 1L/2L is required for the Shelly 1L or 2L Gen3 to operate without a Neutral wire at 240 V~, 50 Hz.

Compatibility:

Compatible with Shelly 1L Gen3 and Shelly 2L Gen3.

Perfect for retrofitting: The Device can be mounted directly behind the light source where space is limited. It connects to Neutral and Live wires.
No minimum load condition for other Shelly devices: The Device is a bypass, allowing the Shelly 1L and 2L Gen3 to function correctly in installations without a Neutral wire.
Compatibility: Designed and tested to ensure compatibility with a wide range of lights.

Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college

Quantity	Value
Physical
Size (HxWxD):	39x23x13 mm / 1.54x0.91x0.51 inch (without wires)
Weight:	8 g / 0.28 oz
Conductor cross section:	0.2 mm² / 24 AWG stranded
Conductor stripped length:	0.5 mm / 0.02 in
Lenght of cables:	65±5 mm / 2.56±0.2 in
Mounting:	Inside Light Fixture
Shell material:	Plastic
Shell color:	Cyan
Cable color:	Black
Environmental
Ambient working temperature:	-20° C to 70° C / -5° F to 158° F
Humidity:	30 % to 70 % RH
Max. altitude:	2000 m / 6562 ft
Electrical
Power supply:	240 V~, 50 Hz
Power consumption:	< 4 W

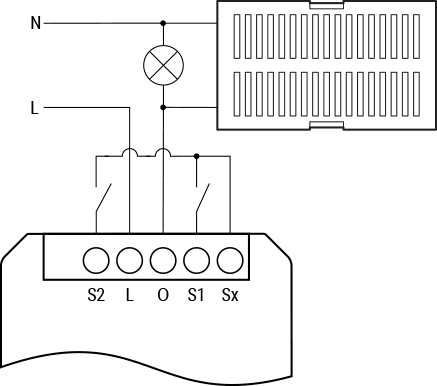

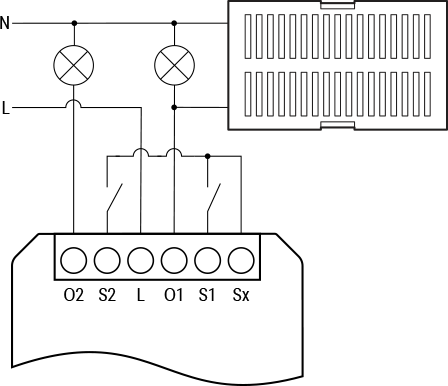

Terminals		Wires
L	Live (220-240 V~) terminal	L	Live (220-240 V~) wire
O, O1, O2	Load circuit output terminals	N	Neutral wire
S1, S2	Switch input terminals
Sx	Switch signal output terminal
