Shelly Wall Switch 2

Short description

Shelly Wall Switch 1, 2, and 4 are accessories for Shelly devices. They come with attachable holders, which are used for hooking the device up to the Wall Switch.

Compatibility:

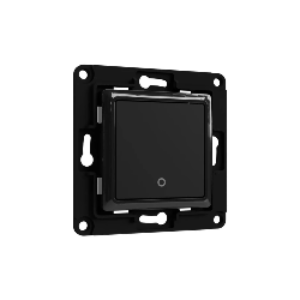

Shelly Wall Switch 1 comes with three attachable holders:

Holder 1 - compatible with Shelly 1/1PM
Holder 2 - compatible with Shelly Plus 1/1PM
Holder 3 - compatible with Shelly 1L / Shelly Dimmer 2

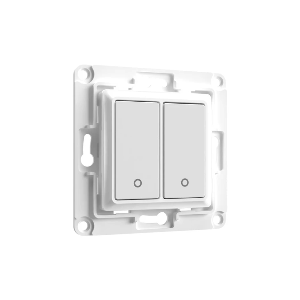

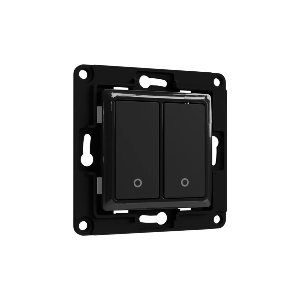

Shelly Wall Switch 2 comes with three attachable holders:

Holder 1 - for Shelly 2.5
Holder 2 - compatible with all devices from the Shelly Plus series
Holder 3 - compatible with Shelly 1L / Shelly Dimmer 2

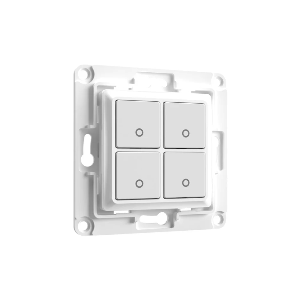

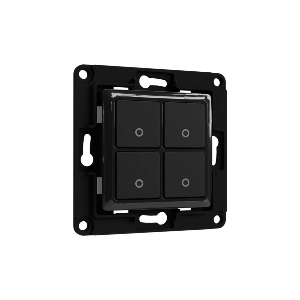

Shelly Wall Switch 4 comes with a single holder compatible with Shelly Plus i4 and all of the devices from the Shelly Plus series.

Main applications

Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college

Specifications

Type	Value
Physical
Size (HxWxD):	70x70x12 mm / in (without holder)
Material:	Plastic
Color:	White / Black
Environmental
Ambient temperature:	-20° C to 70° C / -5° F to 158° F
Humidity:	up to 85%
Electrical
Maximum switching voltage:	12 VDC / 18 VAC
Maximum switching current:	50 mA
