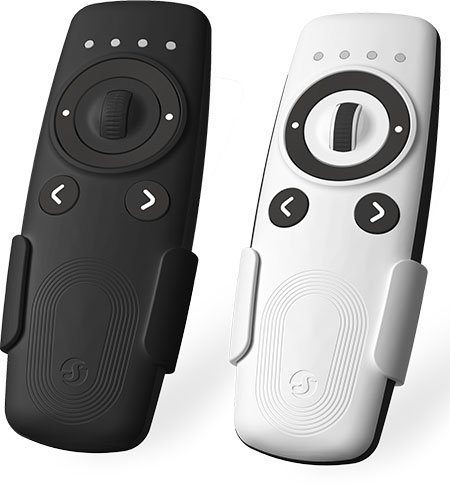

Shelly BLU Remote Control ZB

Device identification

Device name: Shelly BLU Remote Control ZB
Device model: SBRC-005B
Device Bluetooth ID: 0x0009

Short description

Effortlessly control your smart home with the Shelly BLU Remote Control ZB. This battery-powered remote lets you easily manage your smart home devices via Bluetooth and Zigbee. With four channels, intuitive command buttons, and a precision scroller wheel, it’s perfect for dimming lights or adjusting blinds and shutters.

Built-in gesture control powered by an accelerometer lets you interact with a simple wave or tilt, while the integrated buzzer and LED indicators provide instant feedback.

Pair seamlessly with Shelly Pro, Gen3, and Gen4 devices for easy control via Default Command Mapping. Shelly Plus devices can act as Bluetooth gateways, ensuring effortless connectivity across your home.

Main features

Universal control: Supports Bluetooth and Zigbee for flexible, low-latency control of your smart devices.
Seamless pairing: Connects easily with Shelly Pro, Gen3, and Gen4 devices via Default Command Mapping.
Multi-channel operation: Switch between four channels with dedicated buttons for seamless control of lights, relays, and covers.
Built-in gesture control: Integrated accelerometer lets you dim lights or move covers with a simple hand gesture.
Instant feedback: LED indicators and buzzer provide real-time response for every action.
Beacon mode: Activate the buzzer to help you quickly locate the remote when it goes missing.
Broad compatibility: Fully supports Home Assistant and any other device using the BTHome protocol, right out of the box.
One remote, many devices: Control multiple Shelly devices at once - adjust curtains, dim lights, or toggle relays from a single remote.

Use cases

Lighting control - Turn lights on or off, or fine-tune brightness using the scroll wheel or intuitive hand gestures.
Smart blinds & curtains - Open or close motorized shades with a simple button press, scroll, or gesture - like waving a magic wand.
Garage door access - Use the remote to open or close your garage door without reaching for your phone.
Location-based automation - Enable Beacon mode to trigger specific actions when you enter Bluetooth range.

Main applications

Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)…
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)…
Government/municipal
University/college

Integrations

Amazon Alexa supported capabilities

Doorbell EventSource

Google Smart Home supported traits

No

Samsung SmartThings supported capabilities

No

Connectivity

Bluetooth
Zigbee

User interface

Inputs

Navigation Buttons (< or >):
- Single press: Switches the active control channel (1-4). Channel change is indicated by a beep and flashing of the selected channel LED. If the remote hasn’t been used for a while, the first press will only indicate the current channel.
- Long press: Starts angle measurement using the built-in accelerometer. Upon release, the rotation angle is transmitted in the X, Y, and Z axes - one angle per axis.
- Press 3 times rapidly: Sends a Zigbee Group Identify command to all devices in the group linked to the current channel. The devices will identify themselves for 5 seconds, for example by blinking (bulbs) or flashing an LED.
- Press 4 times rapidly: Enters BLE pairing mode. Indicated by LEDs flashing from left to right. Success is shown with 5 slow flashes.
- Press 5 times rapidly: Enters Zigbee inclusion mode. Indicated by LEDs flashing right to left. Success is shown with 5 slow flashes. Pressing any button on the device will exit inclusion mode.
Ring Buttons (Left or Right):
- Single press: Sends a control command on the active channel.
- Press 3 times rapidly: Sends a Zigbee Group Identify command to all devices in the group linked to the current channel. The devices will identify themselves for 5 seconds, for example by blinking (bulbs) or flashing an LED.
- Press 4 times rapidly: Enters BLE pairing mode (same behavior as navigation buttons).
- Press 5 times rapidly: Enters Zigbee inclusion mode (same behavior as navigation buttons).
- Hold for 30 seconds: Performs a factory reset. Success is shown by all LEDs flashing once with a beep.
Scroll Wheel:
- Rotate up/down: Adjusts brightness, moves covers, or triggers other actions depending on the paired device.

Outputs

LED Indication (x4 separate channel LEDs):
- Channel change: Selected channel LED flashes twice with a beep when using < or > buttons.
- Command transmitted: Single flash on the LED of the selected channel.
- Device pick up: LED of the current channel flashes after inactivity if the accelerometer is active.
- BLE pairing mode: LEDs flash from left to right. Success is indicated by 5 slow flashes.
- Zigbee inclusion mode: LEDs flash from right to left. Success is shown with 5 slow flashes and a beep.
- Zigbee Identify: All LEDs flash rapidly 5 times.
- Group identify: LED of the selected channel flashes for 5 seconds while the devices on this channel are identifying themselves.
- Factory reset: All LEDs flash once with a beep.

Default Command Mapping

Component

Left Ring Button

Right Ring Button

Scroll Wheel Up

Scroll Wheel Down

Relay Channel

Off

On

N/A

Cover

Close

Open

Step Up

(behavior depends on chosen mode)

Full bottom-to-top rotation = 3 seconds of movement

or

Cover moves while the scroll wheel is being rotated

Step Down

(behavior depends on chosen mode)

Full top-to-bottom rotation = 3 seconds of movement

or

Cover moves while the scroll wheel is being rotated

Dimmer

Off

On

Dim Up

Brightness increases while the scroll wheel is being rotated

Dim Down

Brightness decreases while the scroll wheel is being rotated

*Supported on specific Shelly Gen3, Gen4, and Pro devices.

How to set up Default Command Mapping

https://youtu.be/7PfW4t75l78

Specifications

Quantity	Value
Physical
Size (HxWxD):	129x47x24 mm / 5.08x1.85x0.94 inch
Weight:	63 g / 2.22 oz (without batteries) 85 g / 3.00 oz (with batteries)
Shell material:	Plastic
Shell color:	White Black
Environmental
Ambient working temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity:	30 % to 70 % RH
Max. altitude:	2000 m / 6562 ft
Electrical
Power supply:	Batteries
Battery type:	2x АAA 1.5 V
Estimated battery life:	approx. 2 years (depending on batteries used, device usage, and network connection strength)
Sensors, meters
Accelerometer	Yes
Radio
Bluetooth
Protocol:	5 (LE)
RF band:	2402 - 2480 MHz
Max. RF power:	< 8 dBm
Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Zigbee
Protocols:	802.15.4
RF bands:	2405 to 2480 MHz
Max. RF power:	< 8 dBm
Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Microcontroller unit
CPU:	EFR32MG27
Flash:	768 kB
Firmware capabilities
Schedules:	No
Webhooks (URL actions):	No
Scripting:	No
MQTT:	No
Encryption:	Yes
Other
Supported devices	Shelly Gen3 / Gen4 series Shelly Pro series Shelly Plus series (as Bluetooth Gateway)
