A compact energy meter, allowing you to monitor the energy consumption of your connected devices up to 16 A. Equipped with Shelly chip and multiprotocol connectivity support: Wi-Fi, Zigbee, Bluetooth, Matter.
*This is only an energy meter. There is no relay inside.
3
3 Years Manufacturer Warranty
3 Years Warranty
This warranty covers any issues with the hardware or firmware that exist at the time of purchase or that appear within the warranty period. The warranty includes all parts of the hardware, such as the body, mechanics, and display (if applicable). However, it does not cover consumable items like batteries or accessories, as their lifespan depends on how much they are used.
Multiprotocol connectivity: Choose from Wi-Fi, Zigbee and Bluetooth
Matter-certified
Supports up to 16 A at 240 VAC
Perfect to retrofit behind existing wall switches and sockets *
Wi-Fi and Zigbee range extender & Bluetooth gateway
Supports schedules, scenes and local actions
Supports scripting, HTTPS, MQTTS, Inbound and Outbound Web Sockets
Wide compatibility with 3rd party home automation systems and apps, including the Shelly Smart Control app
Shelly EM Mini Gen4
Device identification
Device name: Shelly EM Mini Gen4
Device model: S4EM-001PXCEU16
Device SSID: ShellyEMMiniG4-XXXXXXXX
BLE model ID: 0x1033
Short description
Shelly EM Mini Gen4 is a small form factor energy meter. Enhanced with all the gen3 firmware flexibility and also some of EM type Shelly devices, it provides professional integrators with additional options for end-customer solutions. It can work standalone in a local Wi-Fi network, or it can also be operated through cloud home automation services through MQTT, HTTP, and WebSocket. All inbound connections support TLS. The device is an improved version of Shelly PM Mini Gen3 with a more advanced processor and Zigbee connectivity.
Shelly EM Mini Gen4 can be accessed, set up, and monitored remotely by the User, as well as the Device can access and communicate with an automation system, as long as they are in the same network infrastructure.
The Device has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings. The device has multi-protocol wireless MCU which provide Zigbee and Bluetooth connectivity ensuring a secure connection.
This device is compatible with Matter.
Main features
Power Meter: Designed as a small form factor power meter, allowing you to monitor the power consumption of connected devices.
Enhanced Firmware Flexibility: Inherits the flexibility of gen4 firmware, providing professional integrators with additional options for end-customer solutions.
Compact size: EM Mini Gen4 can be connected in very tiny spaces, unreachable for other devices.
Improved Processor: Upgraded with an improved processor and Zigbee connectivity for enhanced performance.
Zigbee Connectivity: Zigbee is available for inclusion purposes, which may be useful during the setup process.
Remote Access: Can be accessed, set up, and monitored remotely by the user, as well as communicate with an automation system within the same network infrastructure.
Embedded Web Interface: Features an embedded web interface for monitoring, control, and adjustment of settings.
BLE Gateway: Bridge between your Shelly BLU devices and the wider Shelly ecosystem. It receives Bluetooth signals and sends them to the cloud or locally to another non-bluetooth device.
Zigbee Range extender for IoT devices: A Zigbee extender is employed to expand the reach of your Zigbee network by receiving your Zigbee signal, enhancing its strength, and then transmitting the enhanced signal over a wider area.
WiFi Range extender for IoT devices: A WiFi extender is employed to expand the reach of your WiFi network by receiving your current WiFi signal, enhancing its strength, and then transmitting the enhanced signal over a wider area.
Wide range of integrations: The device can be integrated with 3rd party home systems, documented HTTP API, MQTT(s), Web Hooks over HTTP and HTTPS, UDP
Use cases
Power Consumption Monitoring: The primary purpose is to monitor the power consumption of connected devices in real-time. This information can be valuable for understanding energy usage patterns and making informed decisions to reduce consumption.
Energy Efficiency Optimization: Identify energy-hungry appliances and optimize their usage to improve overall energy efficiency in your home or workspace.
Appliance Health Check: Keep track of the power usage of individual appliances to assess their health and performance over time. Sudden spikes or changes in power consumption may indicate issues with the appliance.
Cost Management: With the knowledge of power consumption, you can estimate the cost of running specific devices and manage your electricity expenses more effectively.
Space-Efficient Retrofitting: Integrate the device into standard electrical wall boxes, behind power sockets, light switches, or other locations with limited space.
Remote Monitoring: Like the Shelly PM Mini Gen3, the EM Mini Gen4 also supports remote access. This allows you to monitor power consumption even when you're away from home. The device shares similarities to Shelly EM Gen3
Press and hold for 5 seconds to enable Device access point and Bluetooth connection.
Press and hold for 10 seconds to factory reset the Device.
Press 5 consecutive times to switch the Device from Matter firmware (default) to Zigbee.
Press 3 consecutive times to put the Device in Zigbee inclusion mode. The Device stays in this mode for 2 minutes and you can find it in the Home Automation platform through the Zigbee Hub.
Outputs
LED (monocolor) indication
AP (Access Point) enabled and Wi-Fi disabled: 1 second ON / 1 second OFF
Wi-Fi enabled, but not connected to a Wi-Fi network: 1 second ON / 3 seconds OFF
Connected to a Wi-Fi network: Constantly ON
Cloud is enabled, but not connected: 1 second ON /5 seconds OFF
Connected to Shelly Cloud: Constantly ON
OTA (Over the Air Update): ½ sec ON / ½ second OFF
Button pressed and held for 5 seconds: ½ second ON / ½ second OFF
Button presses and held for 10 seconds: ¼ second ON / ¼ second OFF
The list above starts with the initial device status and the lowest priority. Every next state cancels the previous one.
Specifications
Quantity
Value
Physical
Size (HxWxD):
29x34x16 mm / 1.34x1.11x0.63 inch
Weight:
13 g / 0.46 oz
Screw terminals max torque:
0.4 Nm / 3.5 lbin
Conductor cross section:
0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length:
6 to 7 mm / 0.24 to 0.28 in
Mounting:
Wall console
Shell material:
Plastic
Shell color:
White
Terminals color:
Grey (Mouse Grey)
Environmental
Ambient working temperature:
-20 °C to 40 °C / -5 °F to 105 °F
Humidity:
30 % to 70 % RH
Max. altitude:
2000 m / 6562 ft
Electrical
Power supply:
110-240 V~
Power consumption:
< 1 W
External protection:
Tripping characteristic B or C, max. 16A max. rated current, min. 6 kA interrupting rating, energy limiting class 3
Sensors, meters
Voltmeter (AC):
110-240 V~ 50/60 Hz
Voltmeter accuracy:
±1%
Ammeter (AC):
0 - 16A
Ammeter accuracy:
±1%
Power and energy meters:
Active power
Active energy
Measurement data storage:
At least 10 days of 1 min data resolution
Data export:
CSV for PQ recorded values
JSON format export through RPC
Output circuits ratings
Power measurement:
Yes
Max. measurement voltage:
240 VAC
Max. measurement current:
16 A
Max. measurement power:
3840 W
Radio
Wi-Fi
Protocol:
802.11 b/g/n
RF band:
2412 - 2472 МHz
Max. RF power:
< 20 dBm
Range:
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth
Protocol:
5.0
RF band:
2402 - 2480 MHz
Max. RF power:
< 4 dBm
Range:
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Zigbee
Protocol:
802.15.4
RF bands:
2400 to 2483.5 MHz
Max. RF power:
< 20 dBm
Range:
Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions)

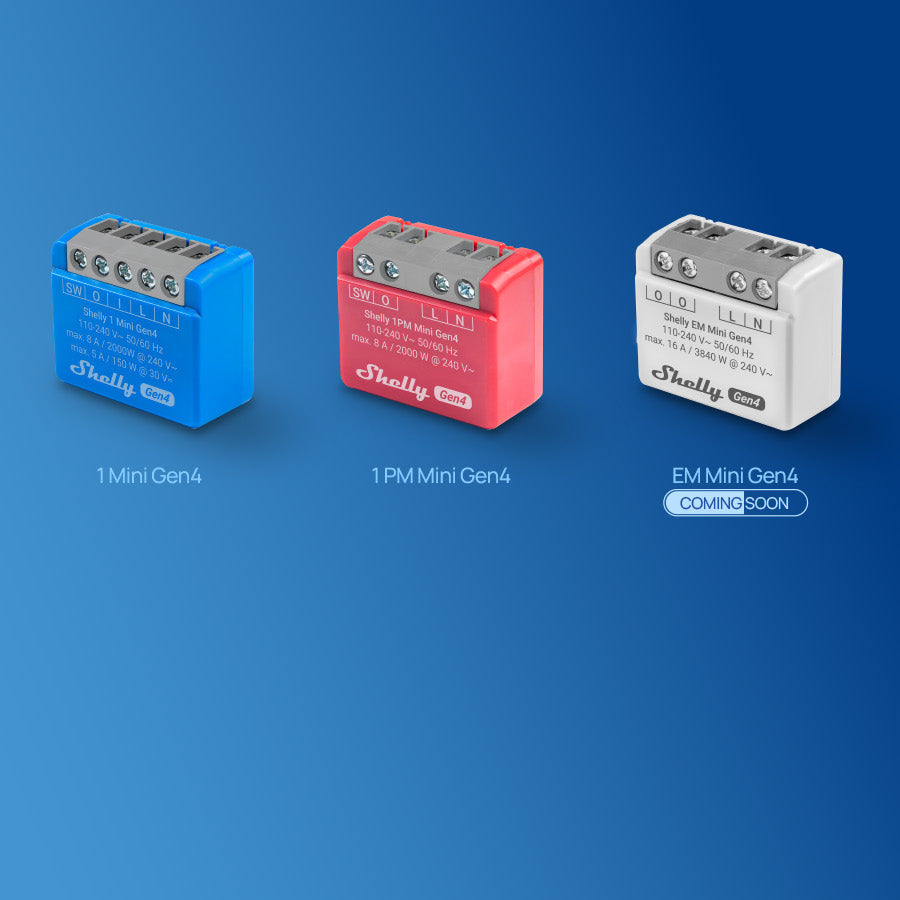

Designed with convenience in mind, these mini devices have all the capabilities of Shelly's standard smart devices fit into a compact form factor.
With an improved processor and 8 MB of memory, the devices deliver enhanced efficiency, responsiveness, and seamless operation.
Each Mini Gen4 device is Matter-certified and supports multi-protocol connectivity, allowing greater flexibility within your smart home setup.
Why Shelly EM Mini Gen4?
Size does matter!
Shelly's mini devices open up a world of possibilities, allowing you to seamlessly integrate them into even the most tightly packed spaces and wall sockets. The Shelly EM Mini Gen4 tracks the energy consumption of the connected appliance or device, giving you a clearer picture of how much energy each device is using, helping you to reduce waste and optimize your costs.
Multiprotocol connectivity
Highly compatible! Choose the best protocol for your smart home—Zigbee, Wi-Fi, or Bluetooth
Matter certified
Integrates into any Matter ecosystem
Energy Metering
Provides precise monitoring of the energy consumption of the connected appliance or device
Smart schedules
Set custom schedules based on your daily agenda
Smart scenes
Set custom scenes by combining Shelly EM Mini Gen4 with your other devices
Scripting
Shelly EM Mini Gen4 fully supports mjS scripting, allowing you to create custom features and functionalities
Solutions
Preventative monitoring
When an electrical appliance is damaged, it doesn't simply stop working. Usually, it increases the amount of energy used in an attempt to compensate for its operational capacity. Since there is no visible difference in its performance, it might take months before you can identify a problem, leading to inefficiency and wasted energy. Shelly EM Mini Gen4 will fit anywhere you need it to and can immediately report the increase in energy consumption, saving you additional expenses on repairs or equipment replacement.
Power consumption analysis for cost optimization
Power consumption analysis for cost optimization
All connected electrical appliances we don't use during the night or forgotten switched-on lights generate unnecessary energy. Shelly EM Mini Gen4's smart energy metering will help you identify and eliminate any redundant energy consumption from each connected appliance around your home or facility. Together with smart scenes, you can use Shelly EM Mini Gen4's data to trigger scenarios, such as turning off appliances during a spike to protect them or during the night to save energy. *
*This is only an energy meter. There is no relay inside.
