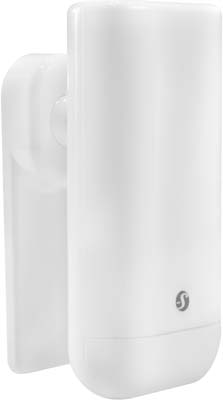

Shelly Motion 2

Device identification

Device name: Shelly Motion 2
Device model: SHMOS-02
Device SSID: shellymotion2-XXXXXX

Short description

Shelly Motion 2 (the Device) is a high-sensitivity, ultra-low power consumption Wi-Fi motion sensor, which also features light and temperature metering. The built-in light and temperature sensors provide additional opportunities for home or office automation. Shelly Motion 2 also has an integrated accelerometer for tamper protection and features vibration detection. The built-in 6500 mAh rechargeable Li-ion battery allows the Device to stay connected to the Internet in standby mode for up to 3 years, and in active transmission (approx. 6 hours/day motion detection) estimated between 12 and 18 months without recharging.

Main applications

Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
University/college

Integrations

Alexa

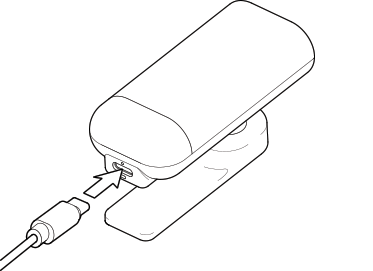

USB Type-C port

To supply power to the Device.
Can be used to recharge batteries inside the Device.

Connectivity

Wi-Fi

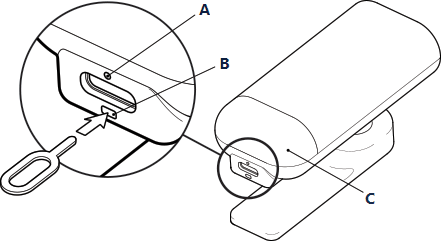

User interface

Inputs

Reset button (B)

Outputs

Charging indicator (A)
LED indication (C)
- Blue: AP mode
- Blue brief flash: Settings changed
- Blue flashing: Firmware update
- Red brief flash: Motion detected and reported
- Red long flash: Error while performing firmware update.
- Green brief flash: Unreported motion detection (the Device is not connected, or motion detection is disabled)
- Red, green and blue flashing sequentially: Tamper detection or Device started
- Cyan brief flash: Motion detection while in AP mode.

Specifications

Type	Value
Physical
Size (HxWxD):	89.3x41.4x22.9 mm / 3.52x1.63x0.90 inch (without stand) 89.3x41.4x47.9 mm / 3.52x1.63x1.89 inch (with stand)
Weight:
Mounting:	Wall mounting (indoor use only, use screws with a head diameter between 5-8 mm / 0.20-0.31 inch)
Shell material:	Plastic
Color:	White
Environmental
Ambient temperature:	-10 °C to 50 °C / 14 °F to 122 °F
Humidity	30 % to 70 % RH
Electrical
Power supply, Batteries	Li-ion 3.7 V / 6500 mAh
Estimated battery life	12-18 months (motion detection) Up to 3 years (stand by)
Power supply, USB	Type-C (power adapter and cable not included)
Sensors
Temperature sensor:	Yes
Light sensor:	Yes
Motion sensor:	Yes (detection range: 9 m / 30 ft)
Radio
RF band:	2401 - 2495 MHz
Max. RF power:	<20 dBm
Wi-Fi protocol:	802.11 b/g/n
Wi-Fi Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
MCU
CPU:	SiLabs
Flash:	6 MB
Firmware capabilities
Schedules:	Yes (up to 20)
Webhooks (URL actions):	13 with 5 URLs per hook
MQTT:	Yes
CoAP:	Yes
