Device identification
Device type: Portable EVSE
Device model: EVE01-11R
Main features
-
Auto balance (dynamic load management)
-
Adjustable output current (6 - 16 A)
-
Built-in electrical protection
-
Ingress protection: IP65 for the control box
-
No hub required
-
Home and travel-ready
Connectivity
-
Wi-Fi
-
Bluetooth
Specifications
| Specification | Value |
|---|---|
| Model | EVE01-11R |
| Power Supply | (3P + N + PE), 380-400V AC, 50/60Hz |
| Power Plug | CEE Plug (3 Phase, 16A) with NTC |
| Selectable Current | 6A to 16A |
| Rated Power | Up to 11kW |
| Input Plug Cable | 5x2.5mm² + 2x0.5mm² |
| Charging Cable | 5x2.5mm² + 1x0.5mm² |
| Cable Material | TPU Rubber |
| Vehicle Connector | Type 2 |
| Start Mode | Shelly Smart Control app |
| Ingress Protection | IP65 |
| Total Product Length | 5.6 meters |
| RCD Type | Type A (30mA AC) + 6mA DC |
| Safety Protection | CP Diode Short Circuit Protection, Surge protection Relay Adhesion Protection, Over current protection, Over/under voltage protection, Ground protection, Over temperature protection, Current Leakage protection |
| Mating Cycles | Plug in / Pull out > 10 000 times |
| Earthing System | TN-C, TN-S |
| Certificate | CE, RoHS |
| Test Standard | EN IEC 62752, EN IEC 62196, EN 50620 / IEC 62893 |
| Impact Protection | IK08 |
| Working Temperature | -25 °C to 45 °C |
| Working Altitude | < 2 000 meters |
| Working Humidity | 5% to 95% (no condensation) |
Power supply requirements
| Recommended cable cross-section | 3-phase 11kW, 16A per phase: 4mm² | |
| Short-circuit Protection | Circuit Breaker: | Fuse: |
| Rated voltage | 3-phase: 3x220/380V-3x240/415V AC | |
Safety functions
-
CP Diode Short Circuit Protection
-
Surge protection
-
Relay Adhesion Protection
-
Over current protection
-
Over/under voltage protection
-
Ground protection
-
Over temperature protection
-
Current Leakage protection
Components overview
-
Power outlet
-

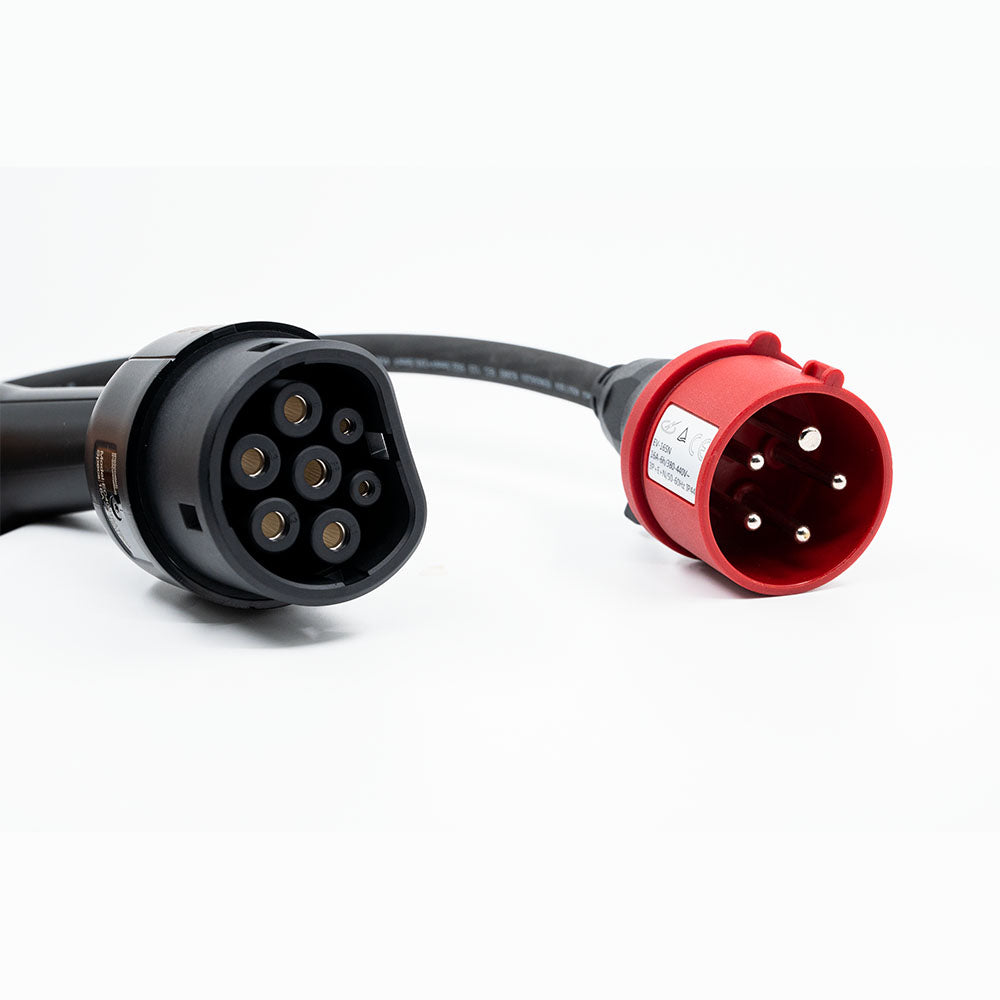

Power plug
-

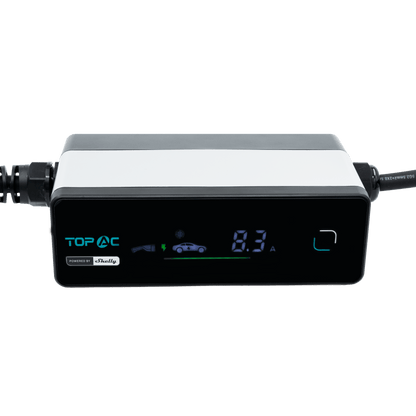

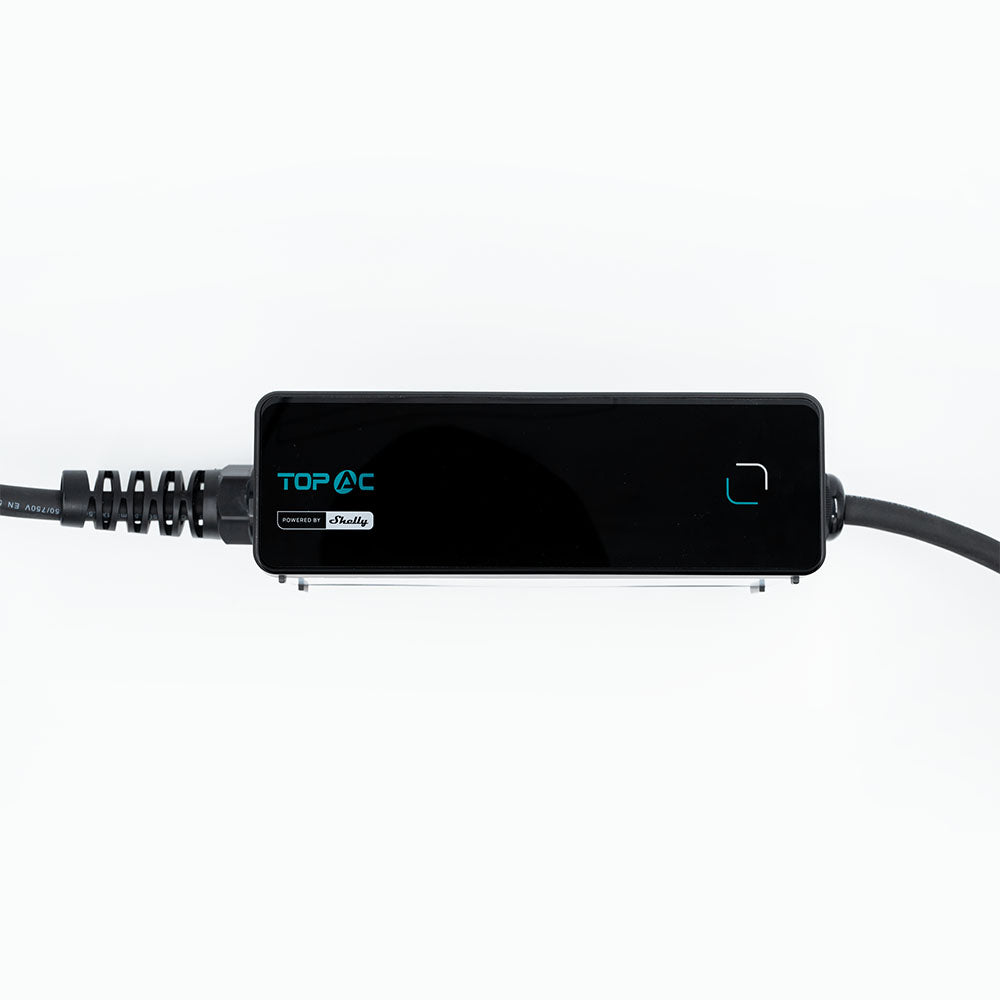

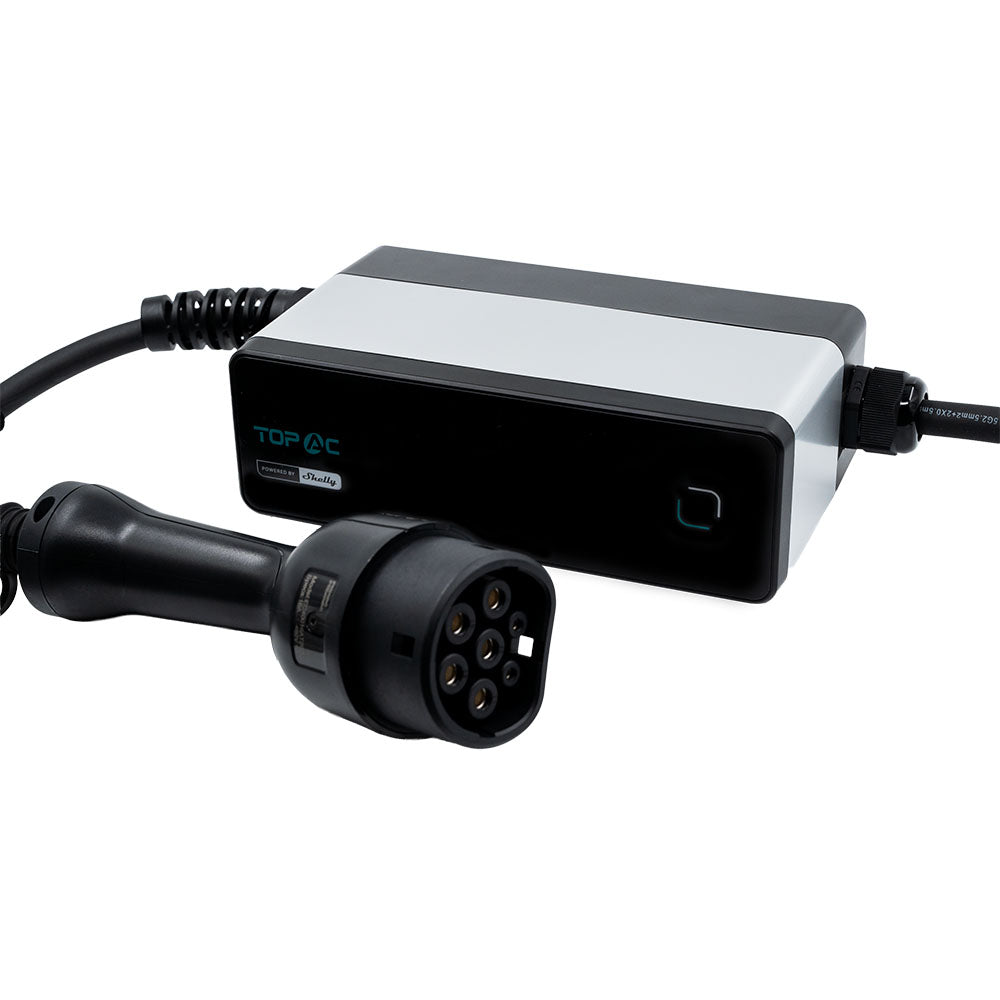

Portable EV charger
-

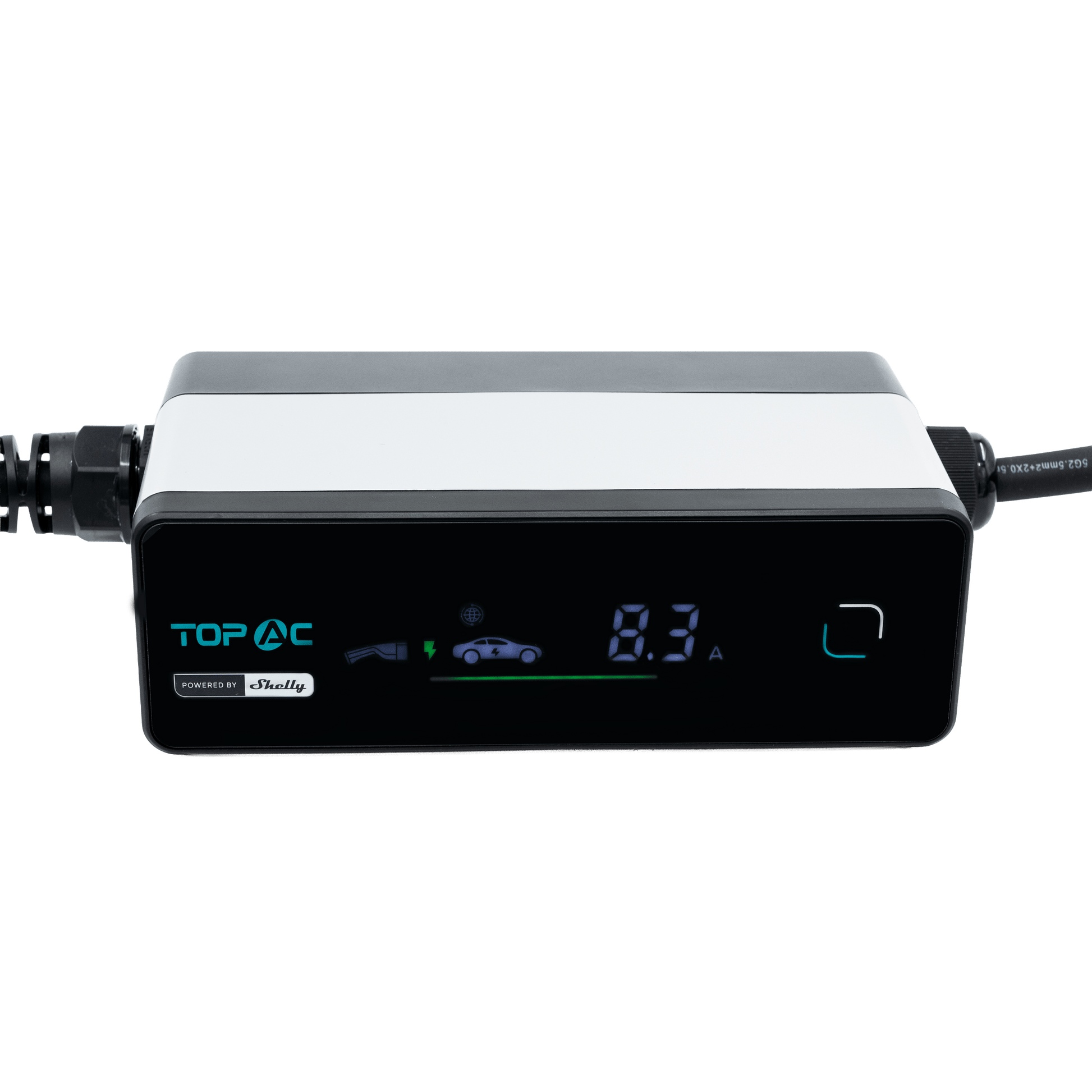

Control panel
-

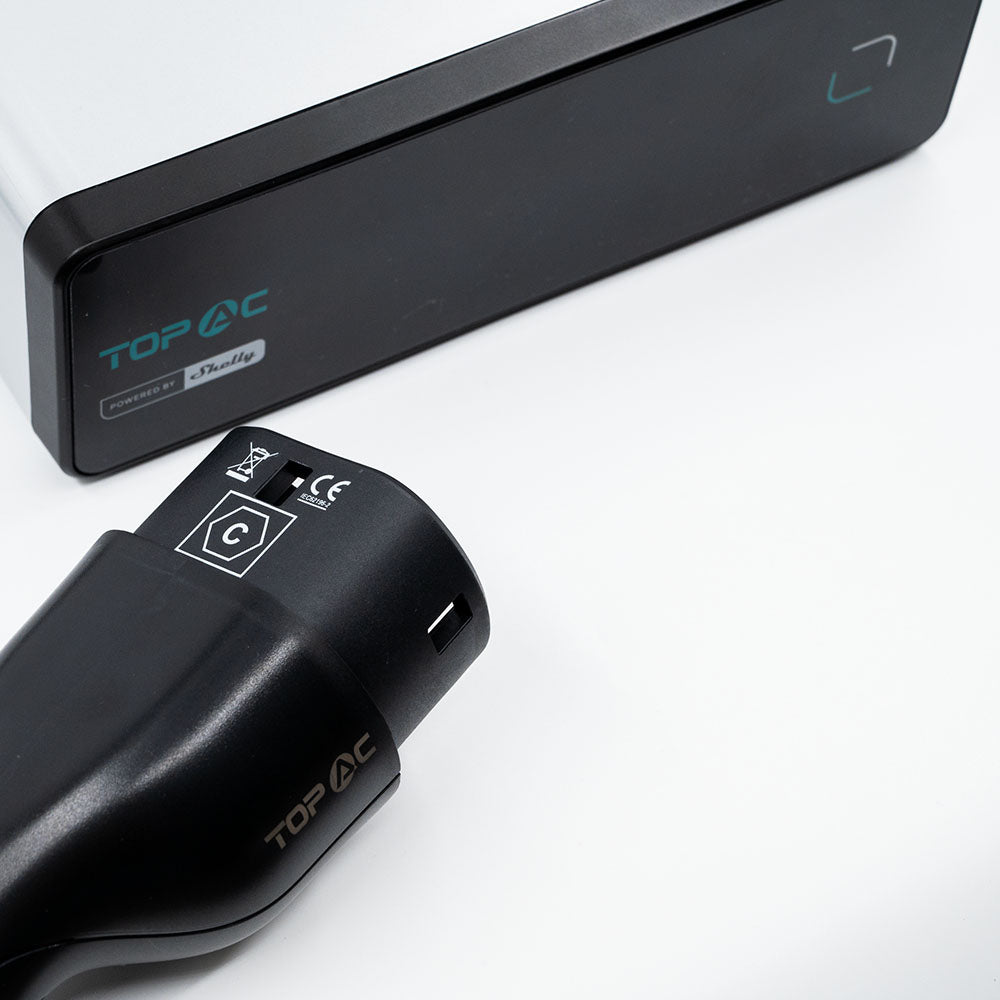

Type 2 charging connector
-
Vehicle charging socket
Auto balance
Auto balance manages charging current based on total system consumption, ensuring it does not exceed a preset Total current limit, with a 2A safety reserve included.
Auto balance has two modes, depending on whether the portable charger is monitored by the energy meter or not. In the default mode, the portable charger is part of the monitored electrical system.
Requires a Shelly EM device of Gen2, Pro, or newer installed and connected to the same Wi-Fi network.

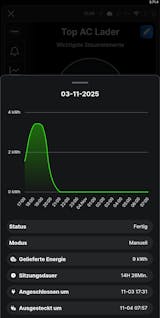

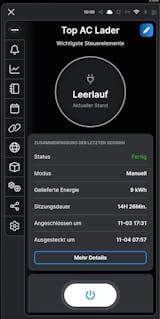

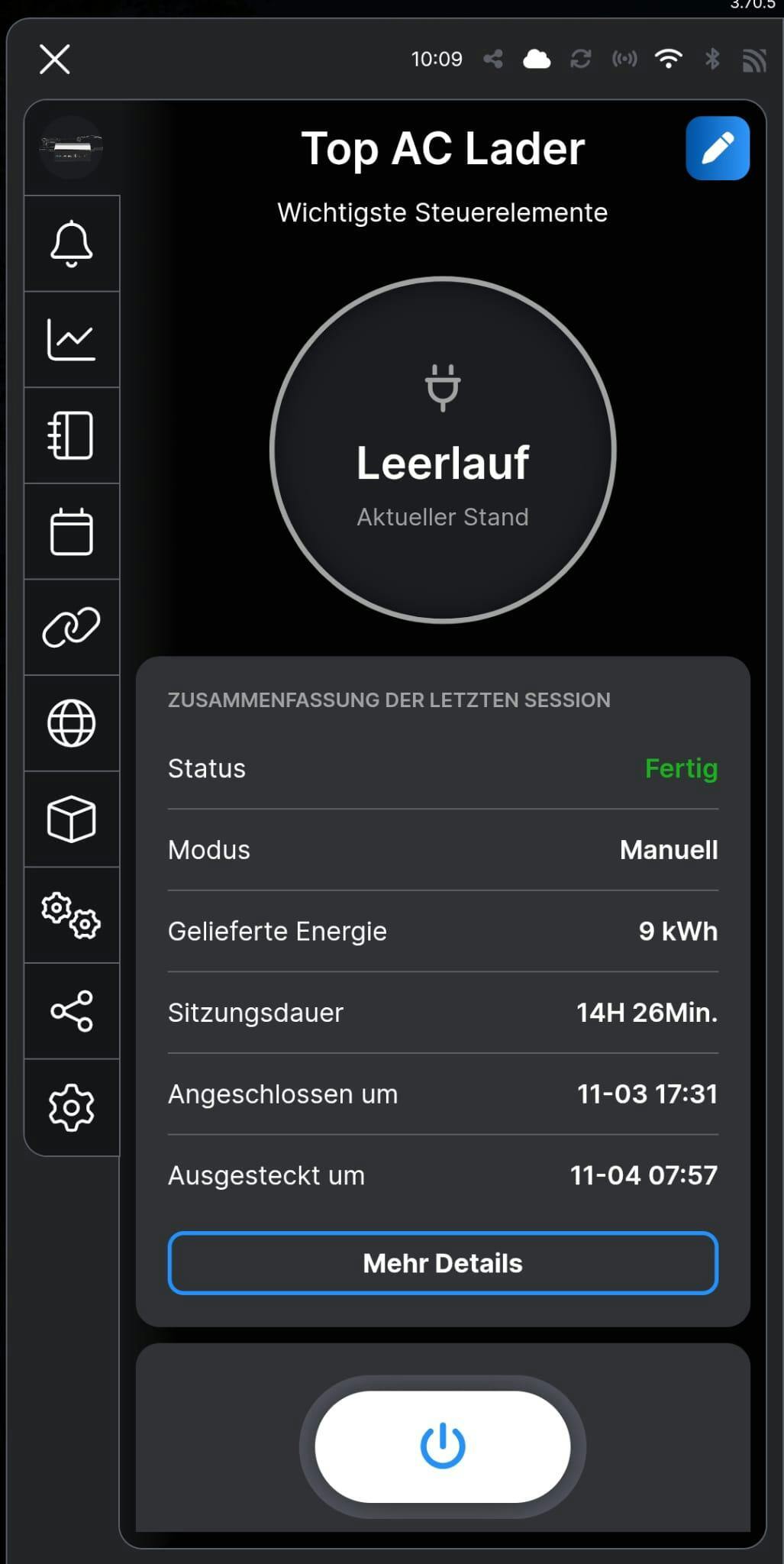

Shelly Smart Control
Adding the device to Shelly Smart Control
Shelly Web user interface
Compliance
EVE01-11R multilingual EU declaration of conformity.pdf
Printed user guide
EVE01-11R Bruks- och säkerhetsanvisning.pdf
EVE01-11R Käyttö- ja turvallisuusohje.pdf
Disposal and recycling
Do not dispose of the product in household waste. Recycle the product to prevent environmental and health damage and to promote resource conservation. Dispose of the product at an appropriate waste collection point at your own responsibility.
Resellers, from which the Device was purchased, are required to accept Waste Electrical and Electronic Equipment (WEEE) free of charge for proper disposal.
Some electronic products may store personal data. The user is responsible for deleting this data before disposing of the Device. For deletion, reset the device to its factory settings.
