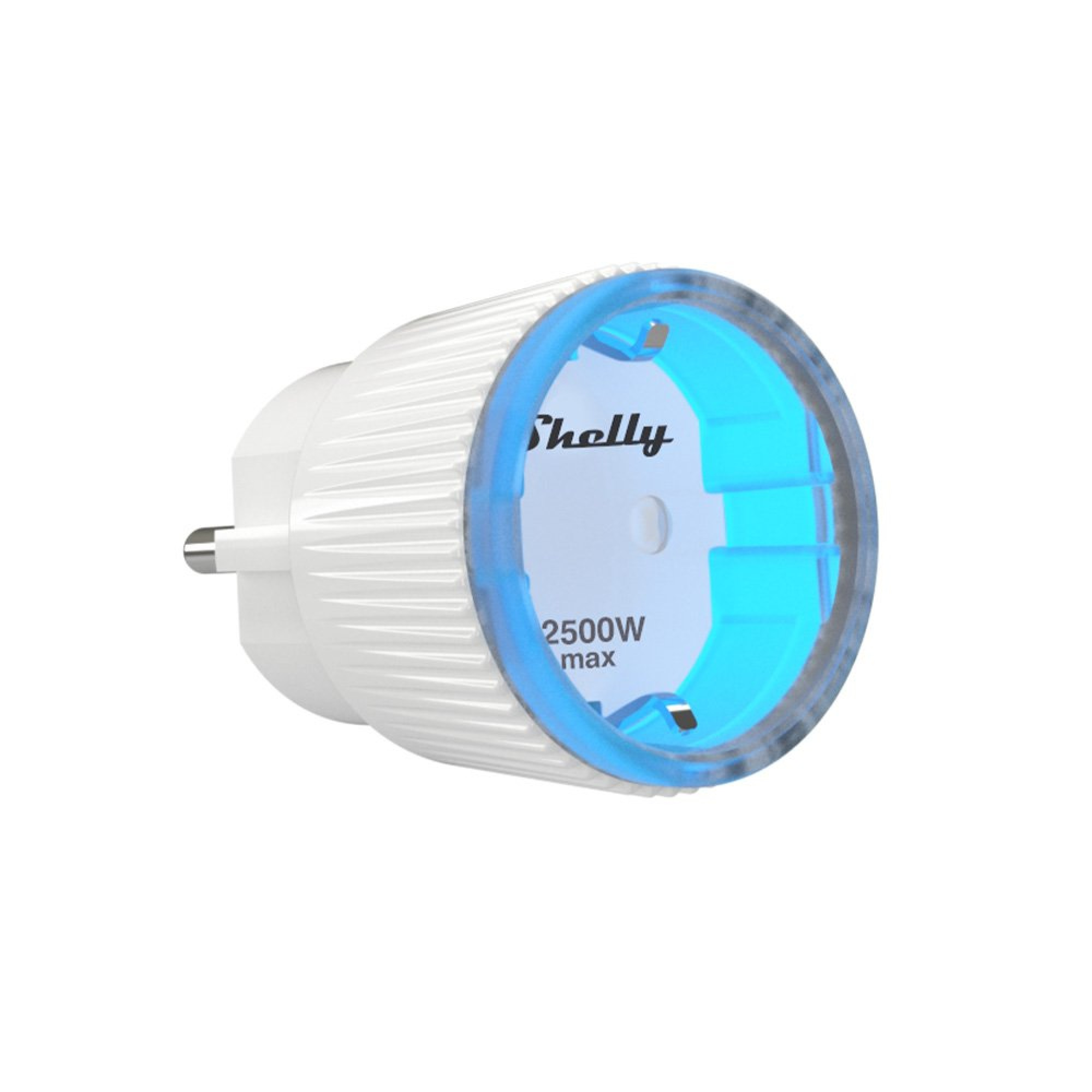

What is Shelly Plug S?
Wi-Fi operated power outlet
Shelly Plug can automatically monitor and control lighting, heating and any other connected electrical appliance at home, no matter where you are. When an electric appliance, or a lamp, is plugged into Shelly Plug, you can switch it on and off through the Shelly Cloud app at any time and anywhere.
Features
-
No HUB required.
-
With Shelly Plug S you can control a wide range of devices and appliances.
-
Shelly Plug S has an integrated precise power meter.
-
It can be integrated to work with all other Shelly devices.
-
Compatible with Android, iOS, Amazon Alexa, Google Assistant, and home automation servers using MQTT, CoAP, and REST API.
-
Easily make your Arduino project live and usable in your automation project.
Specification
| POWER | |
| Power supply AC | 110-230 V ±10%, 50/60 Hz |
| Power supply DC | No |
| SPECIAL FUNCTIONS | |
| Device temperature protection | Yes |
| Overload protection | Yes |
| Power measurement | Yes |
| FEATURES | |
| Maximum load | 10 A |
| Operational temperature | -10 ºC to +50 ºC |
| Device power consumption | < 1 W |
| Intelligent On/Off | Yes |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| CONNECTIVITY | |
| Wireless/WiFi Protocol | 802.11 b/g/n |
| Radiofrequency | 2400 – 2484 MHz |
| Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| DIMENSIONS | |
| Size | 46 mm x 69 mm |
