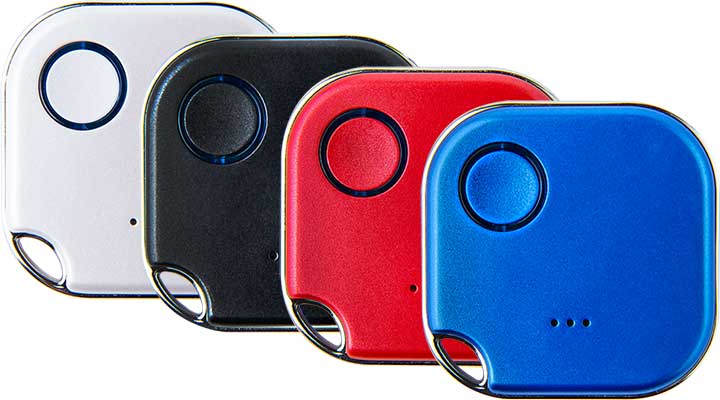

Shelly BLU Button1
Device identification
Device name: ShellyBLU Button1
Device model: SBBT-002C
Short description
Shelly Blu Button 1 (the Device) is a Bluetooth button, which allows you easily activate and deactivate devices or scenes with just a click.
Features
Long battery life
LED indication
Buzzer
Beacon mode
Encrypted mode
Main applications
Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college
Connectivity
Bluetooth
User interface
Inputs
-
One push button
Press shortly once, twice, or three times, or press and hold for about 2 sec to emit a signal
Press and hold for 10 sec to pair ShellyBLU Button1 with another Bluetooth device.
Press and hold for 30 sec to factory reset (possible only shortly after inserting the battery).
Outputs
Red LED indication
Buzzer
Specifications
Type |
Value |
|---|---|
Physical | |
Size (HxWxD): |
36x36x6 mm ±0.5 mm / 1.44х1.44х0.25 in ±0.02 in |
Weight with the battery: |
9 g ±1 g / 0.30 ±0.05 oz |
Shell material: |
Plastic |
Color: |
White, black, red, blue |
Environmental | |
Ambient temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
Humidity: |
30 % to 70 % RH |
Electrical | |
Power supply: |
1x 3 V CR2032 battery (included) |
Battery life: |
Battery life: up to 2 years |
Radio | |
RF band: |
2400 - 2483.5 MHz |
Max. RF power: |
<4 dBm |
Bluetooth Protocol: |
4.2 |
Bluetooth Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
MCU | |
CPU: |
EFR32BG22 |
Flash: |
32KB RAM |
Firmware capabilities | |
Encryption: |
AES encryption (CCM mode) |
Beacon mode: |
Yes |
Multi-click support: |
Up to 4 possible actions |
Shelly Smart Control
Troubleshooting
...
Components and APIs
Compliance
Shelly Blu Button1 multilingual EU declaration of conformity 2025-07-23.pdf
Shelly BLU Button 1 UK PSTI ACT Statement of compliance.pdf
Battery material safety data sheet
Printed user guide
Shelly BLU Button 1 multilingual printed user and safety guide.pdf
