Device identification
-
Device name: ShellyBLU Button1
-
Device model: SBBT-002C
Short description

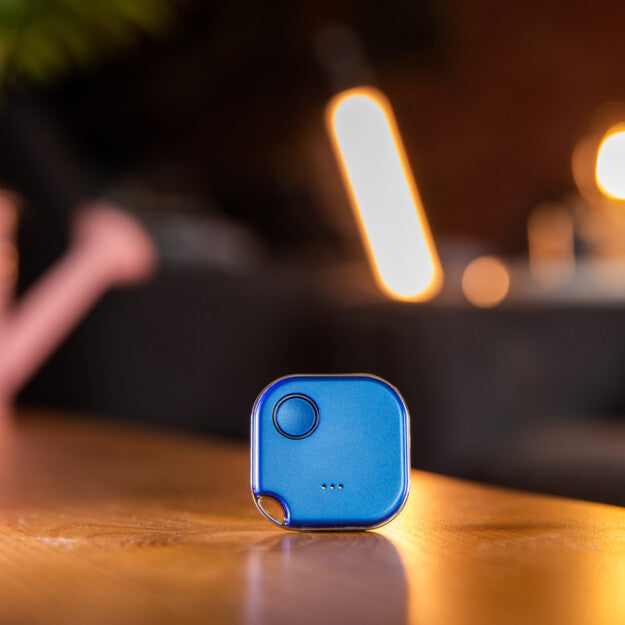

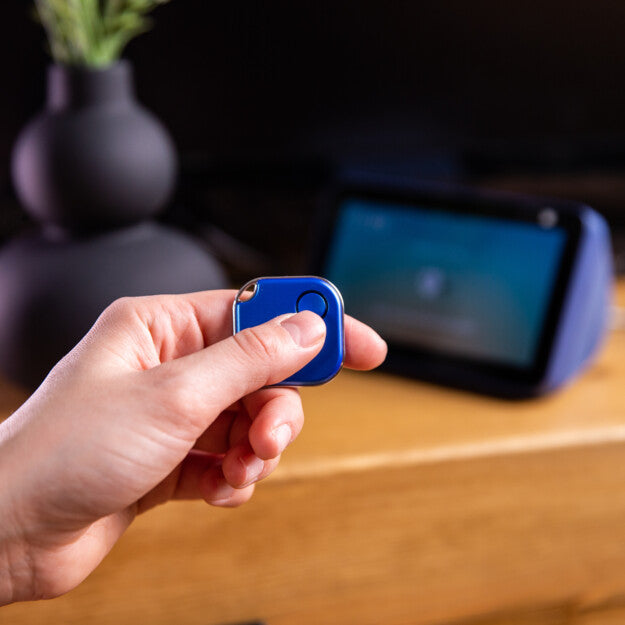

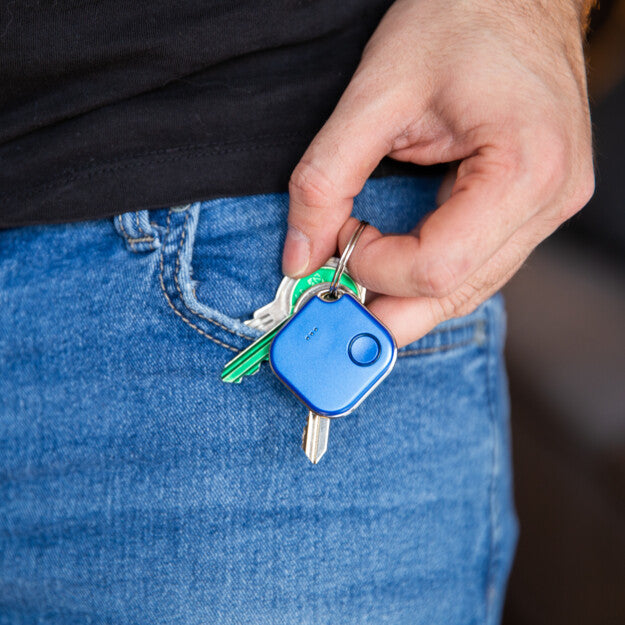

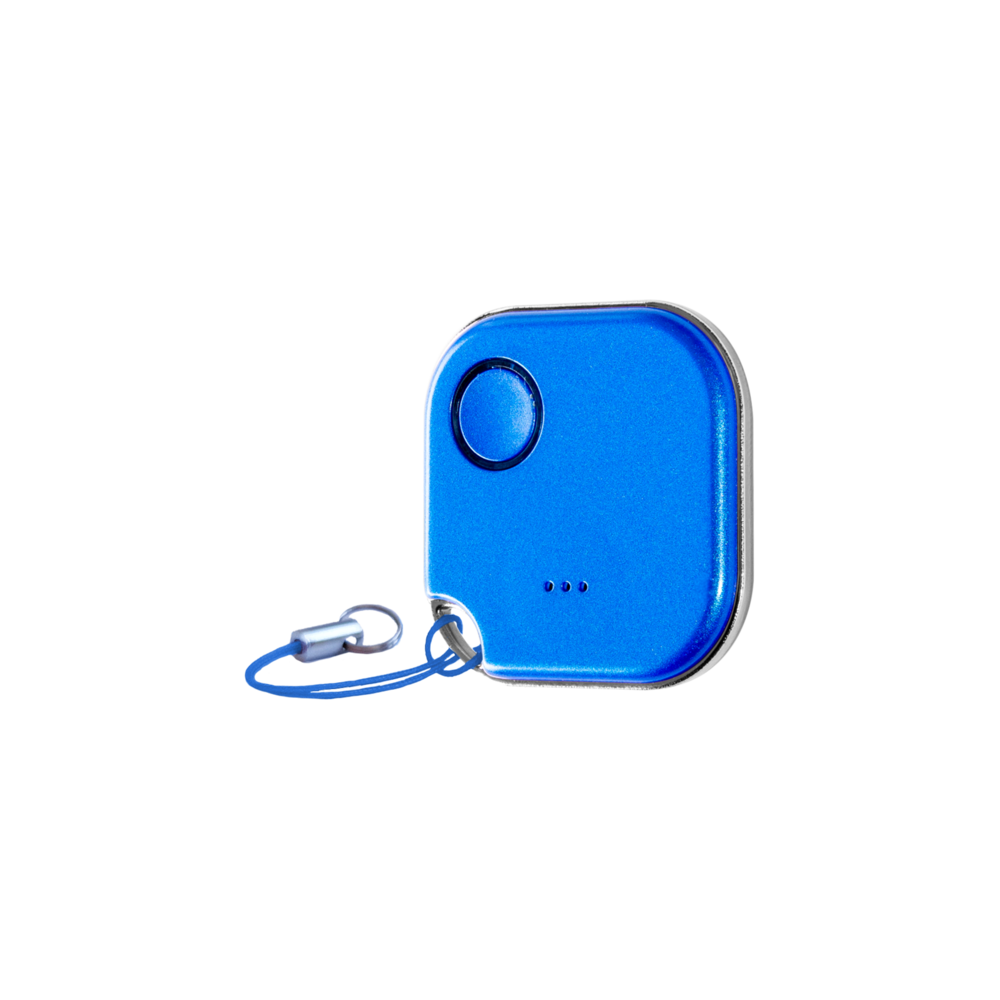

Shelly Blu Button 1 (the Device) is a Bluetooth button, which allows you easily activate and deactivate devices or scenes with just a click.
Features
-
Long battery life
-
LED indication
-
Buzzer
-
Beacon mode
-
Encrypted mode
Main applications
-
Residential
-
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
-
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
-
Government/municipal
-
University/college
Connectivity
-
Bluetooth
User interface
Inputs
-
One push button
-
Press shortly once, twice, or three times, or press and hold for about 2 sec to emit a signal
-
Press and hold for 10 sec to pair ShellyBLU Button1 with another Bluetooth device.
-
Press and hold for 30 sec to factory reset (possible only shortly after inserting the battery).
-
Outputs
-
Red LED indication
-
Buzzer
Specifications
| Type | Value |
|---|---|
| Physical | |
| Size (HxWxD): | 36x36x6 mm ±0.5 mm / 1.44х1.44х0.25 in ±0.02 in |
| Weight with the battery: | 9 g ±1 g / 0.30 ±0.05 oz |
| Shell material: | Plastic |
| Color: | White, black, red, blue |
| Environmental | |
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity: | 30 % to 70 % RH |
| Electrical | |
| Power supply: | 1x 3 V CR2032 battery (included) |
| Battery life: | Battery life: up to 2 years |
| Radio | |
| RF band: | 2400 - 2483.5 MHz |
| Max. RF power: | <4 dBm |
| Bluetooth Protocol: | 4.2 |
| Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
| MCU | |
| CPU: | EFR32BG22 |
| Flash: | 32KB RAM |
| Firmware capabilities | |
| Encryption: | AES encryption (CCM mode) |
| Beacon mode: | Yes |
| Multi-click support: | Up to 4 possible actions |
