Device identification
-

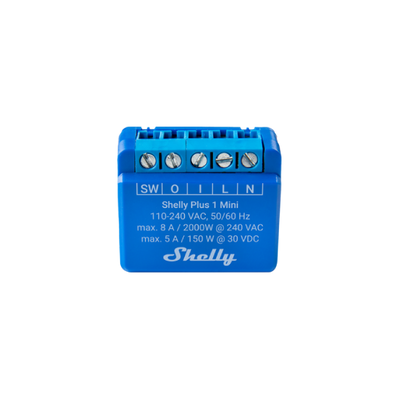

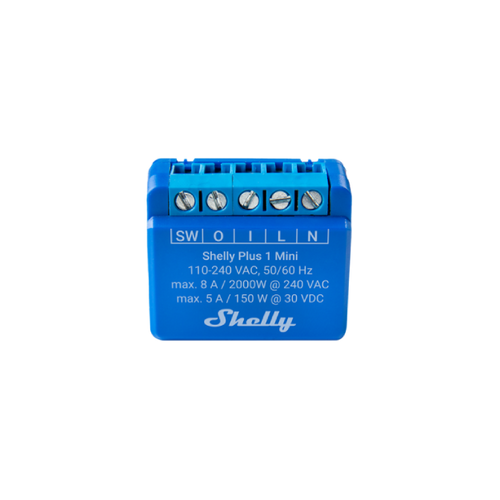

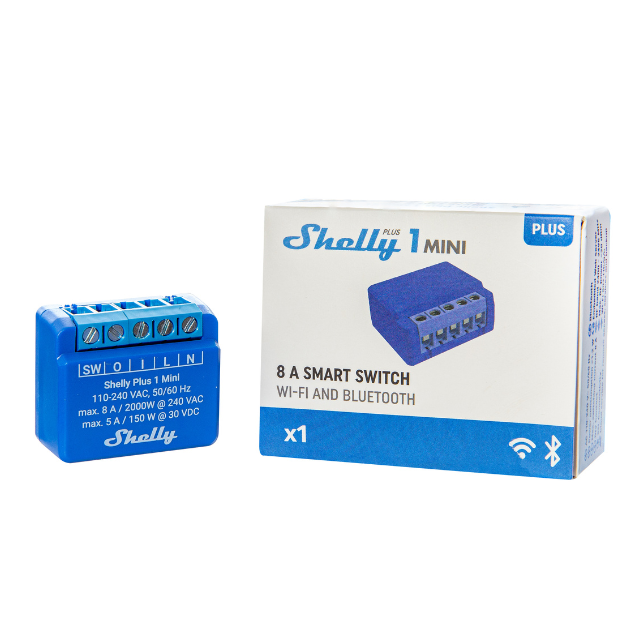

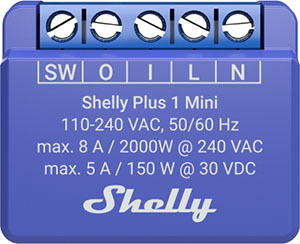

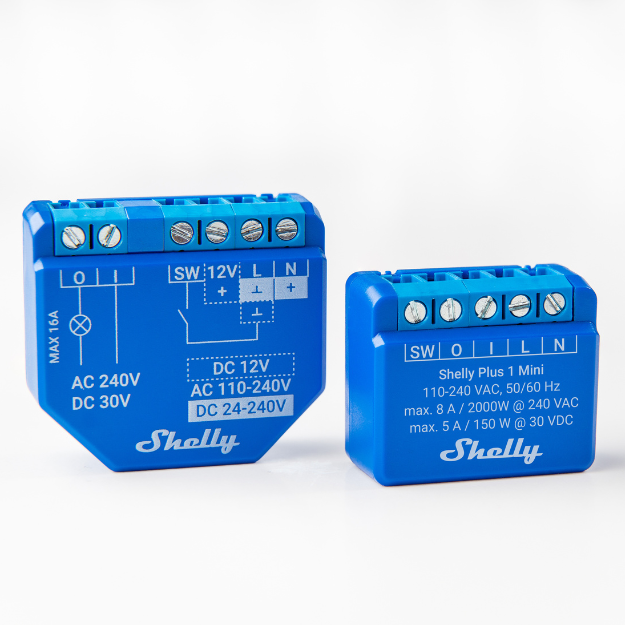

Device name: Shelly Plus 1 Mini
-
Device model: SNSW-001X8EU
-
Device SSID: Shelly1Mini-XXXXXX
Short description
Shelly Plus 1 Mini is a small form factor smart switch with potential-free contacts, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.
Shelly Plus 1 Mini can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

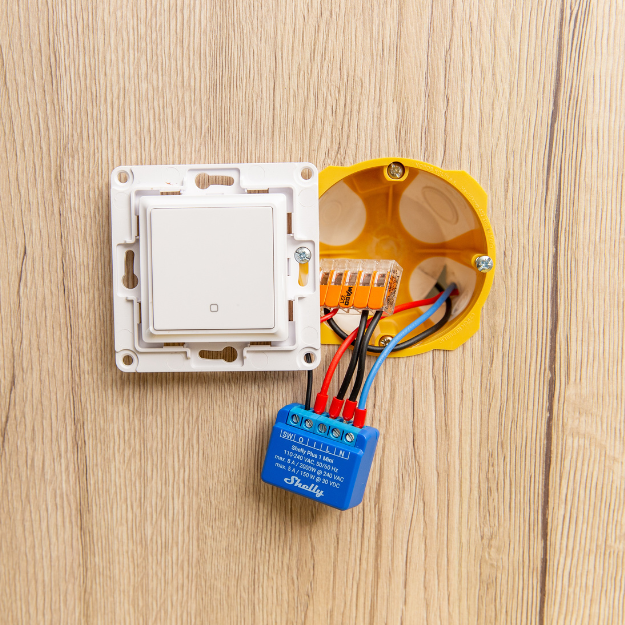

It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space.
Shelly Plus 1 Mini has embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.
Main applications
-
Residential
-
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
-
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
-
Government/municipal
-
University/college
Integrations
-
Google
-
Samsung SmartThings
-
Alexa
Simplified internal schematics
Device electrical interfaces
Inputs
-
1 switch/button input on screw terminal
-
1 potential-free contacts relay input on screw terminal
-
2 power supply inputs on screw terminals: N and L
Outputs
-
1 potential-free contacts relay output on screw terminal
Connectivity
-
Wi-Fi
-
Bluetooth (for inclusion purposes)
Safety features
-
Overheating protection
Supported load types
-
Resistive (incandescent bulbs, heating devices)
-
Capacitive (capacitor banks, electronic equipment, motor start capacitors)
-
Inductive with RC Snubber (LED light drivers, transformers, fans, refrigerators, air-conditioners)
User interface
Inputs
-
One (Reset) button
-
Press and hold for 5 seconds to enable Device access point and Bluetooth connection.
-
Press and hold for 10 seconds to factory reset the Device.
-
Outputs
-
LED (monocolor) indication
-
AP (Access Point) enabled and Wi-Fi disabled:
1 secondON/ 1 secondOFF -
Wi-Fi enabled, but not connected to a Wi-Fi network:
1 secondON/ 3 secondsOFF -
Connected to a Wi-Fi network:
ConstantlyON -
Cloud is enabled, but not connected:
1 secondON/5 secondsOFF -
Connected to Shelly Cloud:
ConstantlyON -
OTA (Over the Air Update):
½ secON/ ½ secondOFF -
Button pressed and held for 5 seconds:
½ secondON/ ½ secondOFF -
Button pressed and held for 10 seconds:
¼ secondON/ ¼ secondOFF
-
The list above starts with the initial device status and the lowest priority. Every next state cancels the previous one.
Specifications
| Type | Value |
|---|---|
| Physical | |
| Size (HxWxD): | 29x35x16 ±0.5 mm / 1.11x1.35x0.63 ±0.02 in |
| Weight: | 19 ±1 g / 0.65 ±0.04 oz |
| Mounting: | Wall box |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material: | Plastic |
| Color: | Blue |
| Environmental | |
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 110 - 240 VAC |
| Relay: | Dry, NO contact, 1-pole, µ contact |
| External protection: | 10 A, tripping characteristic B or C, |
| Power consumption: | < 1.2 W |
| Output circuits ratings | |
| Max switching voltage AC: | 240 V |
| Max switching voltage DC: | 30 V |
| Max switching current AC: | 8 A |
| Max switching current DC: | 5 A |
| Max switching power AC: | 2000 W |
| Max switching power DC: | 150 W |
| Power measurement: | No |
| Voltage protection / Cutoff: | No |
| Current protection / Cutoff: | No |
| Max power protection / Cutoff: | No |
| Sensors, meters | |
| Internal-temperature sensor: | Yes |
| Radio | |
| RF band: | 2400 - 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
| Bluetooth Protocol: | 4.2 |
| Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
| MCU | |
| CPU: | ESP32 |
| Flash: | 4 MB |
| Firmware capabilities | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
| UDP: | Yes |
| Scripting: | Yes |
Basic wiring diagrams
Legend
| Terminals | Wires | ||
|---|---|---|---|
| SW | Switch (controlling O) input terminal | L | Live (110 - 240 VAC) wire |
| O | Load circuit output terminal | N | Neutral wire |
| I | Load circuit input terminal | | |
| L | Live (110-240 V) terminal | | |
| N | Neutral terminal |
|
|
Troubleshooting
Your device is overheating
Make sure the ambient temperature does not exceed 40 °C / 105 °F. If placed in confined space Shelly Plus 1 Mini may increase the ambient temperature above the allowed limits. Ensure ventilation of the Device.
