Device identification
-

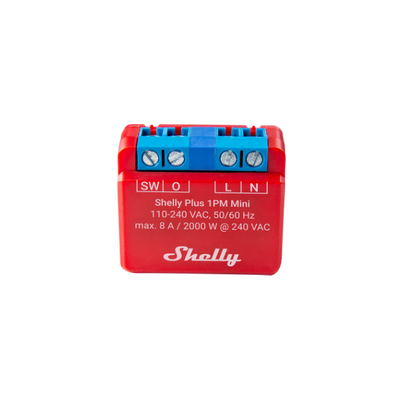

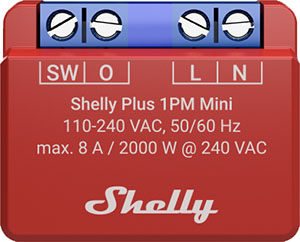

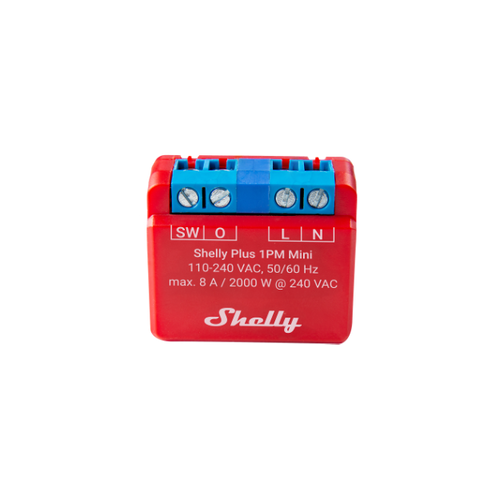

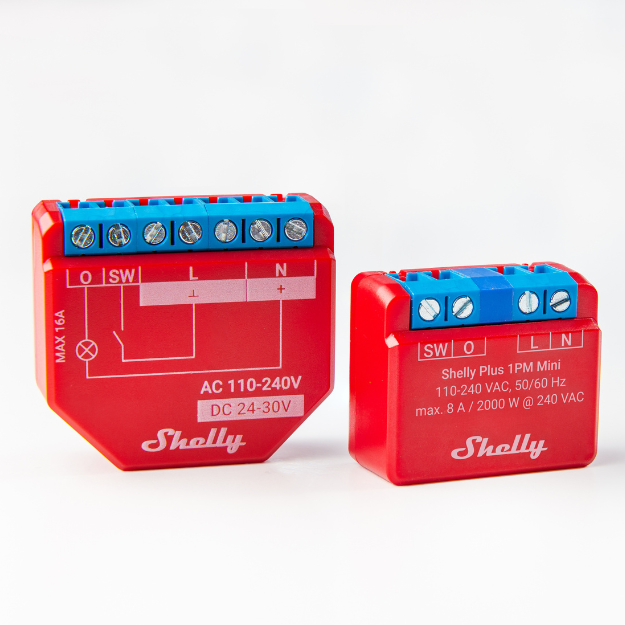

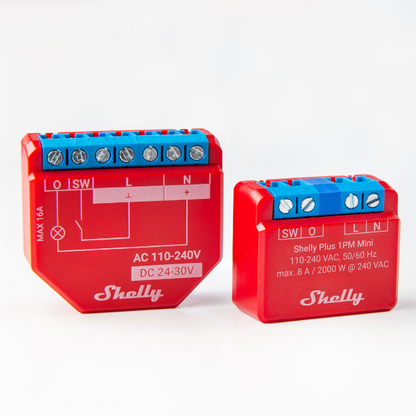

Device name: Shelly Plus 1PM Mini
-
Device model: SNSW-001P8EU
-
Device SSID: Shelly1PMMini-XXXXXX
Short description
Shelly Plus 1PM Mini is a small form factor smart switch with power measurement, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.
Shelly Plus 1PM Mini can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

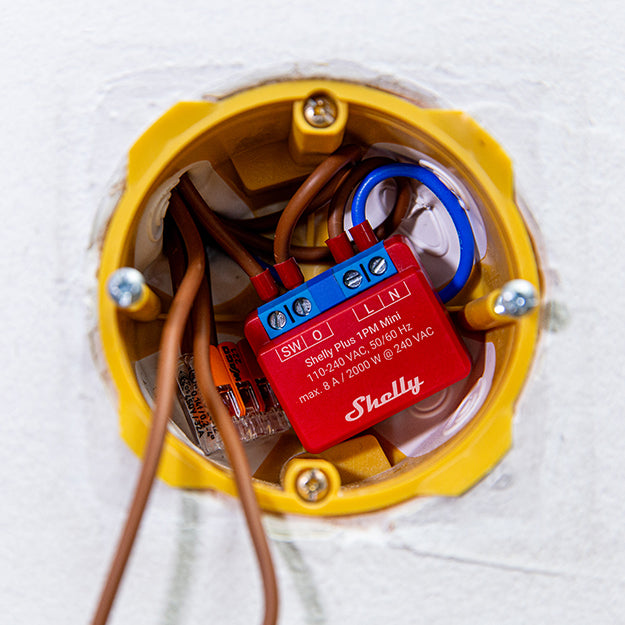

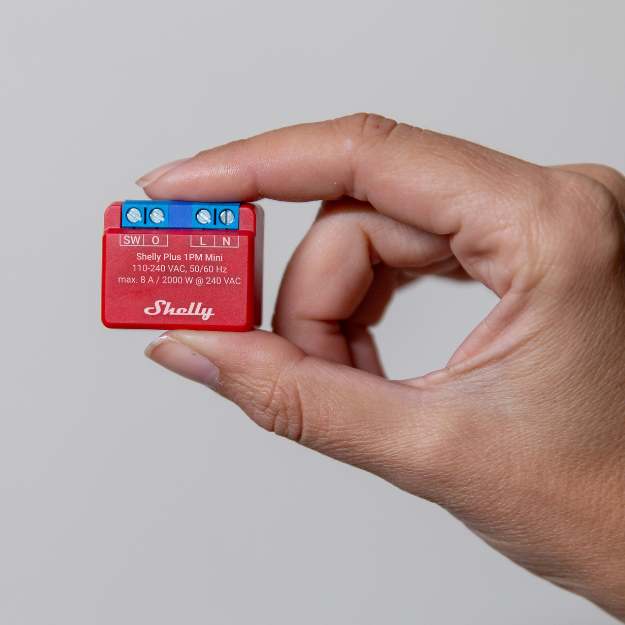

It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space.
Shelly Plus 1PM Mini has embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.
Main applications
-
Residential
-
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
-
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
-
Government/municipal
-
University/college
Integrations
-
Google
-
Samsung SmartThings
-
Alexa
Simplified internal schematics
Device electrical interfaces
Inputs
-
1 switch/button input on screw terminal
-
2 power supply inputs on screw terminals: N and L
Outputs
-
1 relay output with power measurement on screw terminal
Connectivity
-
Wi-Fi
-
Bluetooth (for inclusion purposes)
Safety features
-
Overheating protection
-
Overvoltage protection
-
Overcurrent protection
-
Overpower protection
Supported load types
-
Resistive (incandescent bulbs, heating devices)
-
Capacitive (capacitor banks, electronic equipment, motor start capacitors)
-
Inductive with RC Snubber (LED light drivers, transformers, fans, refrigerators, air-conditioners)
User interface
Inputs
-
One (Reset) button
-
Press and hold for 5 seconds to enable Device access point and Bluetooth connection.
-
Press and hold for 10 seconds to factory reset the Device.
-
Outputs
-
LED (monocolor) indication
-
AP (Access Point) enabled and Wi-Fi disabled:
1 secondON/ 1 secondOFF -
Wi-Fi enabled, but not connected to a Wi-Fi network:
1 secondON/ 3 secondsOFF -
Connected to a Wi-Fi network:
ConstantlyON -
Cloud is enabled, but not connected:
1 secondON/5 secondsOFF -
Connected to Shelly Cloud:
ConstantlyON -
OTA (Over the Air Update):
½ secON/ ½ secondOFF -
Button pressed and held for 5 seconds:
½ secondON/ ½ secondOFF -
Button pressed and held for 10 seconds:
¼ secondON/ ¼ secondOFF
-
The list above starts with the initial device status and the lowest priority. Every next state cancels the previous one.
Specifications
| Type | Value |
|---|---|
| Physical | |
| Size (HxWxD): | 29x35x16 ±0.5 mm / 1.11x1.35x0.63 ±0.02 in |
| Weight: | 18 ±1 g / 0.63 ±0.04 oz |
| Mounting: | Wall box |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material: | Plastic |
| Color: | Red |
| Environmental | |
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 110 - 240 VAC |
| Relay: | NO contact, 1-pole, µ contact |
| External protection: | 10 A, tripping characteristic B or C, |
| Power consumption: | <1.2 W |
| Output circuits ratings | |
| Max switching voltage AC: | 240 V |
| Max switching voltage DC: | N/A |
| Max switching current AC: | 8 A |
| Max switching current DC: | N/A |
| Max switching power AC: | 2000 W |
| Power measurement: | Yes |
| Voltage protection / Cutoff: | Yes |
| Current protection / Cutoff: | Yes |
| Max power protection / Cutoff: | Yes |
| Sensors, meters | |
| Internal-temperature sensor: | Yes |
| Radio | |
| RF band: | 2400 - 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
| Bluetooth Protocol: | 4.2 |
| Bluetooth Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
| MCU | |
| CPU: | ESP32 |
| Flash: | 4 MB |
| Firmware capabilities | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
| UPD: | Yes |
| Scripting: | Yes |
Basic wiring diagram
Legend
| Terminals | Wires | ||
|---|---|---|---|
| SW | Switch (controlling O) input terminal | L | Live (110 - 240 VAC) wire |
| O | Load circuit output terminal | N | Neutral wire |
| L | Live (110-240 V) terminal | | |
| N | Neutral terminal |
|
|
Troubleshooting
Your device is overheating
Make sure the ambient temperature does not exceed 40 °C / 105 °F. If placed in confined space Shelly Plus 1PM Mini may increase the ambient temperature above the allowed limits. Ensure ventilation of the Device.
Web Interface guide
Read the Shelly Plus 1PM Mini web interface guide
Components and APIs
Compliance
-
Shelly Plus 1PM Mini multilingual EU declaration of conformity 236 2025-12-05.pdf
-
Shelly Plus 1PM mini UK PSTI ACT Statement of compliance.pdf
Printed user guide
Installation guides
