Device identification
-

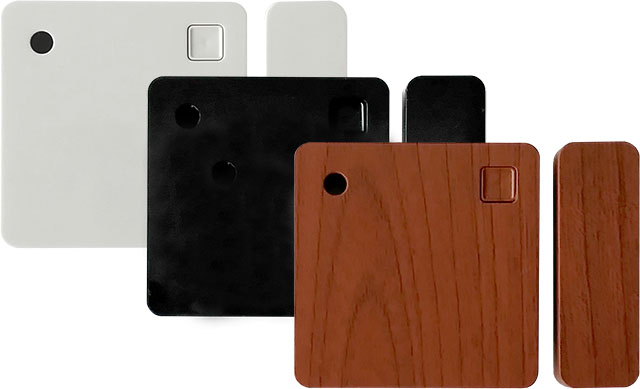

Device name: ShellyBLU Door/Window
-
Device model: SBDW-002C
Short description
ShellyBLU Door/Window (the Device) is a Bluetooth sensor designed to detect the opening and closing of a door or a window. It can also measure the angle of a inclination of a door or a window that tilts and turns. In addition, it features a light sensor.
Features
-
Long battery life
-
Door/window opening and closing detection
-
Door/window inclination angle measurement
-
Illumination measurement
-
Beacon mode
-
Encrypted mode
Main applications
-
Residential
-
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
-
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
-
Government/municipal
-
University/college
Connectivity
-
Bluetooth
Modes of operation
-
Regular mode - the Device broadcasts the current open/closed state, illuminance, and battery status each time the open/closed state changes (door/window opened or closed). If a door or window, which tilts and turns is opened, the Device immediately broadcasts information about the event, the illumination, and the battery status at the time of the opening detection. Two seconds later, it broadcasts inclination angle, the illumination, and the battery status at the moment. Then every 8 seconds the Device checks the inclination angle. If a change is detected, the Device broadcasts the new angle value.
-
Beacon mode - the Device broadcasts the current open/closed state, illuminance, and battery status every 30 seconds. You can enable the Beacon mode from the Device settings in the Shelly Smart Control application. For more details, visit the Shelly Smart Control guide.
The battery life may be significantly reduced when the Device is in Beacon mode.
User interface
Inputs
-
One push button
-
Press and hold for 10 sec to pair ShellyBLU Door/Window with another Bluetooth device.
-
Press and hold for 30 sec to factory reset (possible only shortly after inserting the battery).
-
Specifications
|
Type |
Value |
|---|---|
|
Physical |
|
|
Size (HxWxD): |
|
|
Weight: |
|
|
Shell material: |
Plastic |
|
Color: |
White, black, brown |
|
Environmental |
|
|
Ambient temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
|
Humidity: |
30 % to 70 % RH |
|
Electrical |
|
|
Power supply: |
1x 3 V CR2032 battery (included) |
|
Battery life: |
5 years |
|
Sensors |
|
|
Reed switch |
Yes |
|
G-sensor |
Yes |
|
Light sensor |
Yes |
|
Radio |
|
|
RF band: |
2400 - 2483.5 MHz |
|
Max. RF power: |
<4 dBm |
|
Bluetooth Protocol: |
4.2 |
|
Bluetooth Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
|
MCU |
|
|
CPU: |
EFR32BG22C222F352GM32 |
|
Firmware capabilities |
|
|
Encryption: |
AES encryption (CCM mode) |
|
Beacon mode: |
Yes |
Troubleshooting
...
Components and APIs
Compliance
Shelly BLU Door Window multilingual EU declaration of conformity.pdf
Battery material safety data sheet
Printed user guide
Shelly BLU DoorWindow multilingual printed user and safety guide.pdf
Installation guides
