Shelly BLU Wall Switch 4 ZB Standalone

18,90 €

Incl. VAT Shipping calculated at checkout.

New

In stock

Typically used for:

Smart lighting

Garage Doors

Window blind automation

Appliances

Scene activation

Shelly BLU Wall Switch 4 ZB Standalone

Name: Shelly BLU Wall Switch 4 ZB Standalone
Brand: Shelly
SKU: FG3800238073053
Price: 18.9 EUR
Availability: InStock

18,90 €

Incl. VAT Shipping calculated at checkout.

In stock

Wall-mounted or portable, this smart switch offers Bluetooth and Zigbee connectivity, multi-click control, long battery life, and strong encryption. Compatible with Legrand, Gira, Merten, and Busch-Jaeger frames, or use it as a standalone remote.

*Not a standalone device. Requires Bluetooth pairing with a compatible Shelly device or Zigbee connection.

2

Typically used for:

Smart lighting

Garage Doors

Window blind automation

Appliances

Scene activation

Get Protection Plus

1,89 €

Extended Coverage: Beyond the standard warranty
Free Replacements
Accidental Damage Protection

All orders are shipped from the EU

Key Features

Bluetooth and Zigbee - connection flexibility.
Multi-click action trigger - execute up to 16 pre-set actions or scenes with simple click combinations. Supports multi-click - single, double, triple, and long press.
Long battery life - uninterrupted performance up to 2 years.
Wire-free - no need for wiring, can be mounted in standard wall switch frames (Legrand, Gira, Merten, Busch-Jaeger, and Shelly)
Encryption - high level of security.
Full compatibility - with Home Assistant and different smart home ecosystems.
Compact size – for wall switch mounting and option to be used as portable switch.
Mountable as switch – easy mounting as a standard switch.
Beacon mode - If enabled, the device will emit beacons every 8 seconds.

Device identification

Device name: Shelly BLU Wall Switch 4 ZB
Device model: SBBT-104CEU
Device Bluetooth ID: 0x0015

Short description

Shelly BLU Wall Switch 4 ZB (the Device) is a compact, battery-operated wireless switch designed to offer fast and reliable control of smart home devices through both Bluetooth Low Energy (BLE) and Zigbee 3.0. With four programmable buttons and multi-action support, it provides a highly flexible user interface for automation scenarios.

Ideal for flush mounting in standard switch frames or as a standalone remote, the device requires no wiring and integrates seamlessly with Shelly ecosystems and third-party Zigbee hubs.

Main features

Dual protocol: Communicates over Bluetooth LE and Zigbee 3.0, enabling flexible integration
Powered by a CR2032 coin-cell battery with up to 2 years of typical use
4 programmable buttons: Support single, double, triple, and long presses – up to 16 unique actions
Fits in popular wall switch frame systems, or can be used as a portable remote
No wiring required: Mount it anywhere with adhesive or screws.
Strong encryption

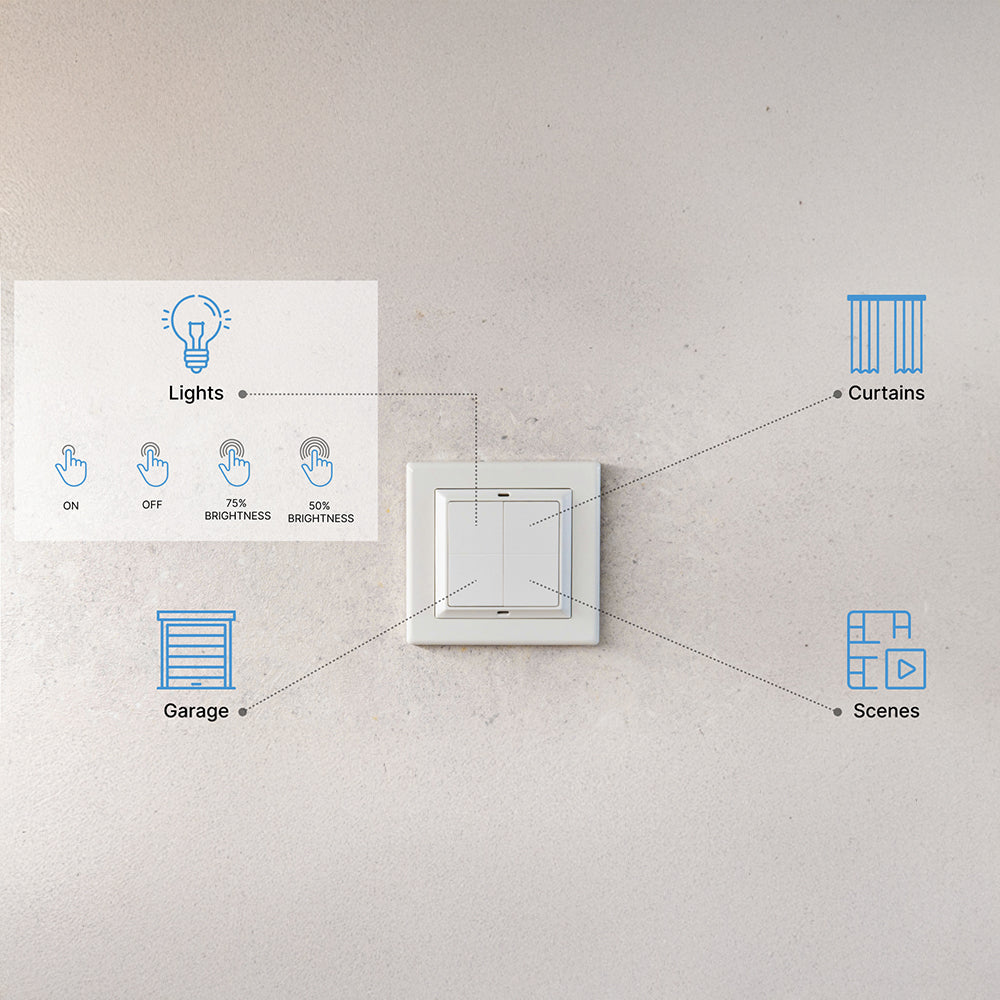

Use cases

Lighting control: Assign the button to control specific lighting scenes or individual smart lights. For example, a single press could turn on/off the lights, while a long-term press could dim or brighten them.
Garage door opener: Use the strong encryption of Shelly BLU Wall Switch 4 ZB and control your smart garage door opener as you approach or leave your garage.
Smart blinds or curtains: Open or close motorized blinds or curtain at the touch of a button.
Location-based automation: Set the device in Beacon mode so that to trigger specific actions when you come within Bluetooth range. Use the Device for presence control, for example to keep lights on while you need to spend some time in a certain area.
Scene control: Use the 4 buttons to activate any scene or specific actions you can imagine. Each button supports single, double, triple and long push - which allows the user to make 16 different actions!
Mix and match your interior design with the wide number of 3rd party frames supported
No wiring needed

Connectivity

Bluetooth
Zigbee

User interface

Inputs

Four push buttons
- To enter Bluetooth pairing mode:
  - Press any of the buttons 4 times. The LED flashes once every two seconds and the Device enters Bluetooth pairing for one minute.
- To enter Zigbee pairing mode:
  - Press any of the buttons 5 times. The LED flashes twice every two seconds and the Device enters Zigbee commissioning mode for one minute.
- Press and hold any button for 30 sec to factory reset (possible only shortly after inserting the battery).

Specifications

Quantity	Value
Physical
Size (HxWxD):	46x46x13 mm / 1.81x1.81x0.51 in
Weight:	17 g / 0.6 oz
Shell material:	Plastic
Shell color:	Ivory
Environmental
Ambient working temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity:	30% to 70% RH
Electrical
Power supply:	1x 3 V battery (included)
Battery type:	CR2032
Estimated battery life:	Up to 2 years
Bluetooth
Protocol:	5 (LE)
RF band:	2402 - 2480 MHz
Max. RF power:	< 8 dBm
Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Zigbee
Protocols:	802.15.4
RF bands:	2405 to 2480 MHz
Max. RF power:	< 8 dBm
Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Microcontroller unit
CPU:	EFR32MG27
Flash:	768 kB
Firmware capabilities
Schedules:	No
Webhooks (URL actions):	No
Scripting:	No
MQTT:	No
Encryption:	Yes
Other
Supported Devices	Shelly Plus / Gen3 / Gen4 series Shelly Pro series

Compliance and certification

Printed user guide

FAQ

What are the differences between the different generations of Shelly products?

Each new generation adds more power, memory, and features:

Gen 1 offers basic control;

Gen 2 (Plus Series, Mini Series, Pro Series) adds Bluetooth, scripting, and better security;

Gen 3 improves performance, adds Matter (starting from firmware version 1.6.0 or newer) and advanced monitoring;

Gen 4 offers multi-protocol connectivity, featuring Wi-Fi 6, Bluetooth, Zigbee, and Matter.

Learn more: https://support.shelly.cloud/en/support/solutions/articles/103000316073-comparison-of-shelly-gen-1-gen-2-and-gen-3-devices?fbclid=IwY2xjawJHTR9leHRuA2FlbQIxMAABHaBfrCc1-eqoghqxTVUgn7QBaaqTBKa_dZyem_FbH6z6WrlrHbWo0p_OTg_aem_ltK1ZvtsjkrpzXAFx7uvhQ

Do I need a gateway to use the device?

Yes, to use this device with the Shelly Smart Control app, a gateway is necessary. Compatible gateways are Shelly BLU Gateway, or alternatively any Shelly Plus, Pro, Gen3 or Gen4 device (excluding sensors) can act as a gateway.

Is it possible to use the device without a hub?

Yes, Shelly devices (except for Wave devices) operate independently without the need for a hub. They connect directly to your Wi-Fi network, and you can control them via the Shelly Smart Control app, web interface, or through integrations with platforms like Google Home, Alexa, Home Assistant and Samsung SmartThings.

Knowledge Base

EU Data act‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎

View full details

Why Shelly BLU Wall Switch 4 ZB?

Smart Control Made Simple

Integrated as a standard switch or used stand-alone, Shelly BLU Wall Switch 4 ZB adapts to your lifestyle. Equip your home with the ability to perform up to 16 different actions using simple click combinations. From turning lights on and off to activating appliances or custom scenes, control is always at your fingertips. It's designed to fit perfectly with wall frames from leading brands like Legrand, Gira, Merten, and Busch-Jaeger, ensuring it complements any room’s decor.

SOLUTIONS

Shelly BLU Wall Switch 4 ZB Standalone

One Switch, Many Uses

Replace your ordinary switches with Shelly BLU Wall Switch 4 ZB! Easily mountable, on any wall, without any wiring, Shelly BLU Wall Switch 4 ZB lets you manage lighting, appliances and activate scenes from one place. Configure the four customizable buttons to perform up to 16 actions - turn appliances on and off, adjust dimming, or activate scenes. For example, you could use it to shut down all non-essential devices when leaving home with just 1 button press.

Portable control

When used standalone, it lets you freely manage your home's lighting, appliances, and scenes from anywhere within range. Configure the four buttons to handle tasks like turning off upstairs lights from your downstairs couch, adjusting thermostat settings without leaving your bed. Shelly BLU Wall Switch 4 ZB puts convenience in your hands, making it easy to adapt your surroundings to any activity.

Set the perfect brightness and position

Shelly BLU Wall Switch 4 ZB gives you precise control over your curtains, blinds, shutters, and dimming lights. Adjust your curtains through the customizable button presses that can set their exact position. Similarly, the dimming feature allows you to tailor brightness to

match any activity and create the ideal ambiance every time.

WHY ZIGBEE?

The communication standard for low-power, highly interconnected smart home

A Zigbee-operated smart home ecosystem offers seamless, energy-efficient connectivity for your smart devices. It ensures fast communication, supports a wide range of devices, and creates a reliable mesh network.

Universal compatibility:

Zigbee is a widespread protocol used by multiple manufacturers, which ensures a high degree of compatibility between devices.

Network topology

Zigbee uses a mesh network that allows devices to forward signals to each other, extending range and increasing reliability.

Energy efficiency

Zigbee devices are exceptionally energy-efficient, consuming minimal power, making them ideal for battery-powered devices.

Enhanced security

Zigbee uses AES-128 encryption, which ensures a high level of security for home automation.

Universal compatibility:

Zigbee is a widespread protocol used by multiple manufacturers, which ensures a high degree of compatibility between devices.

Network topology

Zigbee uses a mesh network that allows devices to forward signals to each other, extending range and increasing reliability.

Energy efficiency

Zigbee devices are exceptionally energy-efficient, consuming minimal power, making them ideal for battery-powered devices.

Enhanced security

Zigbee uses AES-128 encryption, which ensures a high level of security for home automation.

SHELLY APP

Shelly Smart Control is Free!

Download our free app to manage spaces, monitor energy, and track expenses. Upgrade to Premium for even more features!
