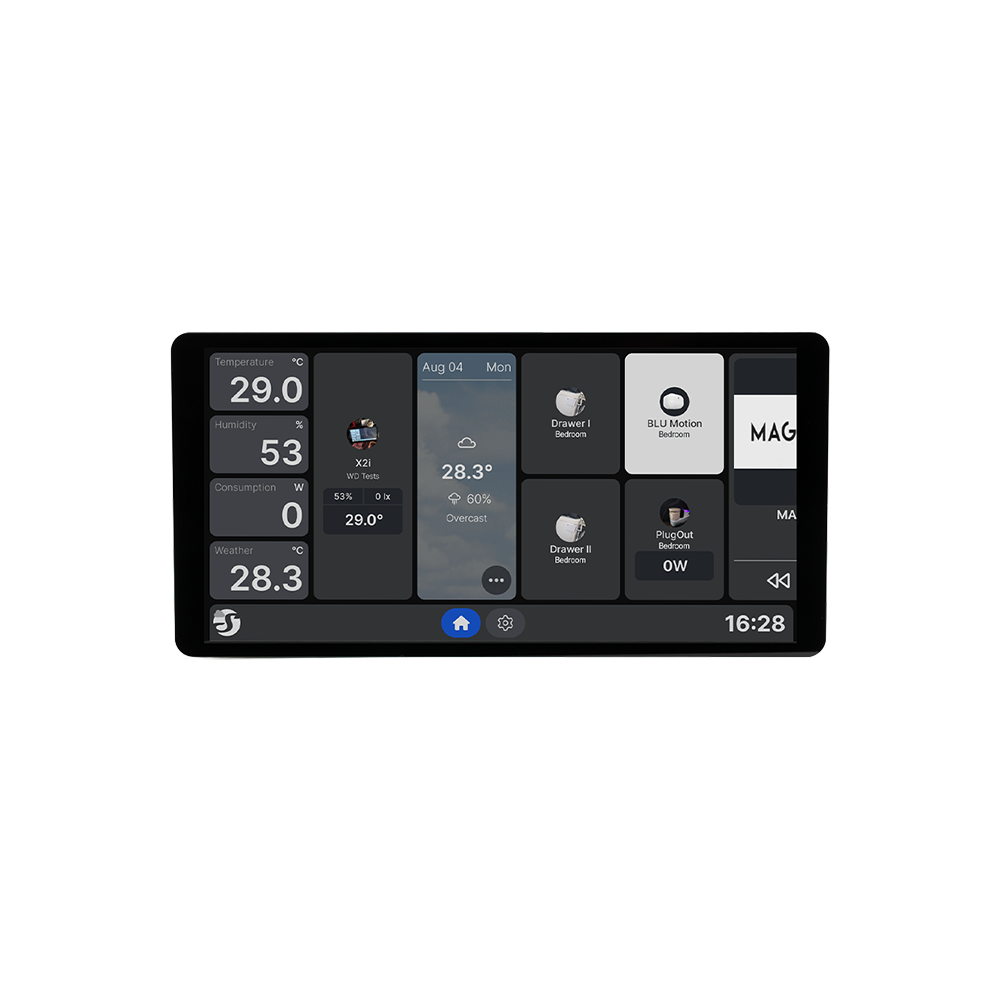

Smart home control panel with a 6.95” color touchscreen, ultra-fast quad-core processor, and an interchangeable power base. The included power base has a single output for one-circuit control.
2
2 Years Warranty
2 Years Warranty
This warranty covers any issues with the hardware or firmware that exist at the time of purchase or that appear within the warranty period. The warranty includes all parts of the hardware, such as the body, mechanics, and display (if applicable). However, it does not cover consumable items like batteries or accessories, as their lifespan depends on how much they are used.
Touch-sensitive 6.95” color display (panoramic or portrait view)
Bluetooth 5.0 and Wi-Fi 6 Dual Band (2.4 GHz & 5 GHz) connectivity
Ultra-fast quad-core CPU for instant response
Interchangeable power base
Power monitoring for connected Shelly PM devices
Integrated 5 A relay for light control
Integrated 0.8 W speaker
Bluetooth and SONOS speakers support
Built-in LUX sensor, proximity sensor, and G-sensor (for gestures)
Supports both 100–240 V~ and USB-C (5 V⎓) power for flexible installation
Simple navigation and customizable home screen
Compatible with Shelly Smart Control App, and Home Assistant
Shelly Wall Display X2i
Device identification
Device name: Shelly Wall Display X2i
Device model: SAWD-5A1XX10EU0
Device Bluetooth ID: 0x3005
Short description
Shelly Wall Display X2i (the Device) is a smart home control panel with a 6.9” color display and interchangeable power base. It comes with power base that provides switching functionality for one output load circuit.
Main features
Touch-sensitive 6.9” color display
Power base with integrated relay for light control
Easy navigation and customizable home screen
Choice between panoramic and portrait view on the display
Integrated 0.8 W speaker
Integrated light sensor
Power consumption monitoring of all devices in a room in your Shelly Smart Control account
Use cases
Space-efficient fitting: Install the Shelly Wall Display X2i in standard electrical wall boxes for light switches.
Appliance Control: Use it to remotely control and automate the operation of various electric appliances such as lights, fans, or other devices. Adjust operation of dehumidifiers, humidifiers, and fans based on the current temperature and humidity conditions. Control other devices based on integrated LUX measurement sensor.
Power Monitoring: Monitor the power consumption of appliances in the room in your Shelly Smart Control account. This is useful for understanding energy usage patterns and promoting energy efficiency.
Home Automation: Integrate the Shelly Wall Display X2i into your home automation system to create custom scenes and schedules for your devices.
Audio integration: Connect a Bluetooth or Sonos speaker to the Shelly Wall Display X2i for enhanced audio control. Stream music, notifications, alarms, and other audio signals for better sound coverage.
Energy Efficiency: Leverage the power measurement feature to identify energy-hungry appliances and make informed decisions to improve overall energy efficiency in your home.
Remote Monitoring: Keep an eye on your devices even when you're away from home. The remote access feature allows you to monitor and control connected appliances from anywhere with internet connectivity.
Climate control: Adjust the heating, ventilation, and air conditioning system based on current temperature and humidity levels to maintain a comfortable indoor environment.
Prevent mold and mildew: Monitor humidity levels to prevent the growth of mold and mildew in spaces like basements and bathrooms. The Shelly Wall Display X2i can activate ventilation or dehumidification devices when needed.
Main applications
Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college
Integrations
Amazon Alexa supported capabilities
Yes
Google Smart Home supported traits
Yes
Samsung SmartThings supported capabilities
Yes
Simplified internal schematics
Device electrical interfaces
Inputs
2 power supply inputs on screw terminals: N and L
1 switch/button input on screw terminal
Outputs
1 output
Detailed inputs and outputs description
N/A
Connectivity
Wi-Fi
Bluetooth
Protocols
HTTP
RPC over HTTP
RPC over BLE
Supported load types
Resistive - incandescent and halogen bulbs
Capacitive - LED bulbs, LED drivers, CFL (compact fluorescent lamps)
Inductive - LED light transformers
User interface
Touch-sensitive 6.9” 5-point capacitive color display with fully-customizable layout.
Specifications
Quantity
Value
Physical
Size (HxWxD):
With power base: 87x178x36 mm / 3.43x7x1.42 inch
Without power base: 87x178x11 / 3.43x7x0.43 inch
Weight:
With power base: 292 g / 10.3 oz
Without power base: 246 g / 8.68 oz
Touch Screen:
5-point capacitive
Screen resolution, px:
1440x720p
Screw terminals max torque:
0.4 Nm / 3.5 lbin
Conductor cross section:
0.75 to 2.5 mm² / 18 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length:
6 to 7 mm / 0.24 to 0.28 inch
Mounting:
Wall box
Shell material:
Plastic, aluminum, glass
Shell color:
Display: Black, Silver
1-Output Power base: Blue (CMYK: C-95%; M-53%; Y-0%; K-0%)
Speaker:
0.8W*1
Environmental
Ambient working temperature:
-20 °C to 40 °C / -5 °F to 105 °F
Humidity:
30 % to 70 % RH
Max. altitude:
2000 m / 6562 ft
Electrical
Power supply:
100-240 V~, 50/60Hz
Power consumption:
< 5 W
USB TYPE-C power supply:
5 V⎓, 1 A
Output circuits ratings
Max. switching voltage:
240 ~
Max. switching current:
5 A
USB TYPE-C, voltage:
5 V⎓
USB TYPE-C, current:
0.5 A
Sensors, meters
Light sensor:
Yes
Microphone:
Yes
G-sensor:
Yes
Proximity sensor:
Yes
Radio
Wi-Fi
Protocol:
Wi-Fi 6 Dual Band
RF band:
2.4 GHz, 5 GHz
Max. RF power:
< 20 dBm
Range:
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth -
Protocol:
5.0
RF band:
2402 - 2480 MHz
Max. RF power:
< 4 dBm
Range:
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Microcontroller unit
CPU:
SC7731E, Quad Core A7 1.3GHz
RAM:
1 GB
Flash:
4 GB
System:
Android 11
Firmware capabilities
Schedules:
20
Webhooks (URL actions):
20 with 2 URLs per hook…
Scripting:
No
MQTT:
Yes
Basic wiring diagrams
Legend
Terminals
Wires
SW
Switch input terminal
N
Neutral wire
O
Output terminal
L
Live (100-240 V~, 50/60 Hz) wire
L
Live (100-240 V~, 50/60 Hz) terminal
N
Neutral terminal
Troubleshooting
Ensure that the device is properly powered:
Check power cables, outlets, and any power indicators on the device.
Inspect Connections:
Verify that all connections, including cables and wiring, are secure and properly seated. Loose connections can lead to functionality issues.
Review Device Settings:
If applicable, check and review the device settings. Ensure that configurations are correct and match your intended use.
Update Firmware/Software:
Check if there are any available firmware or software updates for the device. Keeping the device up-to-date can resolve known issues and improve performance.
Restart or Reboot:
Sometimes, a simple restart can resolve temporary glitches. Turn off the device, wait a few seconds, and then power it back on.
Check Network Connection:
If the device is connected to a network, ensure that the network settings are correct. Test the network connection and consider restarting routers or switches if needed.
Inspect Physical Components:
Physically inspect the device for any signs of damage, overheating, or unusual behavior.
Check Compatibility:
Ensure that the device is compatible with other components in your system, including hardware and software. Incompatibility issues can lead to malfunctions.
Monitor Environmental Factors:
Consider environmental factors such as temperature and humidity.
Inspect Power Supply Quality:
Poor power quality, including voltage spikes or fluctuations, can affect device performance. Consider using a surge protector or voltage regulator if needed.
*These are general troubleshooting steps, and the specific steps may vary based on the type of device or issue you are facing. If the issue persists and you are unable to resolve it, consider reaching out to our technical customer support.
Yes, Shelly devices (except for Wave devices) operate independently without the need for a hub. They connect directly to your Wi-Fi network, and you can control them via the Shelly Smart Control app, web interface, or through integrations with platforms like Google Home, Alexa, Home Assistant and Samsung SmartThings.
What is the screen size of the Shelly Wall Display X2?
The Shelly Wall Display X2 features a 6.95-inch touchscreen. This sizable display allows for intuitive control of various smart home devices, including lights, thermostats, and more.
Can the Shelly Wall Display X2 replace an existing light switch?
Yes, the Shelly Wall Display X2 is designed to fit into a standard electrical box, allowing it to replace an existing light switch. It includes built-in relay functionality, enabling it to add smart capabilities to existing circuits when wired in place of a traditional switch.
Does the Shelly Wall Display X2 support MQTT for integration with other smart home systems?
Yes, the Shelly Wall Display X2 supports MQTT integration.
Pair devices using Wi-Fi 6 Dual Band (2.4 GHz & 5 GHz) and Bluetooth 5.0 for faster setup, stable communication, and greater control reliability.
Powerful Quad-Core Performance
Rely on the quad-core processor for quick reactions when switching lights, changing settings, or managing your smart routines.
Touchless Interaction
Wave to wake the screen using gesture and proximity sensors, while the LUX sensor adapts to ambient light.
Built-In Relay and Dual Power Options
Choose how you power the device - via 100–240 V~ interchangebale power base or USB-C, and use the built-in relay to directly control lights.
Open Smart Ecosystem
Manage your system locally through MQTT, webhooks, or Wi-Fi. Keep full access and privacy without relying on the cloud.
Flexible Display Orientation
Rotate the screen between panoramic and portrait mode to match your setup and personalize how you control your home.
SOLUTIONS

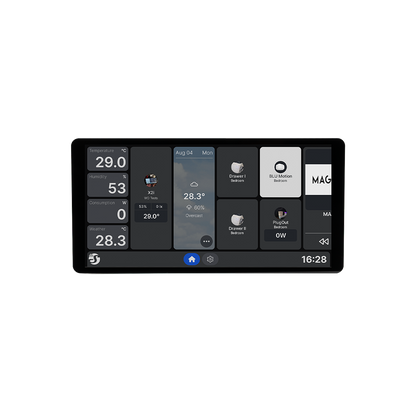

Shelly Wall Display X2i List
Integrate with Shelly Smart Control App or Home Assistant
Integrate with Shelly Smart Control App or Home Assistant
Streamline your smart home experience by connecting the Shelly Wall Display X2i with Home Assistant or the Shelly Smart Control App.
Manage and automate all your Shelly and compatible devices from one customizable interface. With integration across platforms, you can control appliances, lights, or sensors, create personalized automation scenes and schedules for a real smart home experience.
Make Your Devices Work for You
Make Your Devices Work for You
Remotely control and automate various electric appliances such as lights, fans, or other connected devices.
Thanks to the integrated LUX measurement sensor, the Wall Display X2i can trigger other devices automatically, turning lights on or off based on brightness levels to ensure optimal comfort and energy efficiency.
Let Your Home Handle the Climate
Let Your Home Handle the Climate
Adjust your heating, ventilation, and air conditioning systems based on real-time temperature and humidity data from connected sensors (like Shelly BLU H&T).
The Wall Display X2i can act as a thermostat interface, giving you intuitive control over your indoor climate.
Working in harmony with other Shelly devices, it dynamically fine-tunes your environment to maintain the perfect comfort level in every room.
Know Where Your Power Goes
Know Where Your Power Goes
Monitor the power consumption of appliances connected to your Shelly PM devices directly through your Shelly Smart Control account.
This functionality helps you track usage patterns, manage costs, and make your home more energy-efficient.
When Your Home Plays the Music
When Your Home Plays the Music
Connect your Bluetooth or Sonos speakers to the Shelly Wall Display X2i for enhanced audio control.
Stream music, alarms, notifications, or any other audio signal directly through your home system for improved sound coverage and convenience.
Control Everything from One Hub
Control Everything from One Hub
Manage your entire smart home from a single touchpoint.
The customizable home screen of the Shelly Wall Display X2i brings together lighting, energy, climate, and automation controls - everything you need, right at your fingertips.
