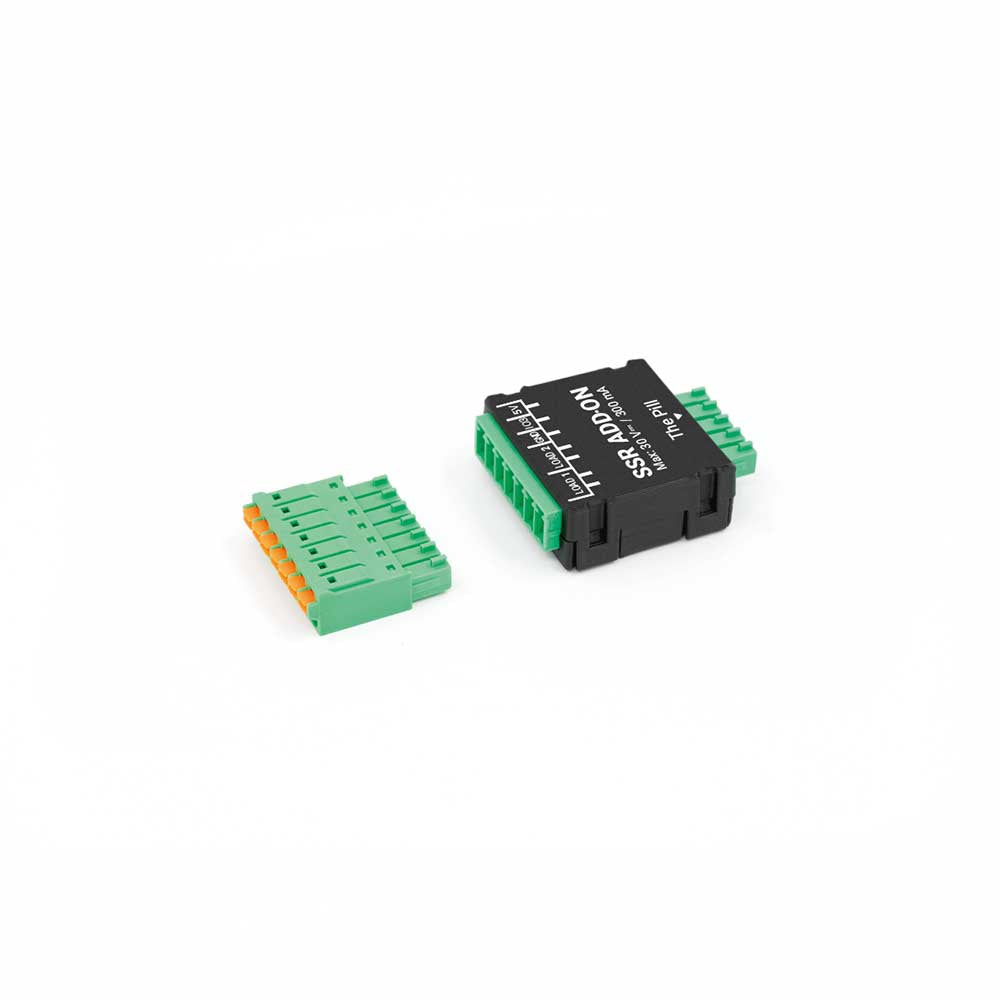

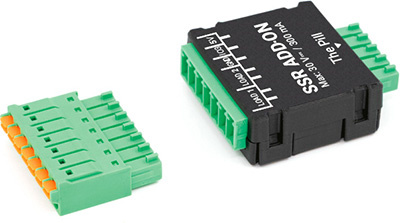

SSR Add-on (Accessory for The Pill by Shelly)

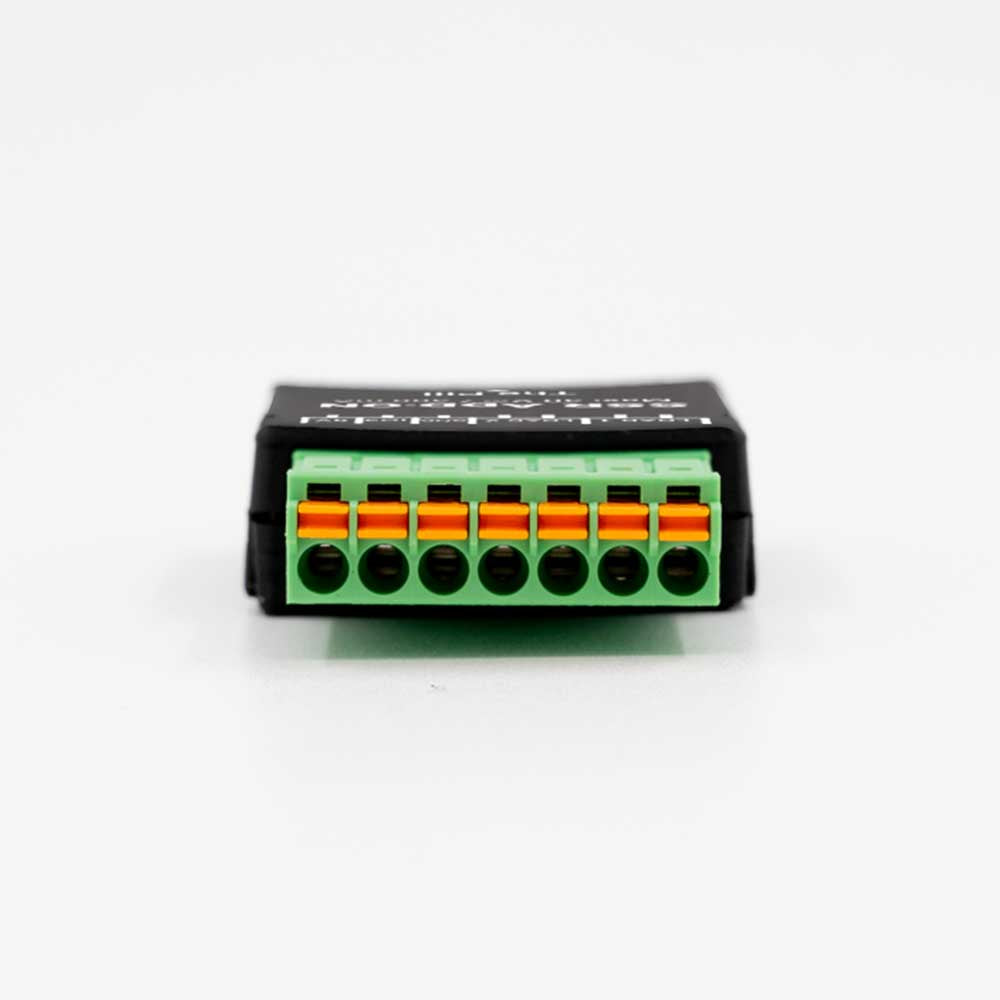

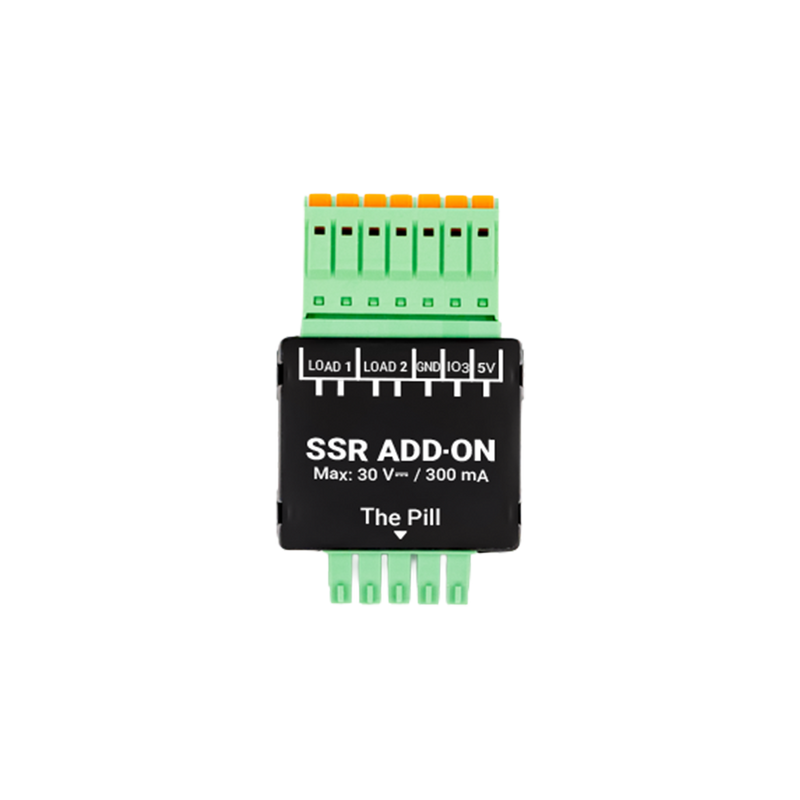

Device image(s)

Device name: SSR Add-on (Accessory for The Pill by Shelly)
Device model: N/A

Dual-channel control of DC Loads up to 30V.

Controls two independent DC loads up to 30V/300mA per channel using galvanically isolated solid-state relays for enhanced usability.

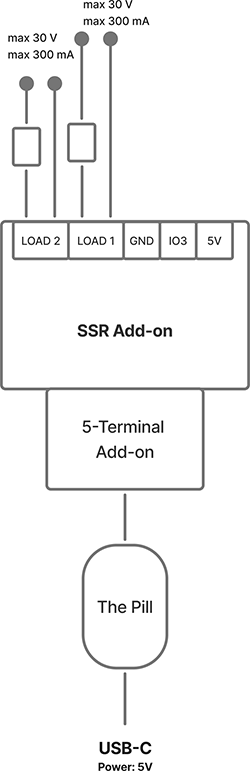

Requires: 5-Terminal Add-on for connection with The Pill

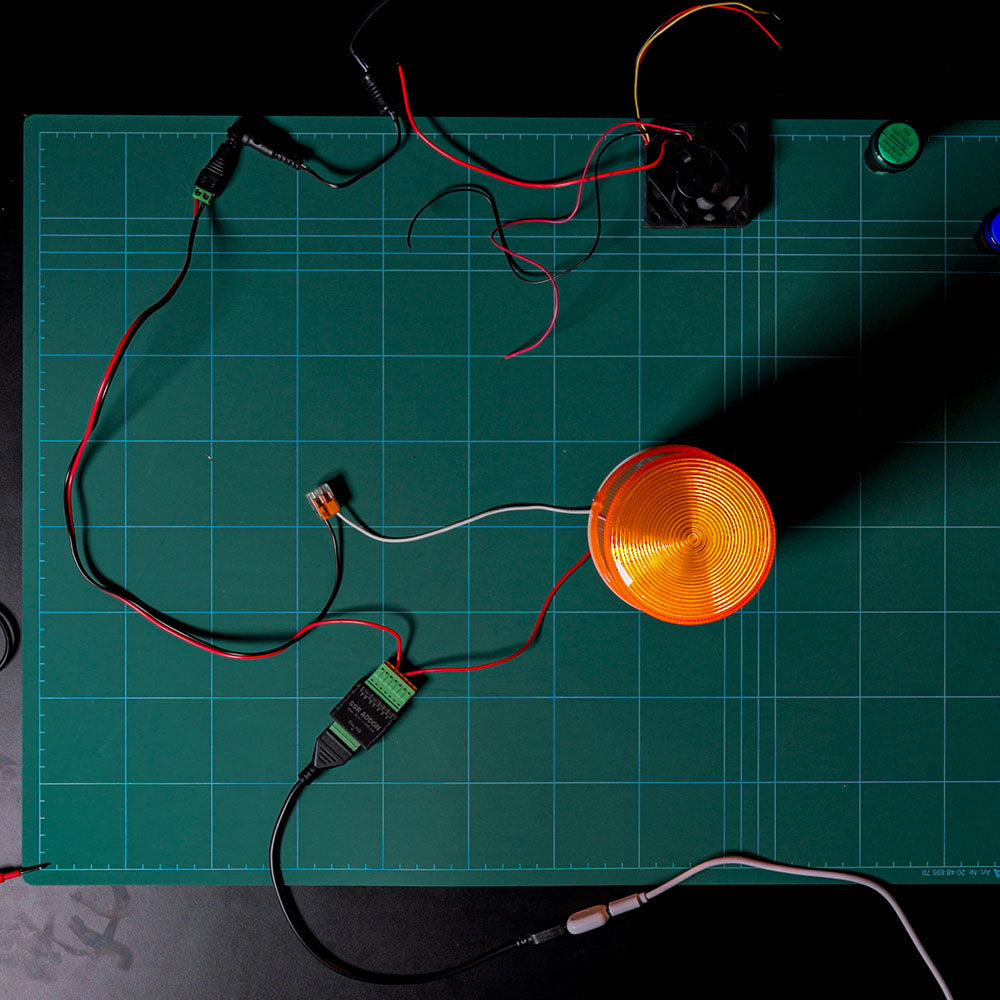

Isolate and control DC loads: Use to control two separate DC Loads, max 30V / 300 mA each.

1 Configurable Digital Input/Output (logic-level 3.3V) - IO3

2 potential-free contacts solid-state relay outputs - LOAD1 and LOAD2

Optional Power terminals - 5V, GND

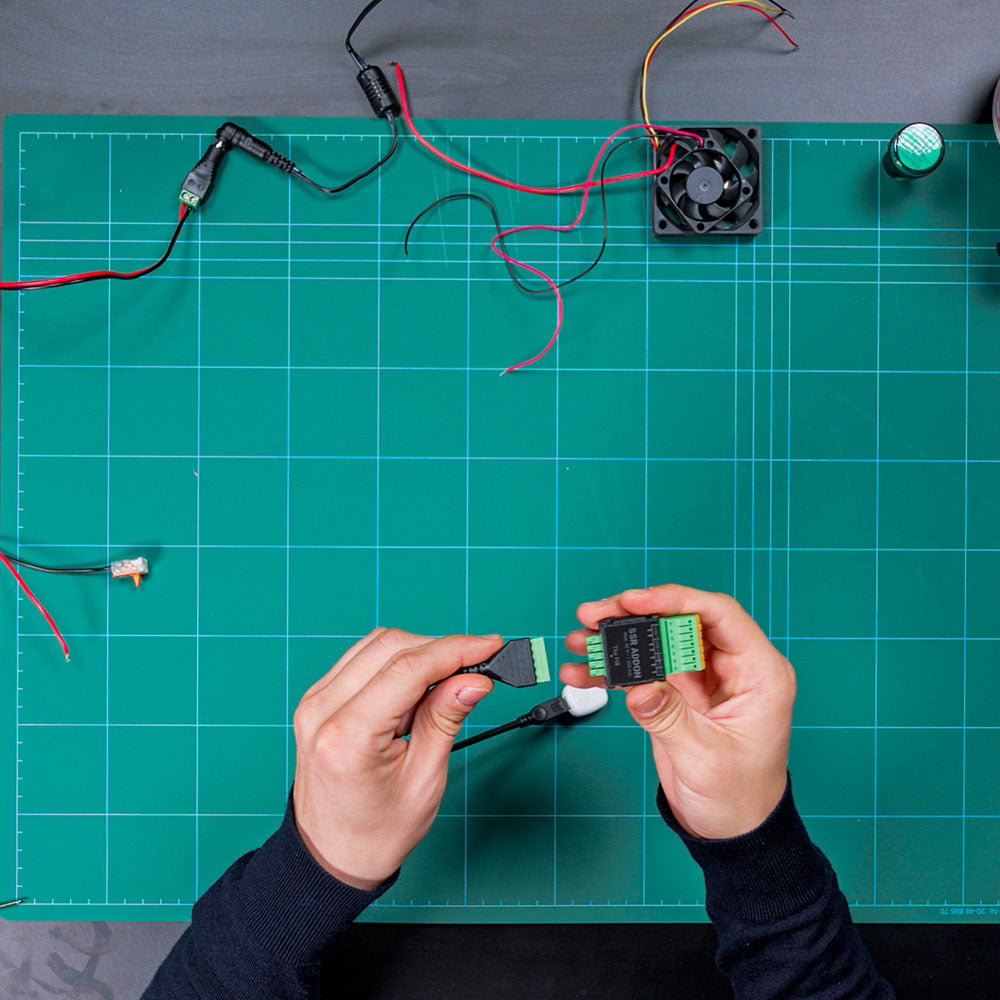

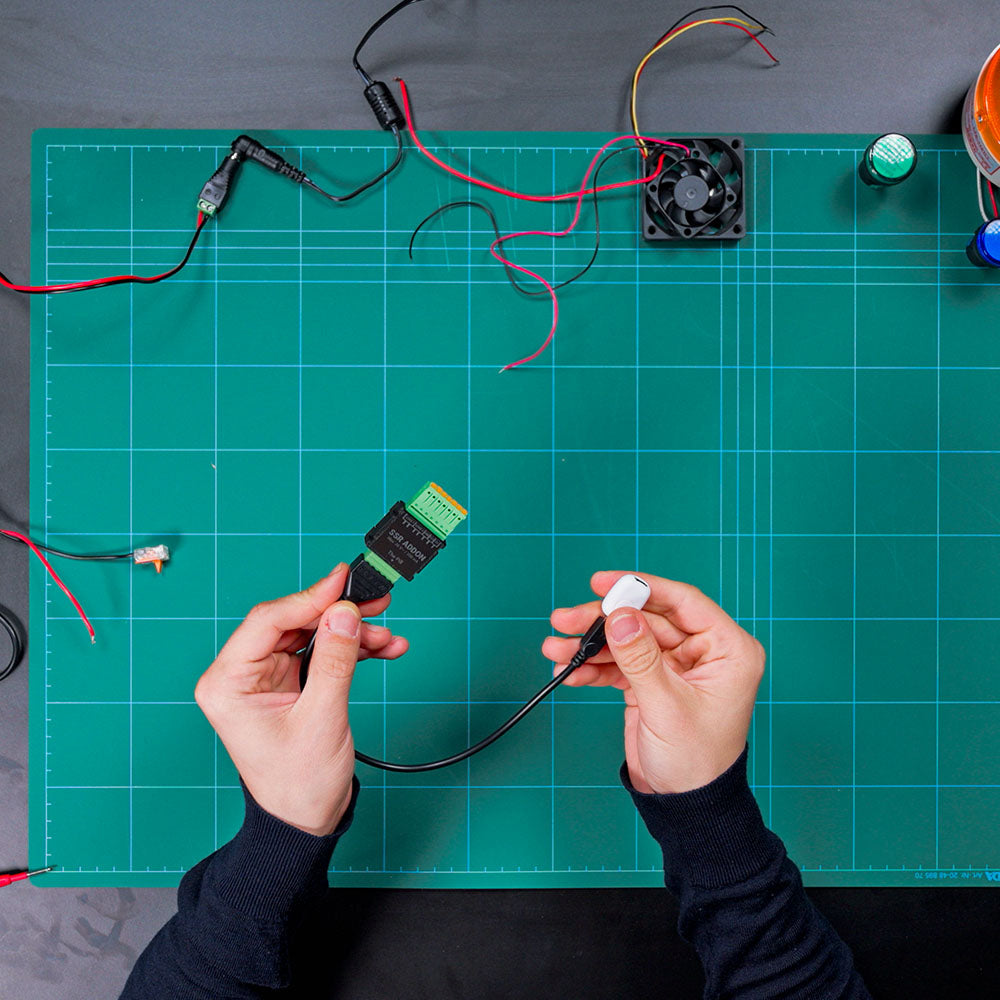

Interface connector for 5-Terminal Add-on for connection with The Pill

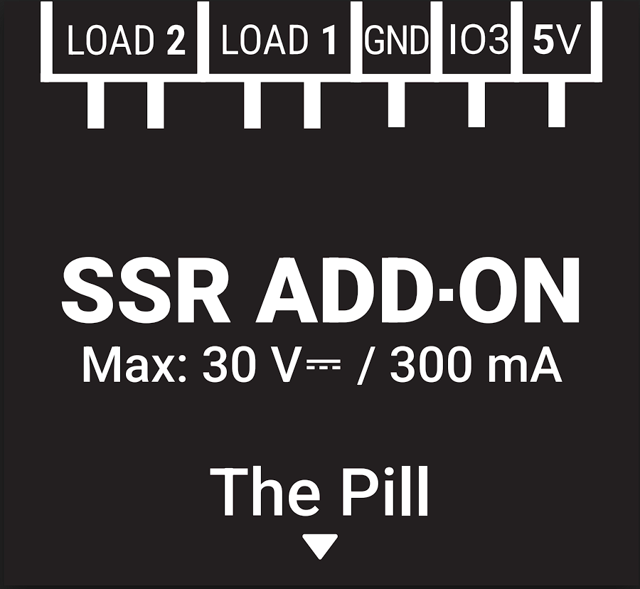

Symbol	Description	Usage
LOAD1	Channel 1 output	max. 30 V⎓ / 300 mA
LOAD2	Channel 2 output	max. 30 V⎓ / 300 mA
GND	Ground	Reference ground for connected sensors or power supply
IO3	Input/Output (logic-level 3.3V)	Configurable for: Digital Input or Digital Output
5V	5V Power	Power output for connected peripheral or 5V Power for The Pill

Physical
Size (HxWxD):	36 mm x 31mm x 11.5mm
Weight:	12 g
Shell color:	Black
Environmental
Ambient working temperature:	0 to 40 °C / 32 to 105°F
Storage temperature:	-20°C to 40°C / -5°F to 105°F
Humidity:	30 % to 70 % RH
Max. altitude:	2000 m / 6562 ft
Electrical
Power consumption:	< 0.6 W
Max. switching voltage:	30 V⎓
Max. switching current:	300 mA
