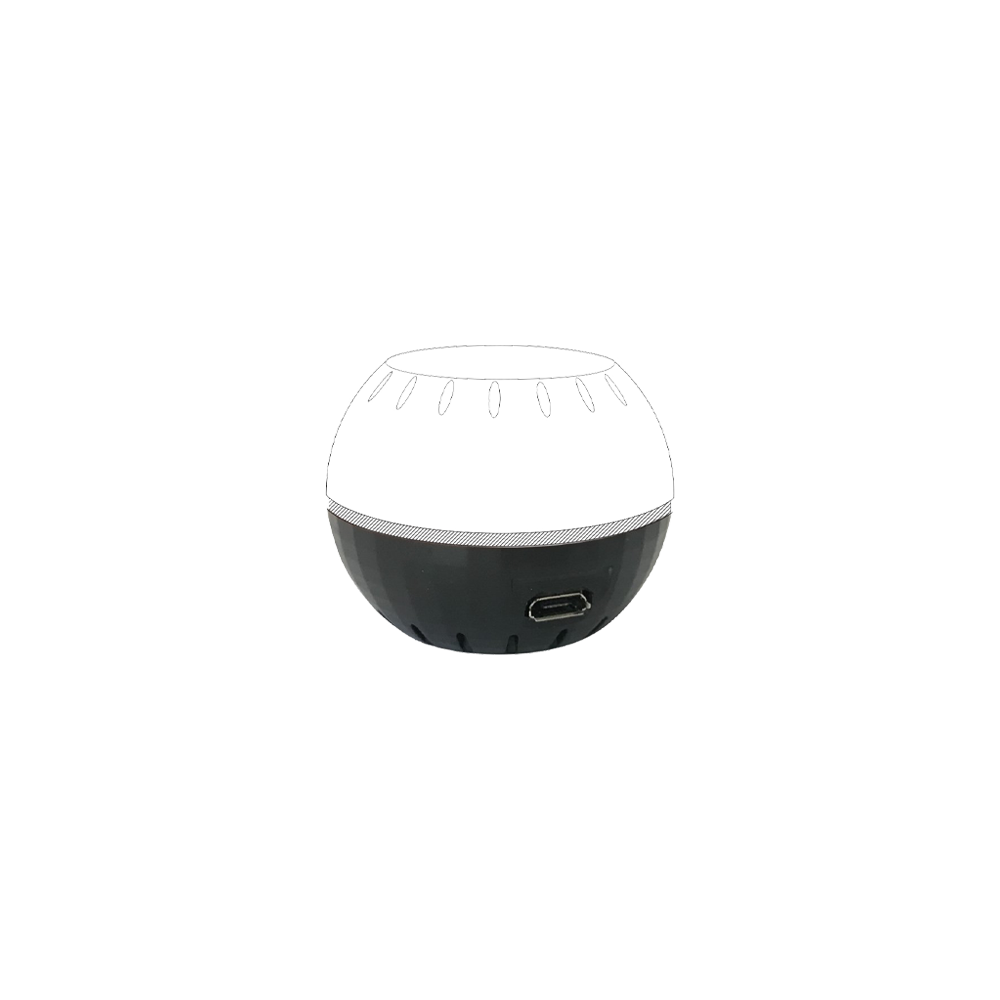

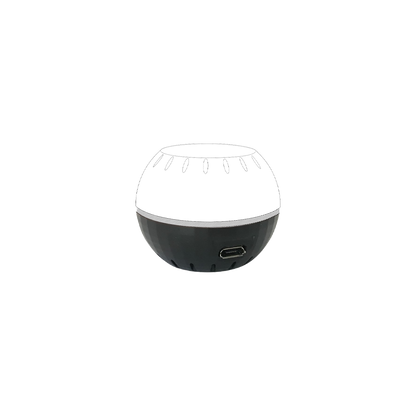

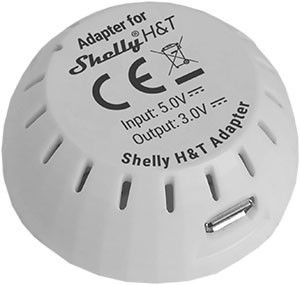

What is Shelly H&T USB Adapter?
Shelly H&T USB Adapter provides the option to power supply Shelly H&T using a standard 5 V power adapter with a Micro-B USB cable.
Specifications
| Type | Value |
|---|---|
| Physical | |
| Size (HxWxD): | 46x46x17 ±0.5 mm / 1.81x1.81x0.67 ±0.02 in |
| Weigh: | 7 ±1 g / 0.25 ±0.05 oz |
| Shell material: | Plastic |
| Color: | Black or white |
| Environmental | |
| Ambient temperature: | -10ºC to +50ºC / 14 °F to 122 °F |
| Humidity | 30 % to 90 % RH (non-condensing) |
| Electrical | |
| Power supply: | 5 V Micro-B USB adapter (not included) |
| Output voltage: | 3 VDC |
