Device identification
-

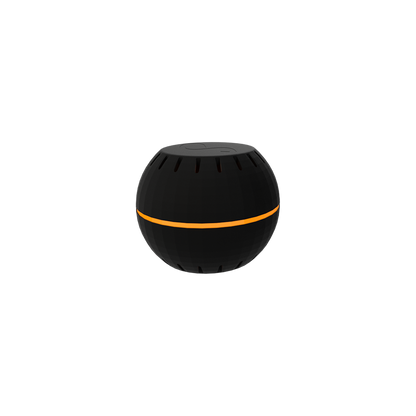

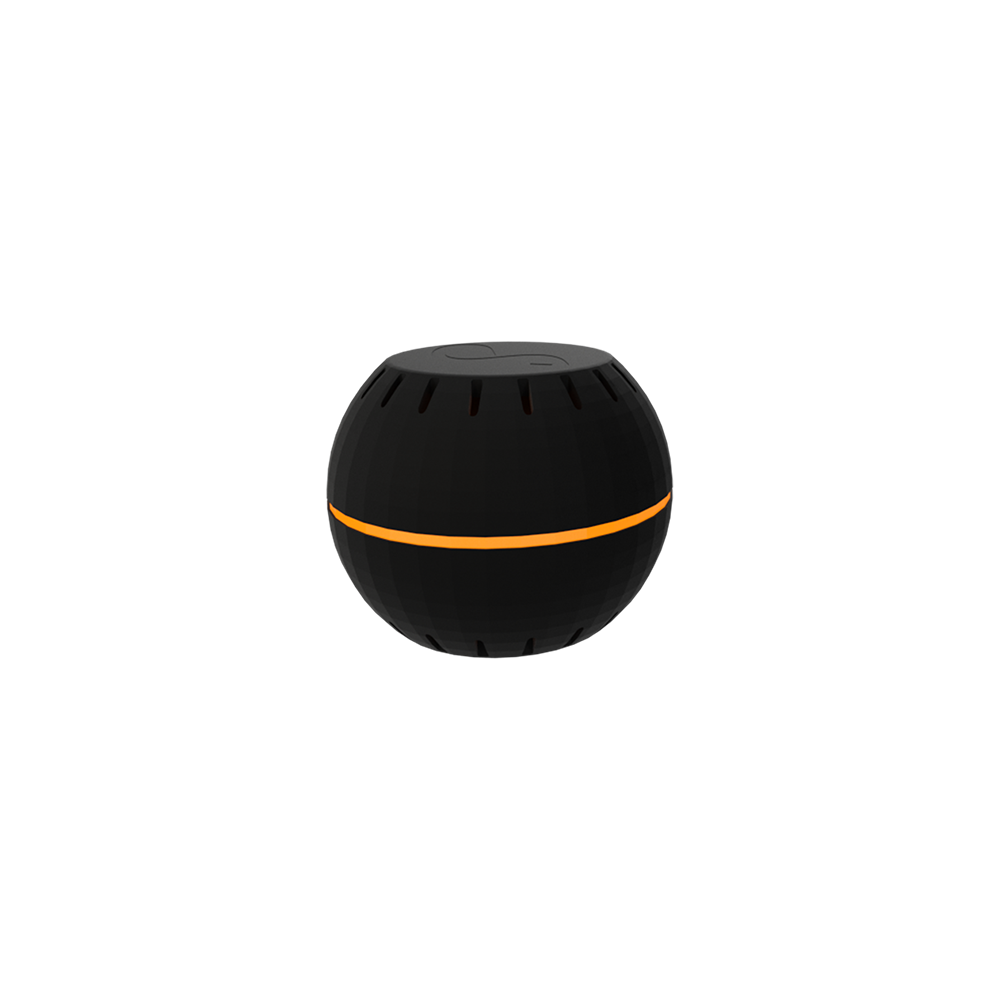

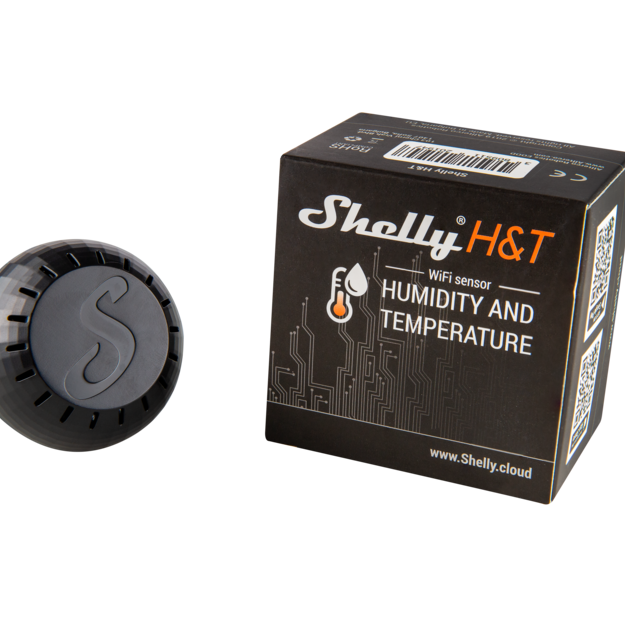

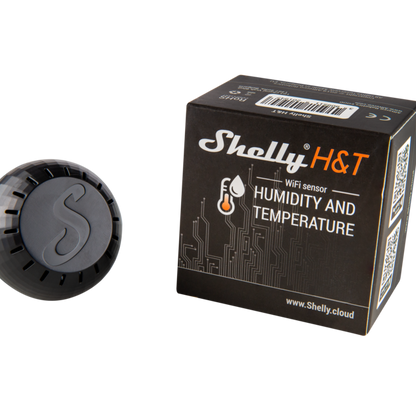

Device name: Shelly H&T
-
Device SSID: shellyht-XXXXXX
Short description
Shelly H&T is a smart temperature and humidity sensor, which can be remotely controlled and monitored through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.
Shelly H&T can be accessed, controlled, and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.
Shelly H&T has an embedded Web Interface, which can be used to monitor and control the device, as well as adjust its settings.
Main applications
-
Residential
-
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
-
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
-
Government/municipal
-
University/college
Integrations
-
Google
-
Samsung SmartThing
-
Alexa
Connectivity
-
Wi-Fi
User interface
Inputs
-
Reset button
-
Press and hold for 5 seconds to enable the Device access point connection.
-
Press and hold for 10 seconds to factory reset the Device.
-
Outputs
-
LED status light
Specifications
| Type | Value |
|---|---|
| Physical | |
| Size (HxD): | 35x46 mm / 1.38x1.81 in |
| Weight: | 16 g without battery |
| Mounting: | Wireless |
| Shell material: | Plastic |
| Color: | Black or white |
| Environmental | |
| Ambient temperature: | -10 °C to 50 °C / 14 °F to 122 °F |
| Humidity | 20 % to 90 % RH |
| Electrical | |
| Power supply, Batteries | 3V DC - CR123A |
| Estimated battery life | Up to 18 months |
| Power consumption | Static ≤70uA |
| Radio | |
| RF band: | 2401 - 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
| MCU | |
| CPU: | ESP8266 |
| Flash: | 2 MB |
| Firmware capabilities | |
| Webhooks (URL actions): | 5 with 5 URLs per hook |
| Scripting: | No |
| MQTT: | Yes |
| Sensors | |
| Temperature sensor: | Yes |
| Humidity sensor: | Yes |
Web interface guide
Read the Shelly H&T web interface guide
Components and APIs
Printed User Guide
Ръководство за употреба и безопасност
Compliance
