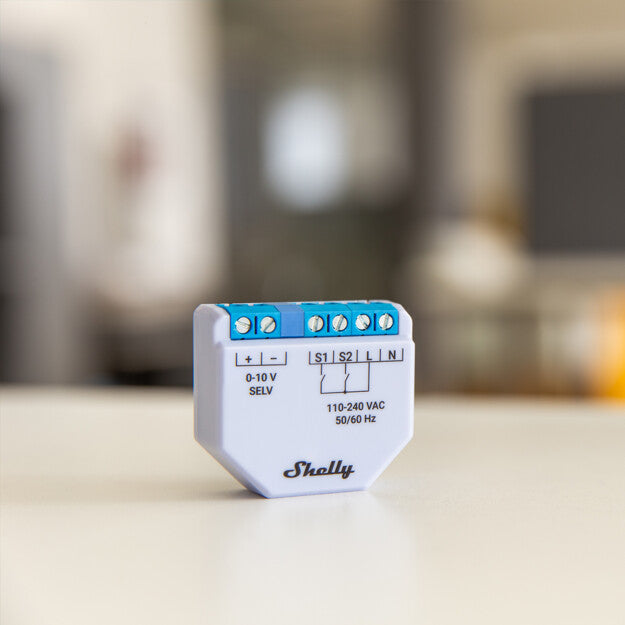

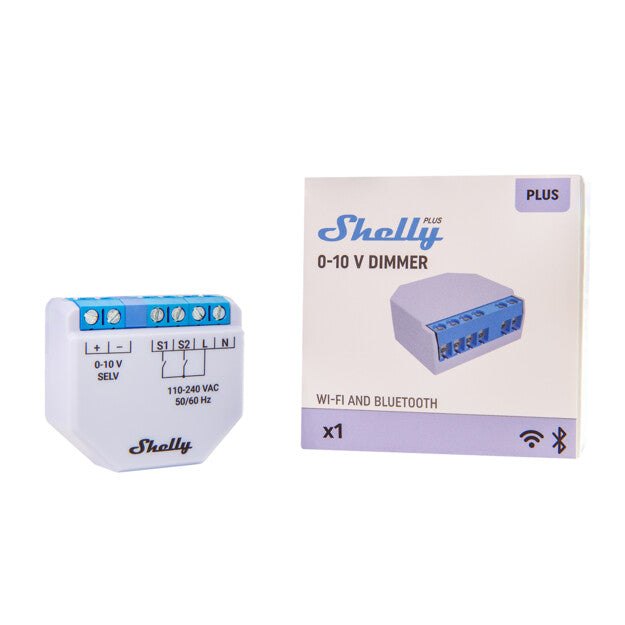

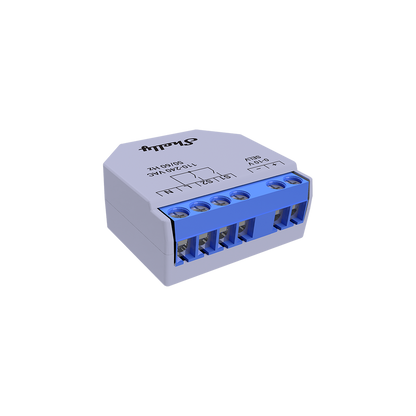

Shelly Plus 0-10V Dimmer
Device identification
Device name: Shelly Plus 0-10V Dimmer
Device model: SNDM-00100WW
Device SSID: ShellyPlus010V-XXXXXXXXXXXX
Device Bluetooth ID: 0x1070 / 0x0780 (GAP)
Short description
Shelly Plus 0-10V Dimmer (the Device) is a smart 0-10V dimming controller which allows remote control 0-10V dimming drivers through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.
Shelly Plus 0-10V Dimmer can be accessed, controlled, and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.
Shelly Plus 0-10V Dimmer has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.
Main features
Diverse driver integration: Supports 0-10V signal control for multiple types of drivers (lights, motors, valves, etc.).
Shelly Plus Add-on compatible: The Device supports connection with the sensor interface to the Shelly Plus devices.
Switch/Button input mode: Allows flexible input control through switches or buttons.
One/dual button dimming control: Allows to use the full functionalities of the Device for dimming control with any wall switch configuration.
Night mode: Enables to set a specific brightness of input lights during nighttime.
Min/Max brightness: Reframes the range of the dimming signal to get more precise brightness control on the output.
Button fade rate: Controls how quickly the output brightness changes while holding the button(s).
Transition duration: Controls the time for dimming from 0 to 100 %.
-
Schedules:
Basic schedules: Supports weekly schedules and routines, including setting of brightness, transition duration, and flip value of the dimming signal.
Advanced schedules: Supports detailed schedules and routines throughout the year with a broad range of time adjustments from seconds to months, including setting of brightness, transition duration, and flip value of the dimming signal.
Auto on/off timers: Enables auto on/off timer setting.
Local actions: Allows creating automation scenarios within the local Wi-Fi network, including setting of brightness, transition duration, and flip value of the dimming signal.
Webhooks: Support automation through lightweight, event-driven communication with other devices.
BLE Gateway: Facilitates communication between BLE and Wi-Fi-enabled devices.
Wi-Fi Range Extender: Retransmits the Wi-Fi signal and extends its reach.
Scripting: Allows creating automation scenarios through scripts.
Compatibility: Highly compatible with 3rd Party home automation systems.
No need for hub: Ready for use locally or remotely via Shelly Smart Control or 3rd Party systems.
Main applications
Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)…
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)…
Government/municipal
University/college
Farming
Use cases
Supports 0-10V signal control for multiple types of drivers (lights, motors, valves, etc. depending on the driver)
Control fan speed, if the motor or motor inverter has a 0-10V input. (Web interface will display light control interface.)
Control valves, if the valve has a 0-10V input. (Web interface will display light control interface.)
Integrations
Amazon Alexa supported capabilities
Yes
Google Smart Home supported traits
Yes
Samsung SmartThings supported capabilities
Yes
Simplified internal schematics

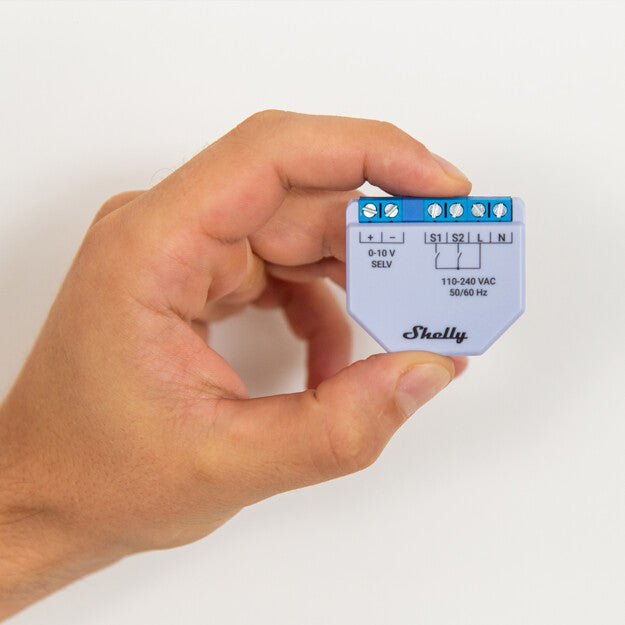

Device electrical interfaces
Inputs

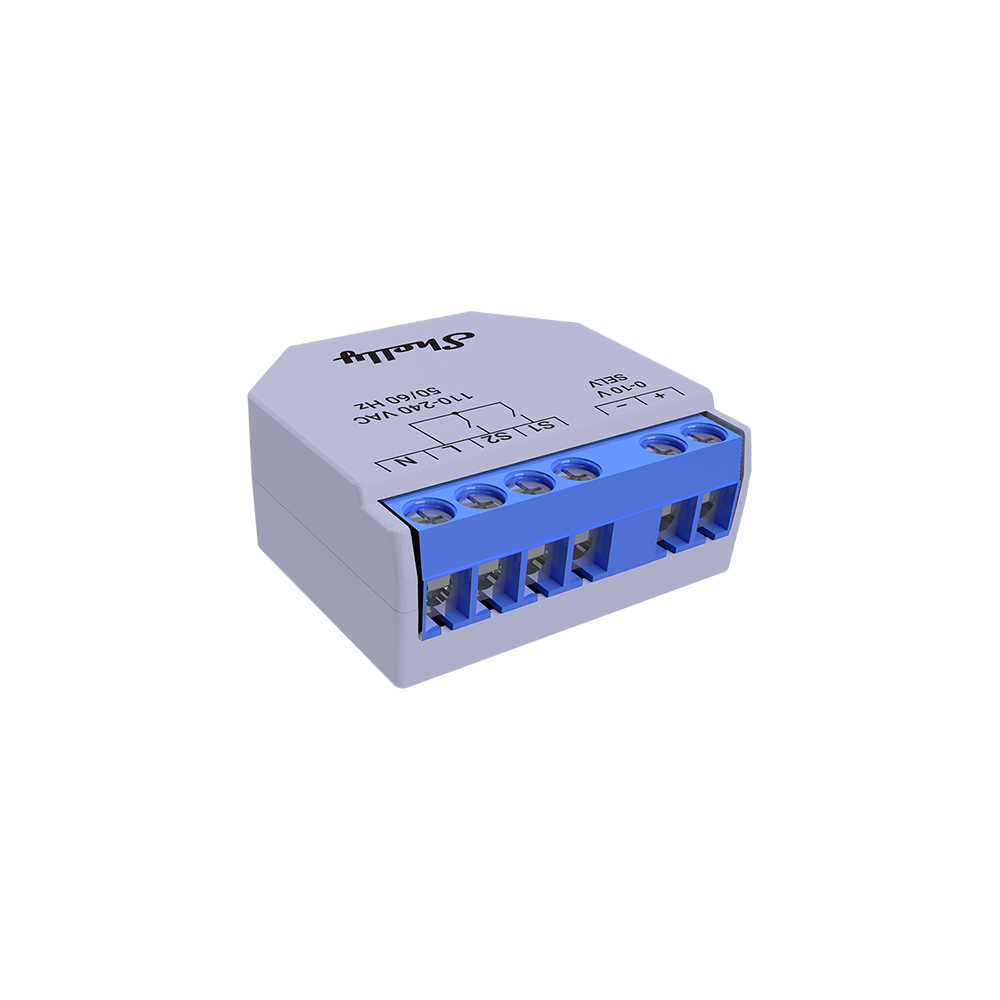

2 switch/button inputs on screw terminals: S1 and S2
2 power supply inputs on screw terminals: 1 N and 1 L
Outputs
2 0-10V outputs on screw terminals: + and -
Add-on interface
Shelly proprietary serial interface
⚠CAUTION! High voltage on the add-on interface when the Device is powered!
Connectivity
Wi-Fi
Bluetooth
Safety function
Overheating protection
Supported load types
0-10V signal control for multiple types of drivers (lights, motors, valves, etc.)
User interface
Inputs
-
One (Control) button
Press and hold for 5 seconds to enable Device access point and Bluetooth connection.
Press and hold for 10 seconds to factory reset the Device.
Outputs
-
LED (monocolor) indication
AP (Access Point) enabled and Wi-Fi disabled:
1 secondON/ 1 secondOFFWi-Fi enabled, but not connected to a Wi-Fi network:
1 secondON/ 3 secondsOFFConnected to a Wi-Fi network:
ConstantlyONCloud is enabled, but not connected:
1 secondON/5 secondsOFFConnected to Shelly Cloud:
ConstantlyONOTA (Over the Air Update):
½ secON/ ½ secondOFFButton pressed and held for 5 seconds:
½ secondON/ ½ secondOFFButton presses and held for 10 seconds:
¼ secondON/ ¼ secondOFF
The list above starts with the initial device status and the lowest priority. Every next state cancels the previous one.
Specifications
Quantity |
Value |
|---|---|
Physical | |
Size (HxWxD): |
42x37x17 ±0.5 mm / 1.65x1.46x0.66 ±0.02 in |
Weight: |
17 g / 0.60 oz |
Screw terminals max torque: |
0.4 Nm / 3.5 lbin |
Conductor cross section: |
0.5 to 1.5 mm² / 20 to 16 AWG (solid, stranded, and bootlace ferrules) |
Conductor stripped length: |
5 to 6 mm / 0.20 to 0.24 in |
Mounting: |
In-wall |
Shell material: |
Plastic |
Shell color: |
Shell: 2716C, print: black |
Environmental | |
Ambient working temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
Humidity: |
30 % to 70 % RH |
Max. altitude: |
2000 m / 6562 ft |
Electrical | |
Power supply: |
110 - 240 VAC ±10% |
Power consumption: |
< 1.2 W |
Neutral not needed: |
No |
0-10V voltage control type: |
Current sinking |
Output circuits ratings | |
Max. switching voltage: |
10 VDC |
Max. switching power: |
0.35 W |
Max. switching current: |
35 mA |
Sensors, meters | |
Internal-temperature sensor: |
Yes |
Radio | |
Wi-Fi | |
Protocol: |
802.11 b/g/n |
RF band: |
2401 - 2495 МHz |
Max. RF power: |
< 20 dBm |
Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
Bluetooth | |
Protocol: |
4.2 |
RF band: |
2400 - 2483.5 MHz |
Max. RF power: |
< 4 dBm |
Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
Microcontroller unit | |
CPU: |
ESP32-U4WDH |
Flash: |
4 MB |
Firmware capabilities | |
Schedules: |
20 |
Webhooks (URL actions): |
20 with 5 URLs per hook |
MQTT: |
Yes |
Scripting: |
Yes |

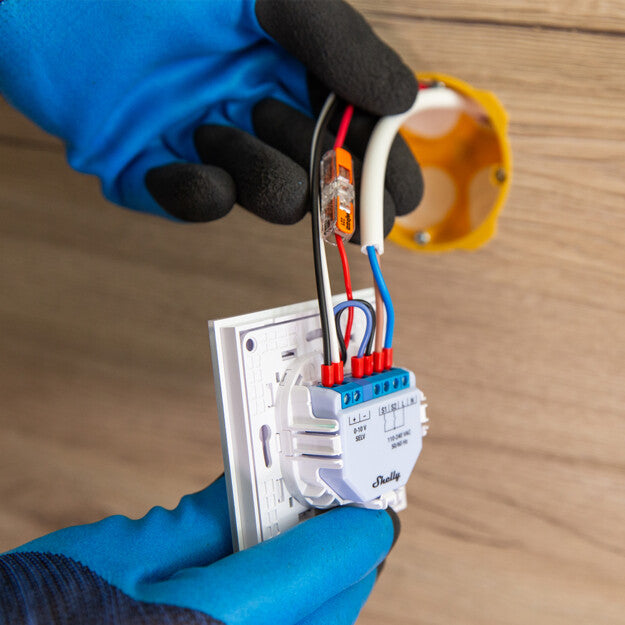

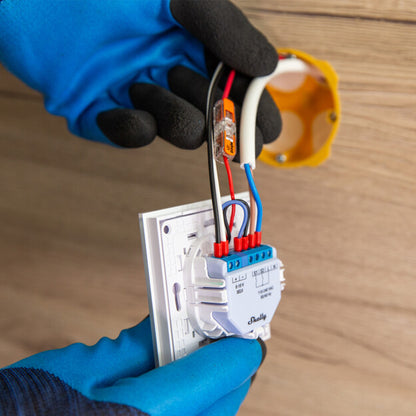

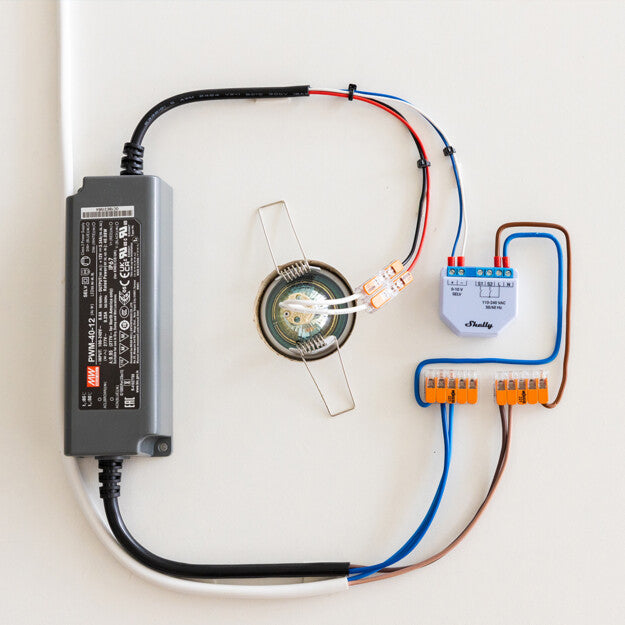

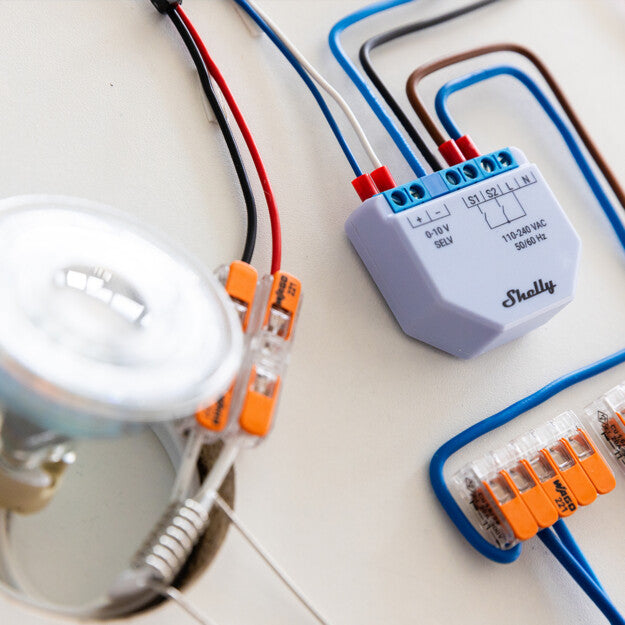

Basic wiring diagrams
Legend
Terminals |
Wires |
||
|---|---|---|---|
+ |
0-10 VDC positive terminal |
L |
Live (110-240 V) wire |
- |
0-10 VDC negative terminal |
N |
Neutral wire |
S1 |
Switch/button input terminals for light control |
||
S2 |
Switch/button input terminals for light control |
||
L |
Live (110-240 V) terminal |
||
N |
Neutral terminal |
||
Components and APIs
Compliance
Shelly Plus 0-10V Dimmer multilingual EU declaration of conformity.pdf
Shelly Plus Dimmer 0-10V UK PSTI ACT Statement of compliance.pdf
Printed user guide
Shelly Plus 0-10V Dimmer multilingual printed user and safety guide.pdf
