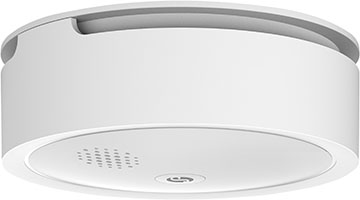

Shelly Plus Smoke
Device identification
Device name: Shelly Plus Smoke
Device model: SNSN-0031Z
Device SSID: ShellyPlusSmoke-XXXXXX
Short description
Shelly Plus Smoke (the Device) is a smart photoelectric smoke alarm, which is effective at detecting slow fires that smolder for hours before bursting into flames.
Sources of these fires may include burning cigarettes left on couches or bedding.
Features
Battery operated
LED indication
Low battery warning
Alarm pause (Hush mode)
Test function
Easy Installation
DIN EN 14604 certified
Main applications
Residential
Connectivity
Wi-Fi
Bluetooth
Each connectivity option can be enabled or disabled by the user.
User interface
Inputs
-
One push button
Press and hold for 3 sec to test the Device.
Press briefly to silence an alarm.
Press briefly 3 times to put the Device in Setup mode for 2 minutes.
Press briefly 5 times to factory reset. Device stays in Setup mode for 2 minutes.
Outputs
-
LED indication
Normal operation: Red light flashes once every 53 seconds.
Testing: 3 red light flashes.
Alarm: Continuous red light flashes.
Malfunction: Red light flashes twice every 53 seconds
Hushed alarm: Red light flashes once every 10 seconds.
Low battery warning: Red light flashes once every 53 seconds.
Hushed low battery warning: Red light flashes once every 53 seconds (with no sound).
Device in Setup mode: Green light flashes quickly.
Device in Setup mode for 2 minute: Green light flashes slowly.
-
Buzzer
Button pressed: 1 short beep.
Testing: 3 short beeps.
Alarm: Continuous loud beeps.
Low battery warning: Short beep once every 53 seconds.
Specifications
Type |
Value |
|---|---|
Physical | |
Size (DxH): |
86x31 ±0.5 mm / 3.39x1.22 ±0.02 in |
Weight: |
95 ±1 g / 3.35 ±0.05 oz |
Mounting: |
Ceiling |
Shell material: |
Plastic |
Color: |
White |
Device lifespan: |
10 y |
