Replace your old thermostatic valve with Shelly TRV in less than 5 minutes on any number of radiators in your home and control them no matter where you are. Shelly TRV has a rechargeable battery with time between charging up to 2 years (depending on usage and network quality).
Device identification
-

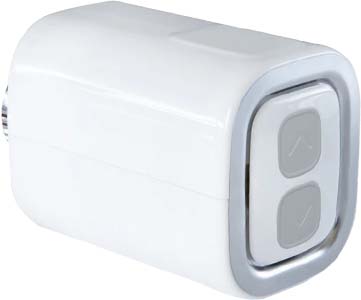

Device name: Shelly TRV
-
Device SSID: shellytrv-XXXXXX
Short description
Shelly TRV is a smart thermostatic valve, which has a rechargeable battery and allows remote control of radiators through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.
Shelly TRV can be accessed, controlled, and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.
Shelly TRV has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.
Main applications
-
Residential
-
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
-
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
-
Government/municipal
-
University/college
Integrations
-
Google
-
Samsung SmartThing
-
Alexa
Inputs
-
USB type C charging port
Connectivity
-
Wi-Fi
User interface
Inputs
-
Reset button
-
Press and hold for 5 seconds to enable the Device access point connection.
-
Press and hold for 10 seconds to factory reset the Device.
-
-
Up and Down buttons
-
Change temperature - press any of the buttons briefly, so that the device will display the mesured temperature for 3 seconds. You can also press and hold one of the buttons for 3 seconds to see the current temperature. Then, using the Up and Down buttons, you can set your target temperature ( from 5°C to 30°C).
-
Check status - press and hold both buttons for 5 seconds, then use either one of the buttons to scroll through the parameters (including Mode, Battery level and Status).
-
Outputs
-
Two-digit seven-segment LED display
Supported valves
Without adapter
-
M30 x 1.5
With supplied adapter
-
Danfos
-
RA
-
RAV
-
RAVL
-
-
Caleffi
-
Giacomini
-
M28 x 1.5
-
Sam
-
Slovarm
-
Comap
-
Markardys
-
TA
-
Herz
-
MMA
-
Remagg
-
Pont a Mousson
-
With third-party adapter
-
Gampper (27 mm thread and inner thread M22)
-
Glacomini
-
Ista
-
Meges (M38 x 1.5)
-
Ondal (M38 x 1.5)
-
Oventrop (M30 x 1.0 with 4 prongs)
-
Rossweiner (M33 x 2.0)
-
Vallant (30.5 mm)
View the full list of valves and their compatibility:
Shelly TRV valves compatibility list
Specifications
| Type | Value |
|---|---|
| Physical | |
| Size (HxWxD): | 94x62x53 mm/ 3.7x2.44x2.08 in |
| Weight: | 240 g / 1.35 oz |
| Mounting: | Radiator valve |
| Mounting ring: | M30x1.5 |
| Shell material: | Plastic |
| Color: | White |
| Environmental | |
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Electrical | |
| Power supply, Batteries | Li-ion 3.7 V / 6500 mAh |
| Estimated battery life | Up to 2 years (depending on working conditions) |
| Power supply, USB | Type-C (power adapter and cable not included) |
| Radio | |
| RF band: | 2401 - 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
| MCU | |
| CPU: | SiLabs WGM160P |
| Flash: | 6 MB |
| Firmware capabilities | |
| Schedules: | 5 profiles |
| Webhooks (URL actions): | 6 with 5 URLs per hook |
| Scripting: | No |
| MQTT: | Yes |
| CoAP: | Yes |
| Sensors | |
| Internal-temperature sensor: | Yes |
Web interface guide
Read the Shelly TRV web interface guide
Components and APIs
Printed User Guide
Multilanguage user guide - English, Deutsch, Italiano, Español, Português, Français
Compliance
