Device identification
-

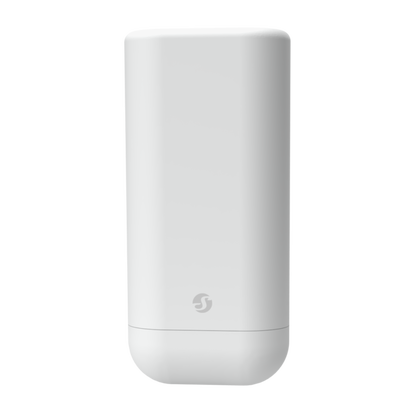

Device name: Shelly Motion 2
-
Device model: SHMOS-02
-
Device SSID: shellymotion2-XXXXXX
Short description

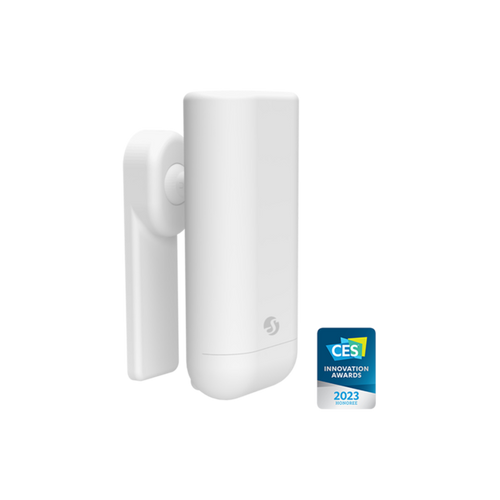

Shelly Motion 2 (the Device) is a high-sensitivity, ultra-low power consumption Wi-Fi motion sensor, which also features light and temperature metering. The built-in light and temperature sensors provide additional opportunities for home or office automation. Shelly Motion 2 also has an integrated accelerometer for tamper protection and features vibration detection. The built-in 6500 mAh rechargeable Li-ion battery allows the Device to stay connected to the Internet in standby mode for up to 3 years, and in active transmission (approx. 6 hours/day motion detection) estimated between 12 and 18 months without recharging.
Main applications
-
Residential
-
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
-
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
-
University/college
Integrations
-
Alexa

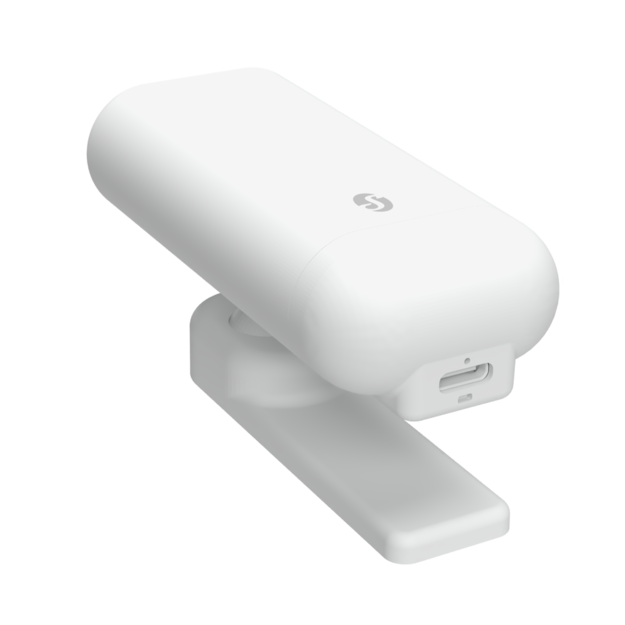

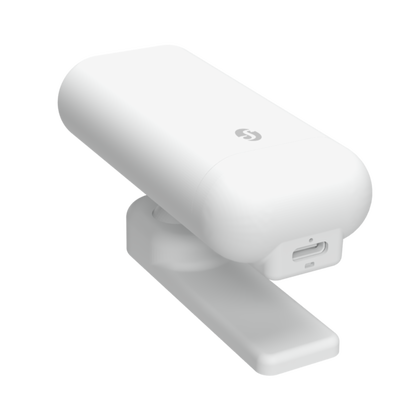

USB Type-C port
-
To supply power to the Device.
-
Can be used to recharge batteries inside the Device.
Connectivity
-
Wi-Fi
User interface
Inputs
-
Reset button (B)
Outputs
-
Charging indicator (A)
-
LED indication (C)
-
Blue: AP mode
-
Blue brief flash: Settings changed
-
Blue flashing: Firmware update
-
Red brief flash: Motion detected and reported
-
Red long flash: Error while performing firmware update.
-
Green brief flash: Unreported motion detection (the Device is not connected, or motion detection is disabled)
-
Red, green and blue flashing sequentially: Tamper detection or Device started
-
Cyan brief flash: Motion detection while in AP mode.
-
Specifications
| Type | Value |
|---|---|
| Physical | |
| Size (HxWxD): | 89.3x41.4x22.9 mm / 3.52x1.63x0.90 inch (without stand) |
| Weight: | |

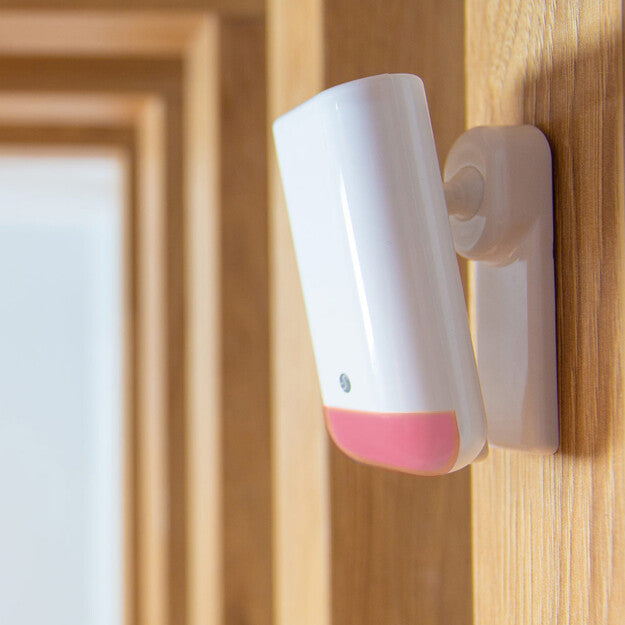

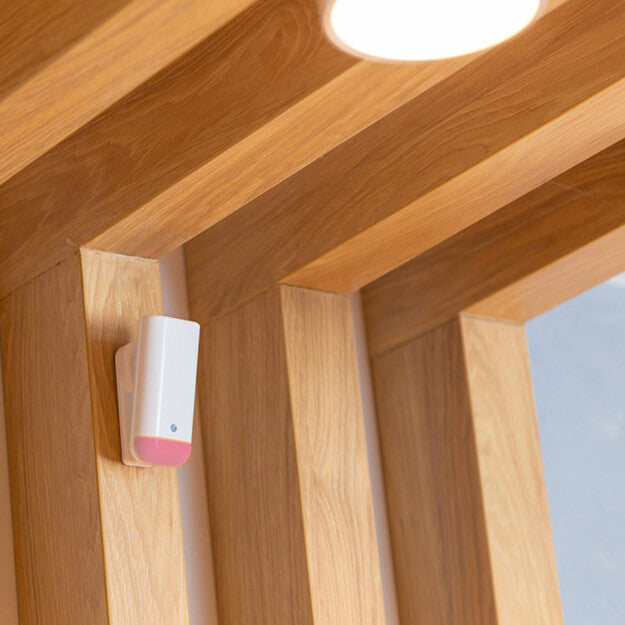

| Mounting: | Wall mounting (indoor use only, use screws with a head diameter between 5-8 mm / 0.20-0.31 inch) |
| Shell material: | Plastic |
| Color: | White |
| Environmental | |
| Ambient temperature: | -10 °C to 50 °C / 14 °F to 122 °F |
| Humidity | 30 % to 70 % RH |
| Electrical | |
| Power supply, Batteries | Li-ion 3.7 V / 6500 mAh |
| Estimated battery life | 12-18 months (motion detection) |
| Power supply, USB | Type-C (power adapter and cable not included) |
| Sensors | |
| Temperature sensor: | Yes |
| Light sensor: | Yes |
| Motion sensor: | Yes (detection range: 9 m / 30 ft) |
| Radio | |
| RF band: | 2401 - 2495 MHz |
| Max. RF power: | <20 dBm |
| Wi-Fi protocol: | 802.11 b/g/n |
| Wi-Fi Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
| MCU | |
| CPU: | SiLabs |
| Flash: | 6 MB |
| Firmware capabilities | |
| Schedules: | Yes (up to 20) |
| Webhooks (URL actions): | 13 with 5 URLs per hook |
| MQTT: | Yes |
| CoAP: | Yes |
