Shelly Pro RGBWW PM

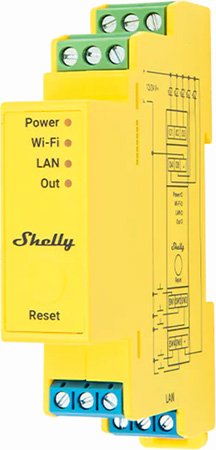

Device image

Device identification

• Device name: Shelly Pro RGBWW PM

• Device model: SPDC-0D5PE16EU

• Device SSID: ShellyProRGBWWPM-XXXXXXXXXXXX

• Device Bluetooth ID: 0x2012

Short description

Shelly Pro RGBWW PM (the Device) is a DIN-rail mountable, five-channel smart light controller. It has 5 inputs (button, switch or analog), and five outputs. The Device is commonly used with LED strips. It supports 4 profiles - RGB and CCT (default), CCT x 2, RGB and lights x 2 and Lights x 5. In Lights x 5 profile, 5 different led strips (groups of lights) can be controlled independently. Power measurement functionality allows real time track of the voltage, current and power consumption.

The Device can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. It can be accessed, controlled, and monitored remotely from any place where the User has internet connectivity, as long as it is connected to a Wi-Fi router and the Internet. Shelly Pro RGBWW PM has an embedded Web Interface which can be used to monitor and control the Device, as well as adjust its settings.

Main features

• DIN rail mountable

• Supports multiple profiles: Supports RGB and CCT (default profile), CCT x 2, RGB and lights x 2 and Lights x 5

• Power measurement: Precise monitoring of energy consumption.

• Bluetooth: The Device complies the Bluetooth standard and can connect with other Bluetooth devices to exchange data in short range.

• BLE Gateway: Facilitates communication between BLE and Wi-Fi-enabled devices.

• Wi-Fi: The Device can connect to a wireless network.

• Wi-Fi Range extender: Retransmits the Wi-Fi signal and extends its reach.

• Ethernet:

• Scripting: Allows creating automation scenarios through scripts.

• Basic Schedules: Supports weekly schedules and routines, including setting of brightness, transition duration, and flip value of the dimming signal.

• Аdvanced Schedules: Supports detailed schedules and routines throughout the year with a broad range of time adjustments from seconds to months, including setting of brightness, transition duration, and flip value of the dimming signal.

• Auto on/off timers: Enables auto on/off timer setting.

• Local actions: Allows creating automation scenarios within the local Wi-Fi network, including setting of brightness, transition duration, and flip value of the dimming signal.

• Webhooks: Supports automation through lightweight, event-driven communication with other devices.

• Compatibility: Highly compatible with 3rd Party home automation systems.

• No need for hub: Ready for use locally or remotely via Shelly Smart Control or 3rd Party systems.

• Activity log: Stores detailed history of events.

• KVS (Key-value storage): KVS service provides a basic persistent storage of key-value pairs.

• Safety: Оver current/voltage/power protections

• Dynamic components: A special set of components that do not exist in the device initially and are created dynamically by the user.

• Independent control for each output (channel) in Lights x 5 profile: Provides separate control for each output for maximum flexibility.

• Hight frequency mode: The users can choose to increase PWM frequency to 22kHz to reduce the acoustic noise from the DC driver. This might cause non-precise colors in profiles with RGB lights when running at low brightness. Default frequency: 833 Hz.

• Night Mode: Enables to set a specific brightness of input lights during nighttime.

  • When the night mode time is set, the brightness is always set to the target night mode brightness, no matter the current brightness or the min brightness on power on

  • Default values: 50% brightness, RGB (255,255,255), 4600K (what’s applicable). Option to change brightness or color/color temperature only (to keep current color/color temperature or brightness).

• Switch/Button/Analog input mode: Allows flexible input control through switches, buttons or potentiometers (10kΩ analog input)

  • CCT x 2 - Input(0) and Input(1) control CCT(0) (no temperature dimming), Input(2) and Input(3) control CCT(1), Input(4) is detached

  • RGB and CCT - Input(0) and Input(1) control RGB, Input(2) and Input(3) control CCT. Input(4) is detached

  • RGB and lights x 2 - Input(0) controls RGB, Input (2) controls Light(0), Input (3) controls Light(1), Input(1) and Input(4) are detached

  • Lights x 5 - Input(x) controls Light(x)

  • One button dimming control - all profiles

  • Dual button dimming control - dimming up/down for brightness only (color temperature cannot be controlled (changed) through buttons).

• Transition duration: Controls the time between change from current brightness level to desired brightness level in request (both for color and white). Applied on color temperature property also. No separate transition for color temperature. Default transition not applicable if input mode is “Analog”, in this case only the explicit (custom) transition is applied for schedules and actions.

• Minimum brightness on toggle On: Brightness level (in percent) applied when there is a toggle On and current brightness is lower than 'Min brightness on toggle'. Default is 3% (for all profiles). Applied on RGB, CCT and Light component.

• Min/Max brightness: Reframes the range of the dimming signal to get more precise brightness control on the output. Applied on brightness property only.

• Min/Max color temperature: Provides support for different CCT LED strips by remapping output color temperature min/max range to the specified values. Max value needs to be greater than min value. Min value: 1000-9999 K, max value: 1001-10000 K. Default values: min: 2700 K, max: 6500 K

• Button fade rate: Controls how quickly the output brightness changes while holding the button(s).

• Button presets: Brightness and color (or color temperature) to be applied on double-click. Default values: 100% brightness, RGB (255, 255, 255), 4600 K. Option to change brightness or color/color temperature only (to keep current color/color temperature or brightness).

Use cases

• Power monitoring: Monitor power consumption of all connected lights in real-time. This is useful for understanding energy usage patterns and promoting energy efficiency.

• RGBCCT or Five Individual Lights Control: Manage an RGBCCT (Red, Green, Blue, Correlated Color Temperature) light or up to five separate light sources.

• Wake-up and sleep routines: Use a wide range of color and brightness levels in Night mode to simulate sunrise or sunset by gradually changing the color and brightness. Implement circadian lighting, promoting better sleep-wake cycles and supporting overall well-being by adjusting light color and intensity throughout the day.

• Child-friendly night lights: Create a comforting and child-friendly environment. Adjust colors to provide a soothing ambiance for children during bedtime.

• Seasonal or entertainment decoration: Decorate homes or commercial spaces for different seasons or holidays by adjusting the RGBW lighting. For example, use warm tones for autumn and festive colors during holidays. Set dynamic and vibrant lighting patterns for parties, gatherings, or entertainment events.

• Smart presence simulation: Set customized color and brightness levels at at any given time or based on sunrise/sunset. Enhance home security by simulating presence and turning lights on and off in a natural pattern.

• Retail and commercial displays: Use the Device for visual merchandising in retail spaces. Showcase products with dynamic lighting to attract attention and create visually appealing displays.

• Enhanced lighting control options: Integrate the Device with most of the frequently used home automation systems like Home Assistant, Google Home, Alexa, and SmartThings for expanded control options.

• Dynamic art installations: Integrate the Device into art installations or exhibitions to add dynamic and interactive lighting effects, enhancing the visual impact and engagement.

Main applications

• Residential

• MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)

• Light commercial (small office buildings, small retail/restaurant/gas station, etc.)

• Government/municipal

• University/college

• Farming

Integrations

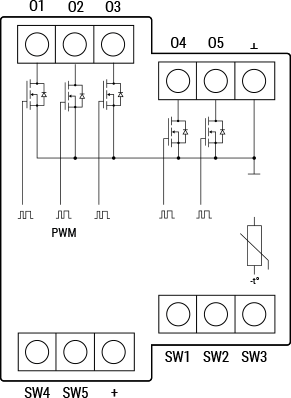

Simplified internal schematics

Device electrical interfaces

Inputs

• 5 switch/button inputs on screw terminals: SW1, SW2, SW3, SW4 and SW5

• 2 power supply inputs on screw terminals: 1 GND and 1 DC

Outputs

• 5 outputs: O1, O2, O3, O4 and O5

Ethernet port

• 1 RJ45 connector

⚠CAUTION! Plug in or unplug the LAN cable only when the Device is powered off! The LAN cable connector must not be metallic in the parts touched by the user to plug in or unplug the cable.

Add-on interface

• Shelly proprietary serial interface

⚠CAUTION! High voltage on the add-on interface when the Device is powered!

Connectivity

• Ethernet

• Wi-Fi

• Bluetooth

Safety function

• Overheating protection

• Overvoltage protection

• Overcurrent protection

• Overpower protection

Supported load types

• Incandescent

• LED and CFL

User interface

Inputs

Specifications

Basic wiring diagrams

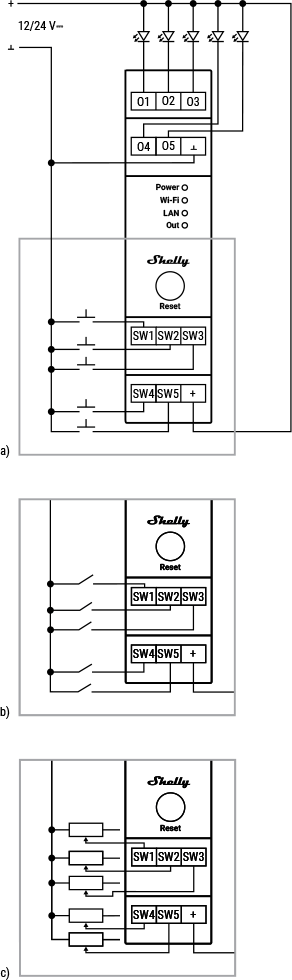

Lights x 5 wiring

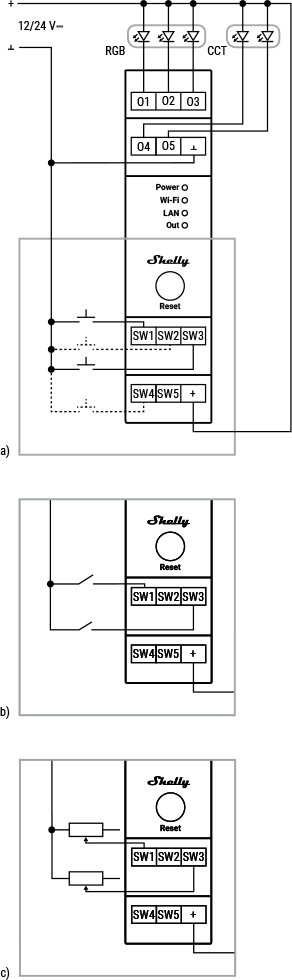

RGB and CCT wiring

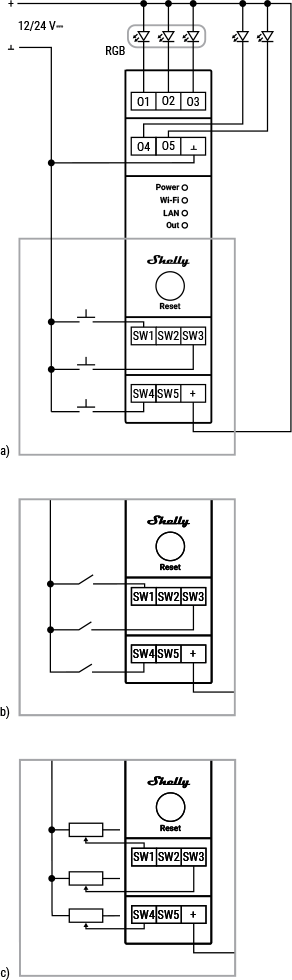

RGB and lights x 2 wiring

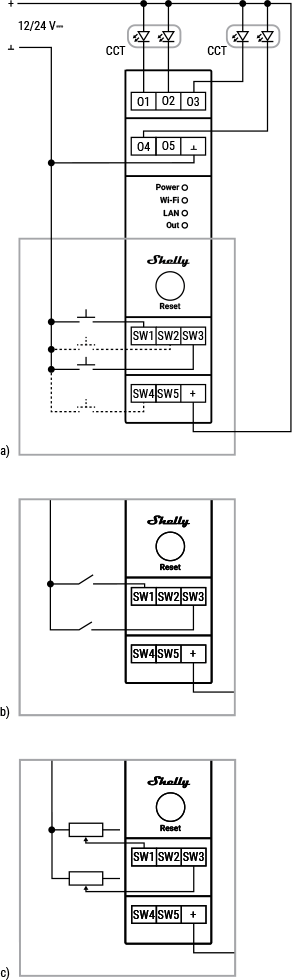

CCT x 2 wiring

Legend

Shelly Smart Control

• Adding the device to the Shelly Smart Control

Components and APIs

• This device

• All Shelly devices and services

Compliance

• Shelly Pro RGBWW PM multilingual EU declaration of conformity 301 2026-08-10.pdf

• Shelly Pro RGBWW PM UKCA declaration of conformity 301 2026-08-10.pdf

• Shelly Pro RGBWW PM UK PSTI ACT statement of compliance 301 2026-08-10.pdf

Printed user guide

• Shelly Pro RGBWW PM multilingual printed user and safety guide.pdf
