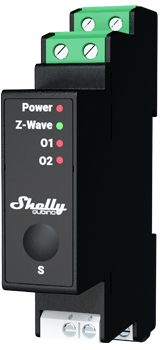

Manual operation for Shutter with momentary switch
Parameter No. 71 set to 0 and Parameter No. 1 set to 0.

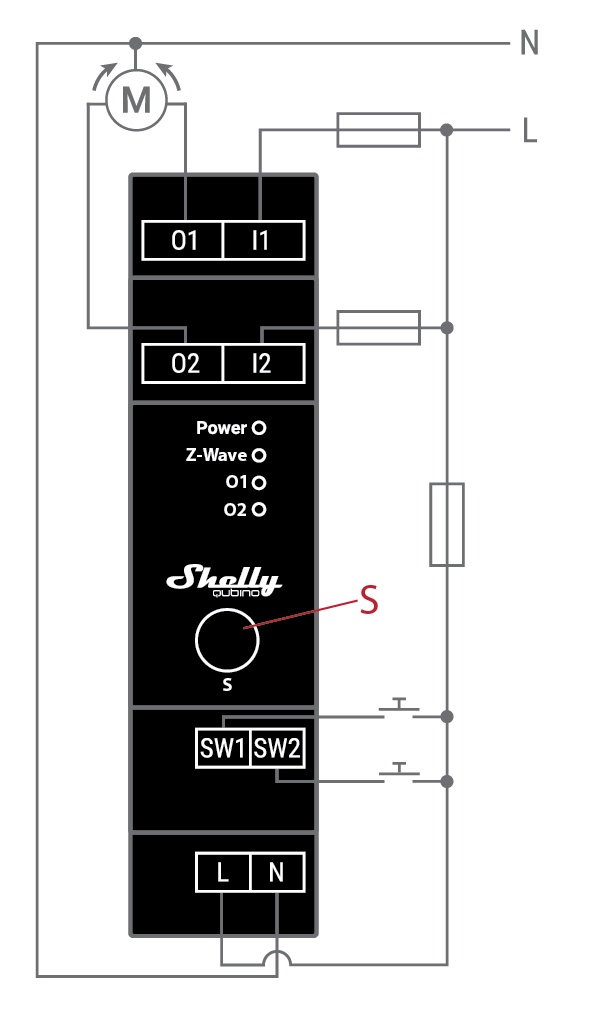

Pressing the push-button connected to SW1 (up) for less than 0,5 second (short press) will initiate the upward movement.
Pressing the push-button connected to SW2 (down) for less than 0,5 second (short press) will initiate the downward movement.
If the Shutter is moving, any press (on any push-button) will stop the movement.
Pressing the push-button connected to SW1 (up) for more than 0,5 second (long press) will initiate the upward movement until the push-button is released.
Pressing the push-button connected to SW2 (down) for more than 0,5 second (long press) will initiate the downward movement until the push-button is released.
Action on push-button |
Blind is not moving |
Blind is moving up |
Blind is moving down |
Tilting the slats of venetian blind is ongoing |
Short press (less than 0,5 seconds) in the UP direction |
Starts moving the blind upwards |
Stops moving the blind |
Stops moving the blind |
No action |
Short press (less than 0,5 seconds) in the DOWN direction |
Starts moving the blind downwards |
Stops moving the blind |
Stops moving the blind |
No action |
Press and hold (longer than 0,5 seconds) in the UP direction |
Starts moving the blind upwards. In case of venetian blinds, this also includes tilting the slats. |
Moving |
Moving |
Tilting the slats to the end and then moving the blind UP |
Press and hold (longer than 0,5 seconds) in the DOWN direction |
Starts moving the blind downwards. In case of venetian blind, this also includes tilting the slats. |
Moving |
Moving |
Tilting the slats to the end and then moving the blind DOWN |
Release the push-button after a long press |
No action |
Stops moving the blind |
Stops moving the blind |
Stops tilting the slats |
Manual operation for Shutter with a toggle switch
Parameter No. 71 set to 0 and Parameter No. 1 set to 1.
Pressing the toggle switch connected to SW1 (up) will initiate the upward movement until the toggle switch is released.
Pressing the toggle switch connected to SW2 (down) will initiate the downward movement until the toggle switch is released.
Manual operation for venetian blinds with a momentary switch
Parameter No. 71 set to 1 and Parameter No. 1 set to 0.
General rules:
Short press (< 0,5 seconds) initiates the blind movement
Long press (> 0,5 seconds) initiates the slats movement
Pressing the push-button connected to SW1 (up) for less than 0,5 second (short press) will initiate the upward movement.
Pressing the push-button connected to SW2 (down) for less than 0,5 second (short press) will initiate the downward movement.
If the Shutter is moving, any press (on any push-button) will stop the movement.
Pressing the push-button connected to SW1 (up) for more than 0,5 second (long press) will initiate the slats rotation (0 to 100%) until the push-button is released or the end rotation position is reached. The rotation time is defined in the Parameter No. 72.
Pressing the push-button connected to SW2 (down) for more than 0,5 second (long press) will initiate the slats rotation (100 to 0%) until the push-button is released or the end rotation position is reached. The rotation time is defined in the Parameter No. 72.
Action on push button |
Blind is not moving |
Blind is moving up |
Blind is moving down |
Tilting the slats of venetian blind is ongoing |
Short press (less than 0,5 seconds) in the UP direction |
Starts moving the blind upwards |
Stops moving the blind |
Stops moving the blind |
Stops tilting the slats |
Short press (less than 0,5 seconds) in the DOWN direction |
Starts moving the blind downwards |
Stops moving the blind |
Stops moving the blind |
Stops tilting the slats |
Press and hold (longer than 0,5 seconds) in the UP direction |
Starts tilting the slats |
No action |
No action |
Tilting the slats until the rotation is complete |
Press and hold (longer than 0,5 seconds) in the DOWN direction |
Starts tilting the slats |
No action |
No action |
Tilting the slats until the rotation is complete |
Release the button after long press |
No action |
Stops moving the blind |
Stops moving the blind |
Stops tilting the slats |
Manual operation for venetian blinds with a toggle switch
Parameter No. 71 set to 1 and Parameter No. 1 set to 1.
Pressing a toggle switch connected to SW1 (up) will initiate the upward movement, until the toggle switch is released.
Pressing a toggle switch connected to SW2 (down) will initiate the downward movement, until the toggle switch is released.
When the slats are at 100% position and the UP is pressed quickly, the blind will move up.
When the slats are at 0% position and the DOWN is pressed quickly, the blind will move down.
Slats positioning
To reach the maximum precision of the slats positioning when the blind is stopped by a push-button, gateway
