Device identification

Device name: Shelly BLU TRV
Device model: SBTR-001AEU
Device Bluetooth ID: 0x0008

Short description

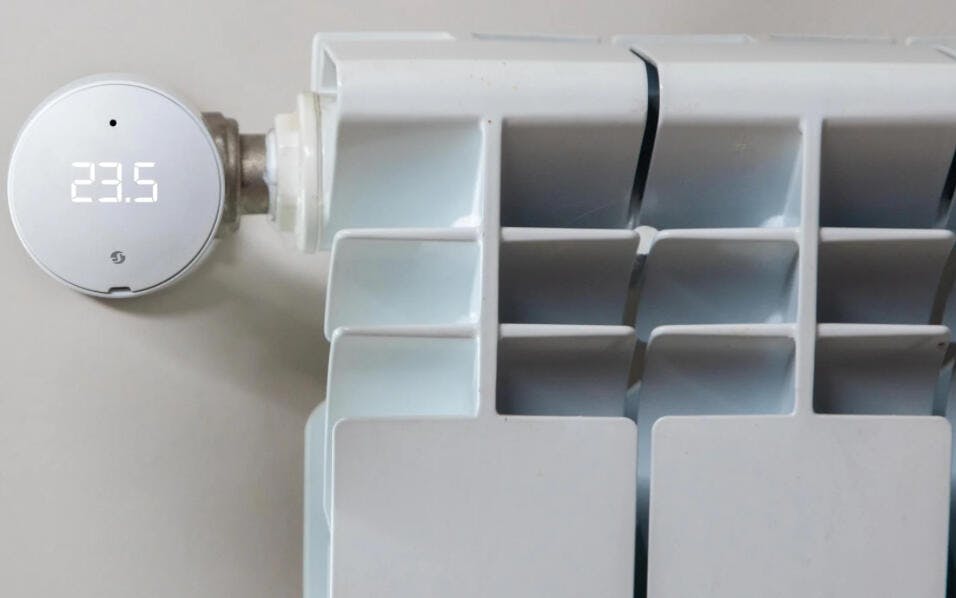

Shelly BLU TRV is a smart thermostatic radiator head with Bluetooth connectivity. It controls the temperature of a room by changing the flow of the hot water through the radiator. If needed, the temperature can be changed at any time by turning the Device rotating knob to the left or right, or through your mobile phone, tablet, or PC. The Device can also maintain the room temperature according to a set weekly schedule. It is powered by 2 AA, 1.5 V batteries.

Advanced Setup and Installation

How to pair Shelly BLU TRV with Shelly BLU Gateway Gen3

Main features

Bluetooth
2x1.5 V battery AA (included)
Precise temperature control
Boost mode for fast warm-up of the room
Smart scheduling
External sensor support (compatible with Shelly BLU H&T, Shelly BLU Door/Window sensors, associated via Blu Gateway Gen3)

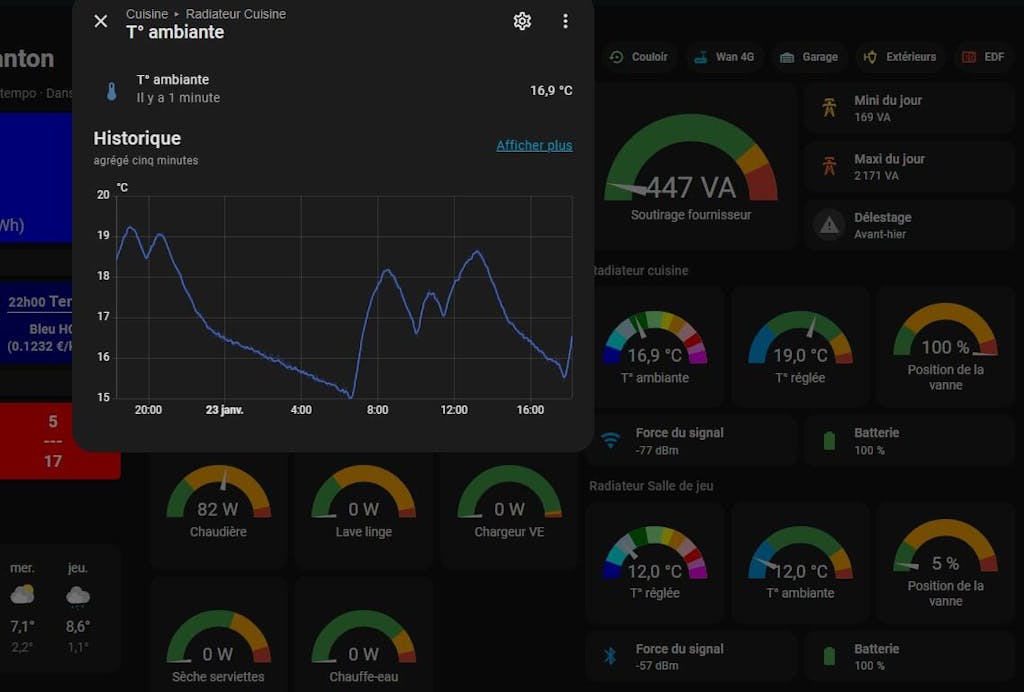

Integration with most smart home systems
Requires Blu Gateway Gen3

Use cases

Remote temperature control: Make sure that your home is warm upon arrival and save energy by not heating the home unnecessarily when it is not occupied.
Smart scheduling for energy efficiency: Set up smart schedules in the cloud application to optimize your heating schedule and save on energy costs.
Boost mode for rapid heating: Activate Boost mode locally via the rotary encoder, or remotely through the cloud. This mode fully opens the valve to rapidly reach a comfortable temperature.
Room-by-room temperature control: Manage the temperature independently for each room. Achieve personalized comfort and improved energy efficiency by heating rooms according to their specific use.
Adaptive learning for personalized heating: Adjust your heating system for optimal comfort and safety using data from external sensors, such as Shelly BLU H&T and Shelly BLU Door/Window.

Connectivity

Bluetooth Low Energy (BLE)

User interface

Inputs

User (reset) button
- Press once to activate Bluetooth pairing mode
- Press 3 times to activate Zigbee network association
- Press and hold for 30 seconds to factory reset the Device.
Rotating knob
- Turn at least 1 step clockwise (CW) or counterclockwise (CCW) to activate the LEDs.
- Turn the knob in quick short movements for less tan 10 steps CCW > CW > CCW> CW (start in either direction) to access the TRV user menu. The menu starts with a battery level indication
  - Turn 4 steps CW to activate the Bluetooth pairing mode (active 30 seconds)
  - Turn 2 steps CW to activate Zigbee network association (active 30 seconds)
- Turn 1 step CW to increase temperature with 0.1 °C
- Turn 1 step CCW to decrease temperature with 0.1 °C
- Turn the knob quickly for more than 10 steps CW to turn on Boost mode
- Turn the knob quickly for more than 10 steps CCW to turn off Boost mode

Outputs

3-digit, 7-segment LED display:

Mounting
TRV head not mounted on the backplate
Calibration
Calibration in progress
Calibration passed
Calibration failed
Temperature setting
Temperature setting in progress
Confirming the set temperature
Boost mode
Boost mode on
Boost mode off
Battery level
0-25%
25-50%
50-75%
75-100%
Low battery level. Change batteries.
Pairing & Association
Bluetooth pairing (active 30 seconds)
Number of paired BLE devices
No paired BLE devices
Result of pairing/association
Result of pairing/association
Zigbee network association (active 30 seconds)
Zigbee network status
Zigbee network status - associated
Zigbee identifying
User menu
Battery level (default entry)
Number of paired BLE devices (1 step CW)
Zigbee network status (2 steps CW)
Number of errors (3 steps CW)
Bluetooth pairing (4 steps CW)
Prompt to exit user menu (5 steps CW)
Updates
Over-the-air update in progress
Errors
No errors
Number of errors
Calibration error
Insufficient voltage or current output. Change batteries

Supported valves

Without adapter

M30 x 1.5

With supplied adapter

Danfos
- RA
- RAV
- RAVL
Caleffi
Giacomini
M28 x 1.5
- Sam
- Slovarm
- Comap
- Markardys
- TA
- Herz
- MMA
- Remagg
- Pont a Mousson

With third-party adapter

Gampper (27 mm thread and inner thread M22)
Glacomini
Ista
Meges (M38 x 1.5)
Ondal (M38 x 1.5)
Oventrop (M30 x 1.0 with 4 prongs)
Rossweiner (M33 x 2.0)
Vallant (30.5 mm)

View the full list of valves and their compatibility:

Shelly-TRV-Valves-compatibility-list-new.pdf

Simplified internal schematics

Specifications

Quantity	Value
Physical
Size (HxD):	78 x Ø54 mm / 3.07xØ2.13 in
Weight:	107 g / 3.77 oz
Mounting:	M30 / 15
Mounting ring material:	Nickel-plated brass
Shell material:	Plastic
Shell color:	White
Environmental
Ambient working temperature:	-20°С to +60°С / 68°F to 140°F
Humidity:	25% to 80% RH
Pollution degree:	2
Electrical
Power supply:	2x AA, 1.5 V (included)
Estimated battery life:	up to 2 years
Sensors, meters
Temperature sensor:	Yes
Radio
Bluetooth
Protocol:	4.2
RF band:	2400 - 2483.5 MHz
Max. RF power:	< 5 dBm
Range:	Up to 30 m / 98 ft outdoors, up to 10 m / 33 ft indoors (depending on local conditions)
Firmware capabilities
Schedules:	Yes
Encryption:	AES (CCM mode)

FAQ

When should I use the Underfloor heating functionality?

A1: When the Device is not mounted on a radiator but controls underfloor heating.
A2: When the room is too large for the radiator to distribute and maintain heat evenly.
A3: When there is poor air circulation around the radiator.

When should I not use Underfloor heating functionality?

A1: When the external sensor readings are not reliable.
A2: When maintaining temperature is crucial.

Troubleshooting

Problem	Possible cause	Solution
Shelly BLU TRV is unresponsive during the firmware update	The update does not complete successfully, causing the Device to enter Bootloader mode.	Perform a manual update using the Shelly Debug BLE Devices application: We recommend using an Android smartphone for best results. We recommend using new batteries for the update. Before you begin, remove the Device from your smartphone’s Bluetooth settings by selecting Forget. Open the Shelly Debug app. Press and hold Reset button of the Device. While holding the button, insert the new batteries and close the battery compartment. The Device will appear in the app’s Device list for about 40 seconds. Select the Device from the list. Start the OTA update.
The Device is paired to an external sensor. The Device shows a temperature above the target, but the valve remains open.	Underfloor Heating mode is not enabled. In this case, the Device might receive a higher temperature reading from the paired external sensor, which it uses to adjust (correct) its internal temperature measurement. Therefore, valve control is based on this corrected internal temperature rather than directly on the external sensor's reading.	This behavior is normal. Enable Underfloor Heating mode if you prefer the Device to rely exclusively on data from the external sensor, ignoring the built-in sensor.
	The Device senses a quick drop in temperature and opens the valve early to keep the temperature from going below the target.	This behavior is normal and is part of the normal operation of the algorithm.
	The radiator heats unevenly, causing the Device's temperature to be lower than expected.	Ensure proper water flow in the radiator by bleeding it.
	Underfloor heating is enabled, but the device is not receiving updated temperature values. The gateway might be too far away, preventing the Device from receiving the latest external temperature reading.	Move the gateway closer to the Device to improve communication.
The temperature increases when the algorithm is changed via the power_save flag.	Applicable for FW version ≥1.2.0 The BLU TRV adjusts its current temperature reading based on radiator heat. Changing the algorithm or updating the firmware might reset these adjustments. The Device needs time to recalculate.	The BLU TRV will automatically adapt and gradually adjust its temperature readings.
The Device cannot fully close the valve even when the temperature is set to the minimum. The issue persists after successful calibration.	The plunger is a bit shorter than required to close your valve.	Attach a small metal disk, (approx. the size of a 1 Euro cent coin), to the black plunger tip to extend its travel.
The Device cannot take readings from an external temperature sensor to set the target temperature.	Underfloor Heating feature not enabled through the Shelly Smart Control app or the web interface of the Gateway Gen3. Temperature sensing behavior with an external BLU H&T sensor paired with the TRV If Underfloor Heating is enabled: The TRV uses data only from the external sensor disregarding the built-in sensor. If Underfloor Heating is disabled: The TRV uses data from the external BLU H&T to correct the built-in sensor.	Enable the Underfloor Heating feature: Login to the Shelly Smart Control app or access the Gateway Gen3 web interface. Select the TRV you want to configure. Go to Settings>TRV Behavior. Enable the Underfloor heating feature.
The Device’s valve appears to be open, even though it is set to.	Thedisplay message appears when Boost mode is turned off (the knob is turned CCW for more than 10 steps). For more details, see section User interface https://kb.shelly.cloud/knowledge-base/shelly-blu-trv#ShellyBLUTRV-Userinterface	If you want to close the valve, decrease the target temperature by turning the knob CCW for less than 10 steps.
Calibration fails and the display showsormessage.	Insufficient output voltage or current from the batteries.	Change the batteries. Calibration starts automatically upon mounting the TRV head on the back plate.
CW - clockwise CCW - counterclockwise In case you did not find solution to your problem, join our https://www.facebook.com/groups/Shelly-support-group-(English-Version)-1686781668087857/?locale=it_IT&_rdr or contact us at support@shelly.cloud.
