Device identification
Device name: Shelly Flood Gen4
Device model: S4SN-0071A
Device SSID: ShellyFloodG4-XXXXXXXXXXXX
BLE ID: 0x1822
Short description
The Shelly Flood Gen4 alerts you when water appears where it shouldn’t - such as under your water heater, dishwasher, or washing machine. It comes with an innovative leak sensor cable that covers larger areas, detecting leaks beyond a single point to provide unmatched protection for your home. Multiple leak sensor cables can be connected, extending coverage up to 150 meters.
Receive instant alerts directly to your mobile device and customize safety protocols to protect your family and property.
Shelly Flood Gen4 offers Wi-Fi, Zigbee, and Bluetooth connectivity. It also includes a built-in web interface for easy monitoring, control, and settings adjustments.
Main features
Leak detection for smaller and larger areas via extendable leak sensor cable
Supports two modes: Flood Detection and Rain Detection
Three built-in flood alarm modes: Intense, Normal, and Economic
Remote notifications and built-in buzzer for local alerts
Battery-powered for flexibility and uninterrupted operation
IP44 protection for durability and environmental resistance
Broad compatibility with third-party home automation systems
Supports local automation actions for independent operation
Support for Shelly Cloud and Shelly Smart Control app
Use cases
Immediate Flood Detection
Receive instant alerts when Shelly Flood Gen4 detects water in areas like basements, bathrooms, or laundry rooms, enabling quick action to prevent damage.Protect Your Home from Water Damage

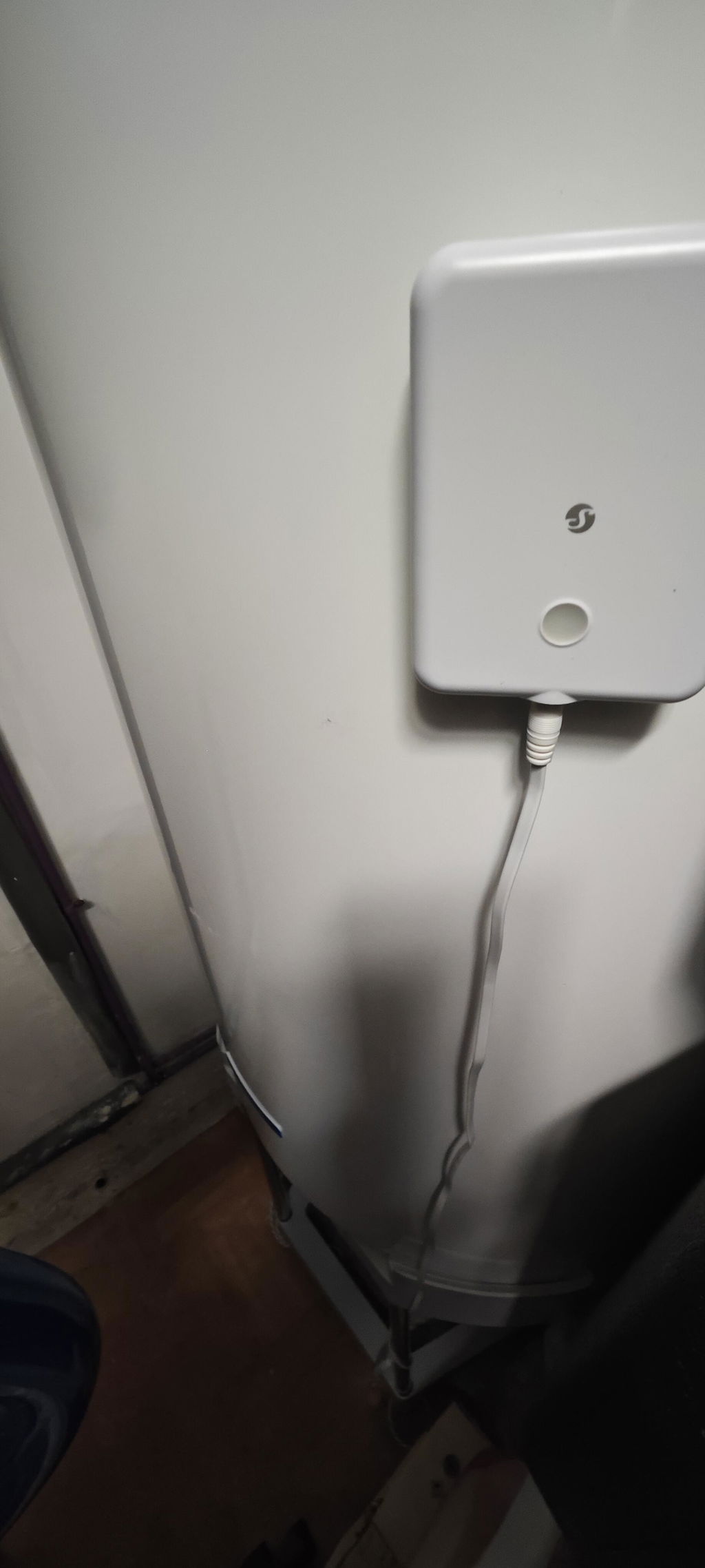

Place Shelly Flood Gen4 near vulnerable appliances or plumbing systems. If a leak occurs, you’ll be alerted in real time, helping to minimize potential damage.Monitor High-Risk Areas
Easily install Shelly Flood Gen4 in any room where flooding is a concern, such as kitchens or under sinks, and receive notifications through your phone without complex setup.Automatic Appliance Shutoff
Integrate Shelly Flood Gen4 sensor with smart devices to automatically turn off washing machines or dishwashers when a flood is detected, preventing further water damage.Detect Pipe Leaks Early
Run the leak sensor cable along a suspect pipe to quickly detect the presence of a leak, helping you take action before damage spreads.
Main applications
Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)…
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)…
Government/municipal
University/college
Farming
Integrations
Amazon Alexa supported capabilities
Contact Sensor
Google Smart Home supported traits
Sensor State
Samsung SmartThings supported capabilities
Battery
Water Sensor
Simplified internal schematics
Connectivity
Wi-Fi
Bluetooth
Zigbee
Matter
Accessories
Shelly leak sensor cable - included in the package with Shelly Flood Gen4. Click here to access 3D print files for cable holders compatible with the Shelly Leak Sensor Cable.
User interface
Inputs
LED Button:
Press 1 time: Wakes up the device for 3 minutes. The LED turns on and initiates a state report.
Press 1 time: Reports status of the Flood component.
Press 2 times rapidly: Sends the device to sleep.
Press 3 times rapidly: Puts the device in Zigbee inclusion mode. It stays in this mode for 3 minutes and you can find it in the Home Automation platform through the Zigbee Hub.
Press 5 times rapidly: Switch the Device from Matter firmware (default) to Zigbee, or back.
Press and hold for 5 seconds: Network reset. The LED flashes slowly. If no action is taken within 3 minutes, the device retains its existing settings.
Press and hold for 10 seconds: Resets the device to factory settings.
Outputs
Buzzer
Long beep (3.5 sec ON / 1.5 sec OFF): Indicates flood detection.
Short beep (0.3 sec ON / 5 sec OFF): Indicates low battery when the battery level is below 20%. The low battery alarm will not sound during a flood event (unless the flood alarm is muted via the LED button) or when Economic mode is selected.
LED Button Indication:
Blue light: AP mode is enabled.
Red light: STA mode is active, but the device is not connected to a Wi-Fi network.
Yellow light: STA mode is active, and the device is connected to a Wi-Fi network but not connected to the Shelly Cloud, or the Shelly Cloud is disabled.
Green light: STA mode is active, and the device is connected to both a Wi-Fi network and the Shelly Cloud.
Flashing Purple light: device is in Zigbee commissioning mode.
Flashing Red/Blue light: OTA update is in progress.
Flashing Yellow light: Device is in identification mode, signaling its presence for user identification.
Alarm Modes
Flood Detection Mode - detects a state change and, if water is present, triggers an immediate alarm to alert you of potential flooding.
Rain Detection Mode - detects a state change when water is present but does not trigger an alarm, ideal for non-critical scenarios like rain detection.
Mode | Alarm Mode | Report State Frequency* | Buzzer** | Buzzer Mute Conditions | Use Case |
|---|---|---|---|---|---|
Flood | Intense |
|
|
| Protect extremely valuable assets:
|
Normal (Default) |
| Normal use | |||
Economic | Disabled | N/A | Activate when you won’t visit for a while:
| ||
Rain | - | Automating outdoor areas, such as controlling motorized awning or sprinklers. |
*Continue reporting until successful, then sleep. Report again upon flood state change. If multiple reporting channels are configured, success on any channel will be considered a successful report.
**Buzzer pattern: 3.5 sec ON / 1.5 sec OFF
Specifications
Quantity | Value |
|---|---|
Physical | |
Size (HxWxD): | 97x76x25 mm / 3.82x2.99x0.98 inch |
Weight: |
|
Mounting: | Wall |
Shell material: | Plastic |
Shell color: | White |
Environmental | |
Ambient working temperature: | -20°C to 40°C / -5°F to 105°F |
Humidity: | 30% to 70% RH |
Max. altitude: | 2000 m / 6562 ft |
Electrical | |
Power supply: | Batteries |
Battery type: | 4x AA 1.5 V |
Estimated battery life: | approx. 2 years (depending on batteries used, device usage, and network connection strength) |
Sensors, meters | |
Leak sensor cable: | 2 m, extendable (up to 150 m), attaches via designated port |
Radio | |
Wi-Fi | |
Protocol: | 802.11 b/g/n/ax |
RF band: | 2401 - 2483 МHz |
Max. RF power: | < 20 dBm |
Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
Bluetooth | |
Protocol: | 5 (LE) |
RF band: | 2402 - 2480 MHz |
Max. RF power: | < 20 dBm |
Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
Zigbee | |
Protocols: | 802.15.4 |
RF bands: | 2405 to 2480 MHz |
Max. RF power: | < 20 dBm |
Range: | Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors |
Microcontroller unit | |
CPU: | ESP-Shelly-C68F |
Flash: | 8 MB |
Firmware capabilities | |
Schedules: | No |
Webhooks (URL actions): | 10 with 2 URLs per hook |
Scripting: | No |
MQTT: | Yes |
UDP: | Yes |
KVS (Key-Value Store): | Yes |
Shelly Smart Control
Troubleshooting
Q: Why doesn’t the Shelly Flood Gen4 detect a flood instantly?
A: To extend battery life, the Shelly Flood Gen4 checks for changes in flood status every 5 seconds. This slight delay balances prompt detection with optimal power efficiency.
Q: What can cause the Shelly Flood Gen4 to trigger false alarms?
A: The sensor cable may be touching conductive surfaces like pipes, rails, or other metal objects. High humidity with condensation can also trigger false alarm.
