Device identification
-

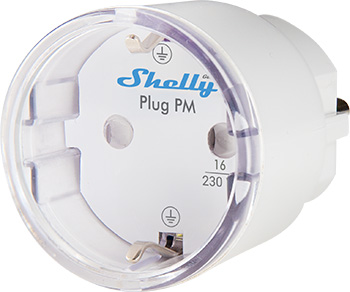

Device name: Shelly Plug PM Gen3
-
Device model: S3PL-30116EU
-
Device SSID: ShellyPlugPMGen3-XXXXXXXXXXXX
-
BLE ID: 0x1854
Short description
Shelly Plug PM Gen3 is a smart plug/outlet with power measurement capabilities, which allows remote monitoring of electrical appliances. It enables users to track and analyze energy consumption patterns helping to optimize power usage and prevent energy waste.
Due to its built-in web interface, the Device can be accessed, set up, and monitored remotely from anywhere with internet connectivity, as long as it's connected to a Wi-Fi router and the Internet.
Main features
-
Wi-Fi smart plug with multicolor LED indication
-
Scripting
-
Wi-Fi range extender
-
BLE gateway
-
Power metering
-
Wide compatibility with 3rd party home automation systems
-
Shelly Cloud/Shelly Smart Control app support (optional)
-
Virtual Components
Use cases
-
Color night light: Use the Device's LED indication to adjust your color light night. Night mode reduces the brightness of the LED indication of your Shelly Plug PM Gen3 during the night hours so that you can have undisturbed night sleep.
-
Energy monitoring: Track the real-time energy consumption of appliances like refrigerators or heaters, identify high-energy devices, and reduce power usage.
-
Usage analysis: By monitoring energy consumption patterns over time, you can make informed decisions about when to use appliances more efficiently or upgrade to more energy-efficient models.
-
Overload notification: The plug provides alerts if connected devices are drawing too much power, helping to prevent potential damage or overheating.
-
Cost estimation: The smart plug can help you estimate the operational costs of specific appliances, enabling better budget management by understanding how much each device contributes to the electricity bill.
Integrations
Amazon Alexa supported capabilities
Yes
Google Smart Home supported traits
Yes
Samsung SmartThings supported capabilities
Yes
Simplified internal schematics
Device electrical interfaces
Input
-
1 CEE 7/7 plug
Output
-
1 CEE 7/3 (Type-F / Schuko) socket
Connectivity
-
Wi-Fi
-
Bluetooth
Safety function
-
Internal temperature sensing and reporting
Supported load types
-
Resistive (incandescent bulbs, heating devices)
-
Capacitive (capacitor banks, electronic equipment, motor start capacitors)
-
Inductive (LED light drivers, transformers, fans, refrigerators, air-conditioners)
User interface
Inputs
-
One push button
-
Press and hold for 3 sec to check status.
-
Press and hold for 5 sec to reboot (Possible up to 60 sec after plugging in in the Device).
-
Press and hold for 10 sec to factory reset (Possible up to 60 sec after plugging in in the Device).
-
Outputs
-
LED indication
-
When plugged for the first time:
-
Blue light flashing, indicating AP mode.
-
-
When plugged/powered again after being successfully connected to a Wi-Fi network:
-
Red light flashing slowly, indicating the the Device is reconnecting to the Wi-Fi network.
-
Constant red light, indicating that the Device cannot reconnect to the Wi-Fi network.
-
-
Customer selected:
-
Power consumption represented by a smooth color change (Default):
-
Green light at 0% of power limit set
-
Yellow light at 50% of power limit set
-
Red light at 100% of power limit set
User can select the brightness (Default brightness - 100%).
-
-
Custom color (Default color - Green, Default brightness - 100%)
-
Off
-
-
When OTA update is in progress:
-
Red light flashing
-
-
Specifications
| Quantity | Value |
|---|---|
| Physical | |
| Size (HxWxD): | 44x44x70 ±0.5 mm / 1.73x1.73x2.75 ±0.02 in |
| Weight: | 48 ±1 g / 1.69 ±0.04 oz |
| Compatible sockets: | CEE 7/1, CEE 7/3 (Type F / Schuko) or CEE 7/5 (Type E) |
| Compatible plugs: | CEE 7/2, CEE 7/4 (Type F / Schuko), CEE 7/7, CEE 7/16 (Type C) or CEE 7/17 |
| Shell material: | Plastic |
| Color: |
|
| Environmental | |
| Ambient temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft |
| Glow-wire temperature: | 750°C |
| Pollution degree: | 2 |
| Required forced cooling: | No |
| Electrical | |
| Power supply: | 230 V~ 50 Hz |
| Power consumption: | < 1 W |
| Rated impulse-withstand voltage: | 2500 V |
| Max. current: | 16 A |
| Output circuits ratings | |
| Max. output power: | 3680 W (resistive load only) |
| Overvoltage category: | II |
| Sensors, meters | |
| Internal-temperature sensor: | Yes |
| Voltmeter (AC): | Yes |
| Ammeter (AC): | Yes |
| Power and energy meters: | Yes |
| Radio | |
| Wi-Fi | |
| Protocol: | 802.11 b/g/n |
| RF band: | 2412-2484 MHz |
| Max. RF power: | <10 dBm |
| Wi-Fi Range: | |
| Bluetooth | |
| Protocol: | 4.2 |
| RF band: | 2402 - 2480 MHz |
| Max. RF power: | |
| Range: | Up to 30 m / 98 ft outdoors, up to 10 m / 33 ft indoors (depending on local conditions) |
| Microcontroller unit | |
| CPU: | ESP-Shelly-C38F |
| Flash: | 8 MB |
| Firmware capabilities | |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
