Device image(s)
Device identification
-

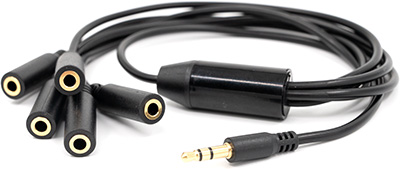

Device name: Splitter 1 to 5 - 3.5mm jack (Accessory for The Pill by Shelly)
-
Device model: N/A
Short description
Enhance temperature measurement by connecting simultaneously up to 5 Temperature probes. The splitter allows to extend the built-in Cable Adapter (3.5mm jack) up to 5 different temperature sensors DS18B20 (3.5 mm jack).
Supported temperature sensors: Up to 5x DS18B20 - 3.5mm Jack.
Specifications
| Physical | |
| Weight: | 40 g |
| Cable length: |
|
| Wire colors: | Black |
| Shell color: | black |
| Connectors: |
|
| Environmental | |
| Ambient working temperature: | 0 to 40 °C / 32 to 105°F |
| Storage temperature: | -20°C to 40°C / -5°F to 105°F |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
