Shelly Pro 1

59,90 €

Incl. VAT Shipping calculated at checkout.

In stock

Typically used for:

Lights

Appliances

Irrigation

Pool automation

Water manifolds

Shelly Pro 1

Name: Shelly Pro 1
Brand: Shelly
SKU: FG3800235268001
Price: 59.9 EUR
Availability: InStock
Rating: 4.31 (16 reviews)

59,90 €

Incl. VAT Shipping calculated at checkout.

In stock

1-phase, 1-channel relay with potential-free outputs (dry contacts), supporting up to 16A for professional lights and appliance automation for residential or commercial use.

Typically used for:

Lights

Appliances

Irrigation

Pool automation

Water manifolds

Get Protection Plus

5,99 €

Extended Coverage: Beyond the standard warranty
Free Replacements
Accidental Damage Protection

All orders are shipped from the EU

Key Features

LAN, Wi-Fi, and Bluetooth connection
1 output, 16A
Dry contacts
Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
Supports KNXnet / IP communication

Shelly Pro 1 v.1 is a modification of Shelly Pro 1 (SPSW-001XE16EU)

Shelly Pro 1 v.0 is now obsolete and out of sale.
Download Shelly Pro 1 multi-language printed user manual.

Differences with Shelly Pro 1 v.0 are marked by the ≠ symbol in the text below.

Main changes:

Power supply: no more 12 VDC option.
Relay: no more DC switching
Connectors: 3-terminal connectors are replaced by 2-terminal ones.
PCBs: relay 2-layer PCBs are replaced by 4-layer ones for better thermal performance.
LAN: improved high voltage electrical distances.
Plastics shell: improved dielectric performance.

Device identification (≠)

Device name: Shelly Pro 1 v.1
Device model: SPSW-201XE16EU
Device SSID: ShellyPro1-XXXXXX

Short description

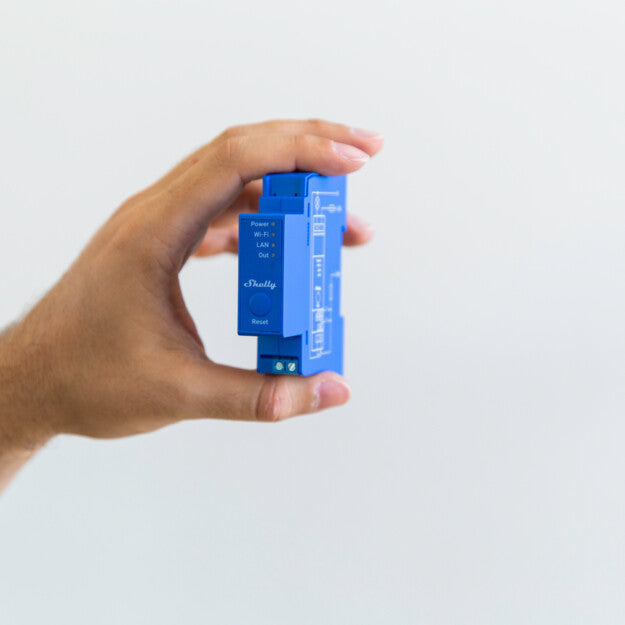

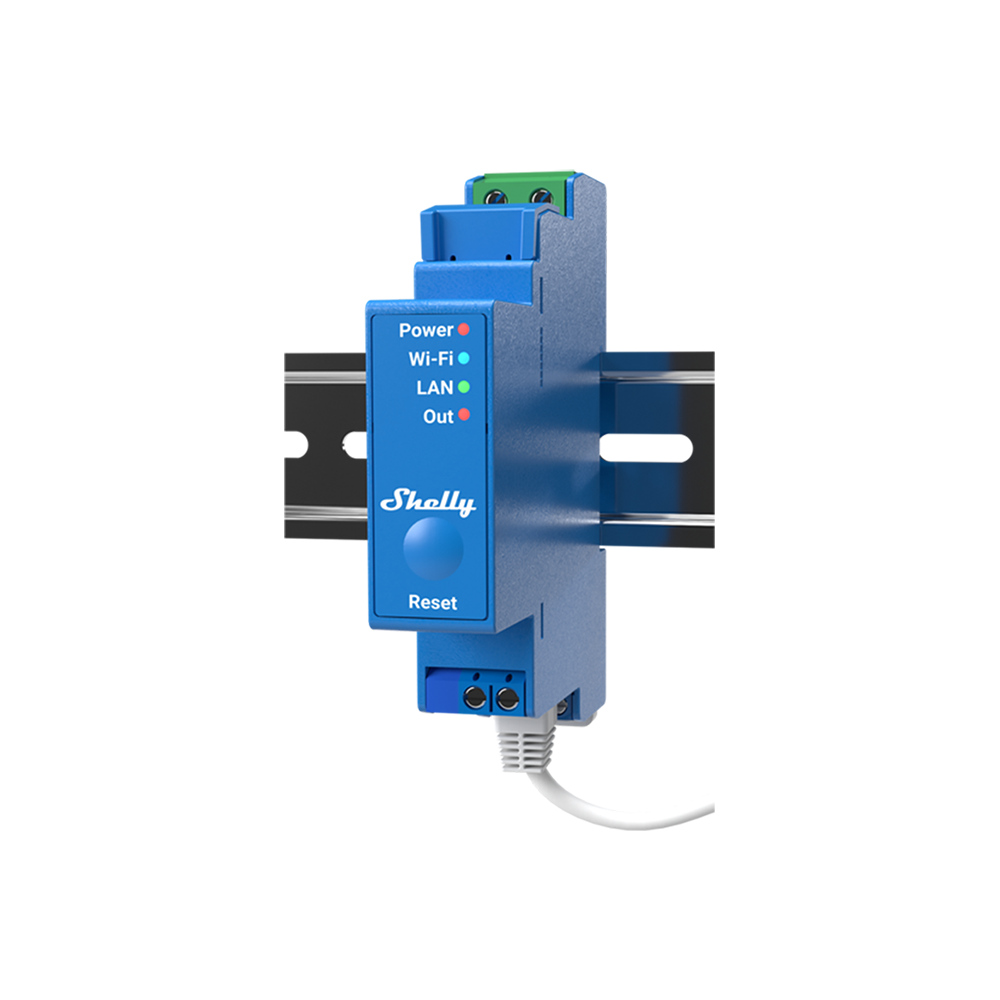

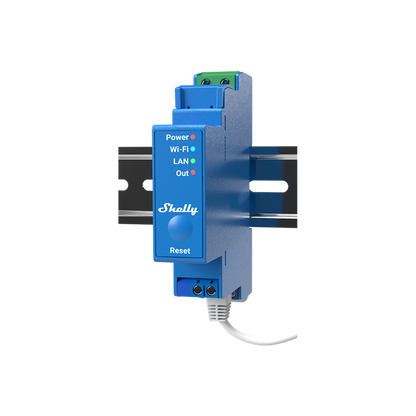

Shelly Pro 1 is a DIN rail mountable smart switch with potential-free contacts. Enhanced with all the gen2 firmware flexibility and LAN connectivity, it provides professional integrators with many more options for end customer solutions. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.

Shelly Pro 1 can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

Shelly Pro 1 has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Main applications

Residential
MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college

Integrations

Google
Alexa
Samsung SmartThings

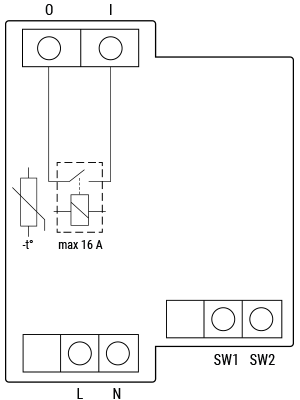

Simplified internal schematics (≠)

Device electrical interfaces

Inputs

2 switch/button inputs on screw terminals: SW1 and SW2
2 power supply inputs on screw terminals: 1 N and 1 L
1 relay input: I

Outputs

1 relay output: O

Ethernet port

1 RJ45 connector

⚠CAUTION! Plug in or unplug the LAN cable only when the Device is powered off! The LAN cable connector must not be metallic in the parts touched by the user to plug in or unplug the cable.

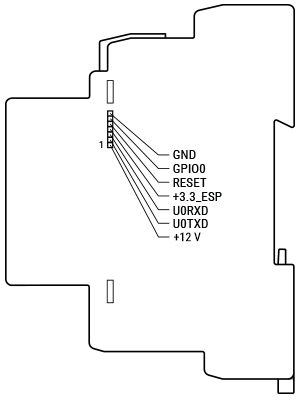

Add-on interface

Shelly proprietary serial interface

⚠CAUTION! High voltage on the add-on interface when the Device is powered!

Connectivity

Ethernet
Wi-Fi
Bluetooth

Safety features

Overheating protection

Supported load types

Resistive (incandescent bulbs, heating devices)
Capacitive (capacitor banks, electronic equipment, motor start capacitors)
Inductive with RC Snubber (LED light drivers, transformers, fans, refrigerators, air-conditioners)

User interface

Inputs

One tactile dome button
- Press and hold 5 sec to reboot.
- Press and hold 10 sec to factory reset.

Outputs

LED indication
- Power (red): Red light indicator will be on if power supply is connected.
- Wi-Fi (varies):
  - Blue light indicator will be on if in AP mode.
  - Red light indicator will be on if in STA mode and not connected to a Wi-Fi network.
  - Yellow light indicator will be on if in STA mode and connected to a Wi-Fi network. Not connected to Shelly Cloud or Shelly Cloud disabled.
  - Green light indicator will be on if in STA mode and connected to a Wi-Fi network and to the Shelly Cloud.
  - The light indicator will be flashing Red/Blue if OTA update is in progress.
- LAN (green): Green light indicator will be on if LAN is connected.
- Out (red): Red light indicator will be on if the Output relay is closed.

Specifications (≠)

Type	Value
Physical
Size (HxWxD):	94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in
Weight:	63 g / 2.22 oz.
Mounting:	DIN rail
Screw terminals max torque:	0.4 Nm / 3.54 lbin
Conductor cross section:	0.5 to 2.5 mm² / 20 to 14 AWG (green connector) 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors)
Conductor stripped length:	6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (blue connectors)
Shell material:	Plastic
Color:	Blue
Environmental
Ambient temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity	30 % to 70 % RH
Max. altitude	2000 m / 6562 ft
Electrical
Power supply voltage AC:	110 - 240 V
Power supply voltage DC:	N/A
Power consumption:	< 3 W
Neutral not needed:	No
Output circuits ratings
Max switching voltage AC:	240 V
Max switching voltage DC:	N/A
Max switching current AC:	16 A
Max switching current DC:	N/A
Sensors, meters
Internal-temperature sensor:	Yes
Radio
RF band:	2400 - 2495 MHz
Max. RF power:	<20 dBm
Wi-Fi protocol:	802.11 b/g/n
Wi-Fi Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol:	4.2
Bluetooth Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
MCU
CPU:	ESP32-D0WDQ6
Flash:	8 MB
Firmware capabilities
Schedules:	20
Webhooks (URL actions):	20 with 5 URLs per hook
Scripting:	Yes
MQTT:	Yes
CoAP:	No

Basic wiring diagram (≠)

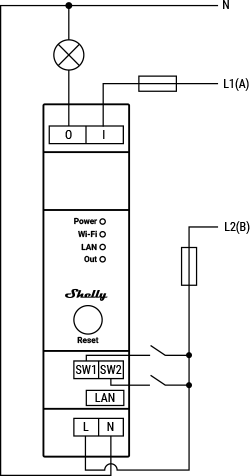

Resistive load

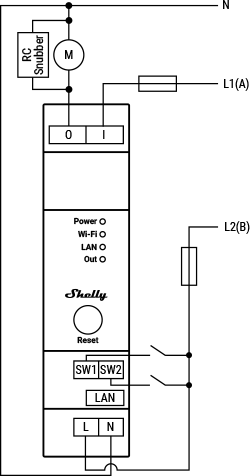

Inductive load and RC snubber

Legend

Terminals		Wires
I	Load circuit input terminal	L1(A)	Load circuit live (110-240 V) wire
O	Load circuit output terminal	L2(B)	Device power supply live (110-240 V) wire
SW1, SW2	Switch/button input terminals	N	Neutral wire
L	Live (110-240 V) terminal
N	Neutral terminal
LAN	Local Area Network RJ 45 connector

Shelly Smart Control

Adding the device to the Shelly Smart Control

Shelly Web user interface

Shelly Pro 1 Web user interface guide

Web Interface guide

Read the Shelly Pro 1 web interface guide

Components and APIs

Printed user guide

Compliance

Compliance archive

Shelly Pro 1 multilingual EU declaration of conformity 7-1 2022-08-22.pdf

Installation guides

FAQ

What are the differences between the different generations of Shelly products?

Each new generation adds more power, memory, and features:

Gen 1 offers basic control;

Gen 2 (Plus Series, Mini Series, Pro Series) adds Bluetooth, scripting, and better security;

Gen 3 improves performance, adds Matter (starting from firmware version 1.6.0 or newer) and advanced monitoring;

Gen 4 offers multi-protocol connectivity, featuring Wi-Fi 6, Bluetooth, Zigbee, and Matter.

Learn more: https://support.shelly.cloud/en/support/solutions/articles/103000316073-comparison-of-shelly-gen-1-gen-2-and-gen-3-devices?fbclid=IwY2xjawJHTR9leHRuA2FlbQIxMAABHaBfrCc1-eqoghqxTVUgn7QBaaqTBKa_dZyem_FbH6z6WrlrHbWo0p_OTg_aem_ltK1ZvtsjkrpzXAFx7uvhQ

Can I control the device via Bluetooth?

No, the protocol is used only for device inclusion, allowing for quick and easy setup through the Shelly Smart Control app.

For bluetooth control it is required to have another Bluetooth device such as Shelly BLU Button or Shelly BLU Motion to interact.

Additionally, Shelly devices can function as a BLE gateway, bridging Shelly BLU devices to your Wi-Fi network.

What does "dry contact" mean?

Dry contacts (also called potential-free contacts) are relay contacts that are completely isolated from the device's own power supply. Here's what this means:

Regular relay contacts: The switch contacts are connected to the device's internal power circuits

Dry contacts: The switch contacts are completely separate - like a mechanical switch with no electrical connection to the device itself

Why this matters for you:

- You can switch any voltage through the contacts (within rating limits)

- The contacts can break both live AND neutral lines safely

- No risk of electrical interference between your load circuit and the device's control circuit

- Perfect for true 2-pole switching applications

Can I control the Shelly Pro 1 remotely?

Yes, the Shelly Pro 2 can be controlled remotely through the Shelly Smart Control app, available for iOS and Android devices. Additionally, it supports integration with various smart home platforms, allowing for voice control and automation.

How do I reset the Shelly Pro 1?

Factory Reset: Press and hold the reset button for 10 seconds to restore factory settings. Note: These actions are available up to 60 seconds after plugging in the device.

Is it possible to use the device without a hub?

Yes, Shelly devices (except for Wave devices) operate independently without the need for a hub. They connect directly to your Wi-Fi network, and you can control them via the Shelly Smart Control app, web interface, or through integrations with platforms like Google Home, Alexa, Home Assistant and Samsung SmartThings.

Knowledge Base

EU Data act‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎ ‎

View full details

Why Shelly Pro Series?

Shelly Pro Series

Enhanced with temperature, overpower, and overvoltage load protection, Shelly Pro series is designed to be installed inside the breaker box (DIN). Allowing full smart automation with no additional cables or wiring, Shelly Pro line is perfect for homes, offices, stores, business, and manufacturing facilities, as well as new buildings.

Enhanced safety features

Overheating protection

In case of unsafe temperature levels or rapid temperature increase, device switches off the outputs and sends notification. Internal temperature sensor is measuring the heat every 100 ms.

Overpower protection

Detected overpower will lead to outputs switch off by the device and it will immediately send a notification. Overpower protection feature protects the device and other electrical equipment from potential damage.

*Feature is available only for power metering-enabled devices

Overvoltage protection

Voltage peaks could be dangerous for electrical appliances and machines. To avoid damage to the electrical appliances the device switches off the outputs when overvoltage peaks are detected and immediately sends a notification.

Flame Retardant (V-0)

All Shelly Pro components are produced with flame-resistant materials and will keep their construction even when exposed to high levels of heat.

LAN, Wi-Fi, and Bluetooth connectivity

LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN usage, as back up when needed.

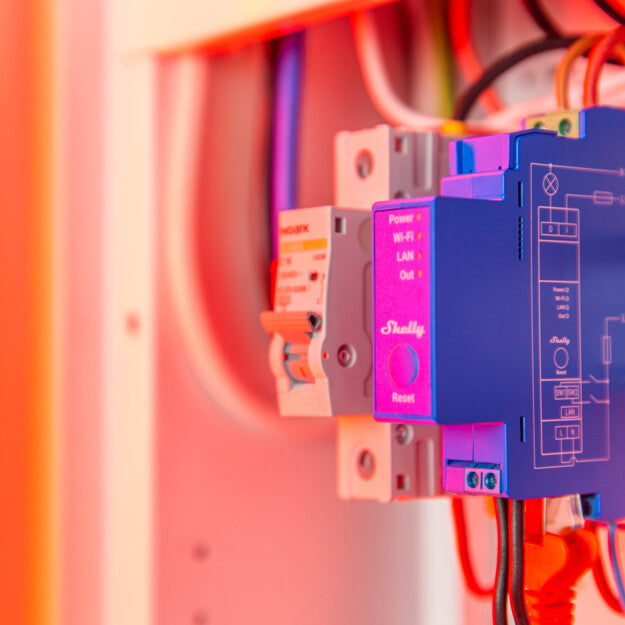

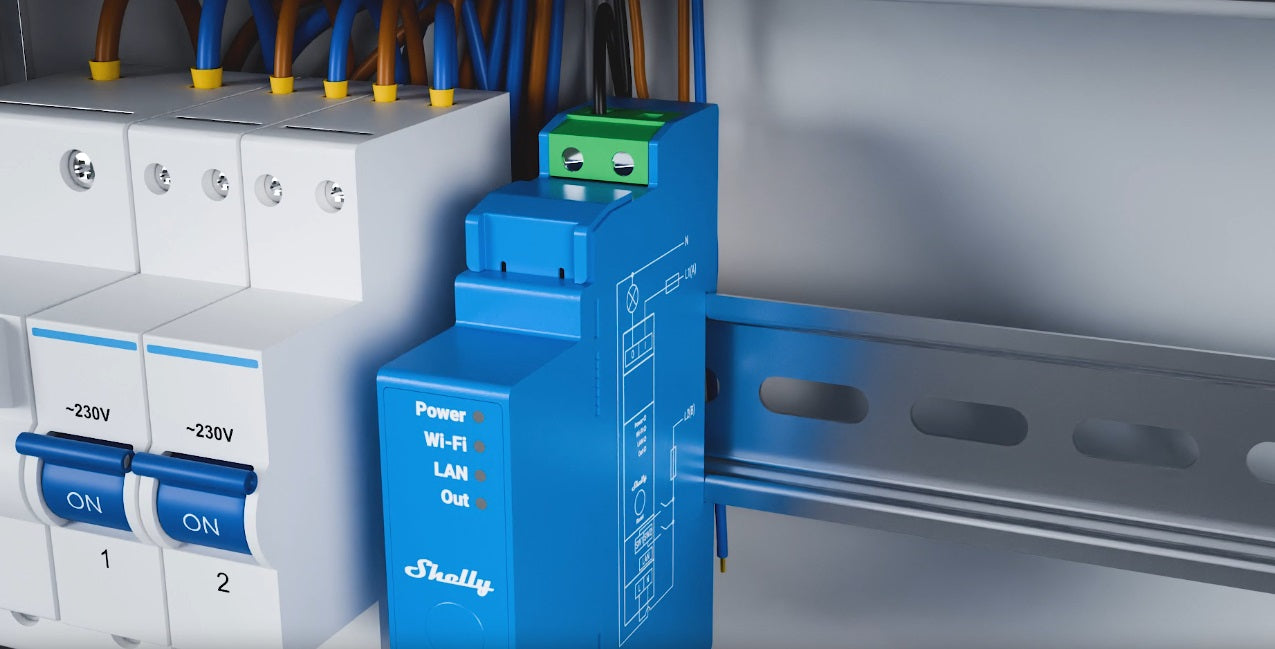

DIN-mountable

Intended to be installed inside the breaker box and designed to meet the global DIN rail standardization.

Dry contacts

Use a wide range of output voltage levels. Supports low voltages.

Low and high voltage support

Use it to control a wide range of AC devices and appliances.

Enhanced safety & security

Improved safety features and TLS 1.2 support, allowing a broad range of secure cloud-connected and local integrations,

Scripting capabiities

Shelly Pro 1 fully supports mjS scripting, allowing you to create further features and functionalities.

Solutions

Shelly Pro 1

Dynamic lights control for improved efficiency

Automate your lights and optimize their energy consumption through smart schedules, timers, and extended scripting functionalities. Shelly home automation solutions allow you to automate the lights on each floor separately and set custom schedules for each of them. Set all lights in the office to switch off when everyone has left the premises and never worry about wasting energy during non-working hours. In addition, Shelly Motion2 will ensure the most efficient use of the lights in the common spaces. The motion sensor will switch on the lights when someone enters and will switch them off once the room is empty.

Common space automation

Common spaces such as halls, garages, and storage rooms usually have their lights constantly switched on. However, that leads to inefficient usage of energy and unnecessary monthly costs. Shelly Motion2 will ensure the most efficient use of the lights in the common spaces. The motion sensor will switch on the lights when someone enters and trigger Shelly Pro 1 to switch them off once the premises are empty.

Sockets automation for efficient energy use

Make sure that no energy goes to waste by automating the sockets' power supply with Shelly Pro 1 and use the smart scheduling function to cut off the power to all heavy-consuming electrical appliances between 7:00 PM and 7:00 AM during the weekdays and between 7:00 PM on Friday and 7:00 AM on Monday. That way, you will cut the energy consumption of these devices in half, which will result in significant optimization of the monthly energy cost.

Pro Series features

HTTP/HTTPS webhooks for quick connection

Enhanced with HTTP/HTTPs webhooks, Shelly Pro line can easily connect with, notify or control other compatible equipment or 3rd party automation system.

Smart actions that follow the Sunrise/Sunset

Shelly Pro line can switch on/off the power, depending on the Sunset/Sunrise hour, allowing dynamic control of the electrical equipment depending on the season.

Automation with weekly scheduling

Shelly Pro line allows you to set up to 20 actions based on your daily or weekly schedule with no need for an external hub or server.

Scripting for custom automation

Shelly Pro line fully supports mjS scripting, allowing customers to create their own features and functionalities.

HTTP/HTTPS webhooks for quick connection

Enhanced with HTTP/HTTPs webhooks, Shelly Pro line can easily connect with, notify or control other compatible equipment or 3rd party automation system.

Smart actions that follow the Sunrise/Sunset

Shelly Pro line can switch on/off the power, depending on the Sunset/Sunrise hour, allowing dynamic control of the electrical equipment depending on the season.

Automation with weekly scheduling

Shelly Pro line allows you to set up to 20 actions based on your daily or weekly schedule with no need for an external hub or server.

Scripting for custom automation

Shelly Pro line fully supports mjS scripting, allowing customers to create their own features and functionalities.

5 stars: 12 (75%)
4 stars: 1 (6%)
3 stars: 1 (6%)
2 stars: 0 (0%)
1 star: 2 (13%)

Easy to install

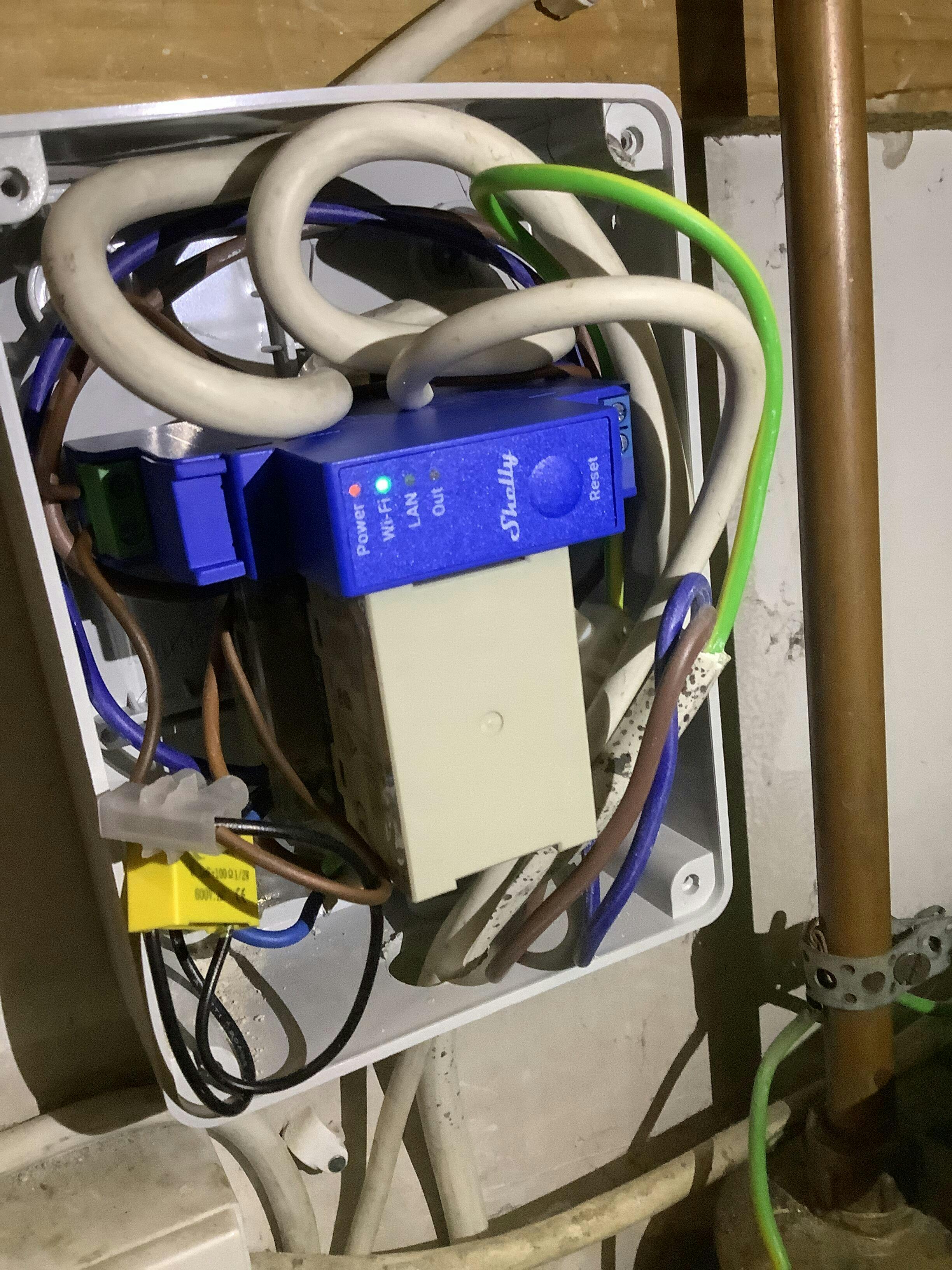

Easy to install, using it to remotely control my domestic water heater.
