Analog 0-30V Add-on

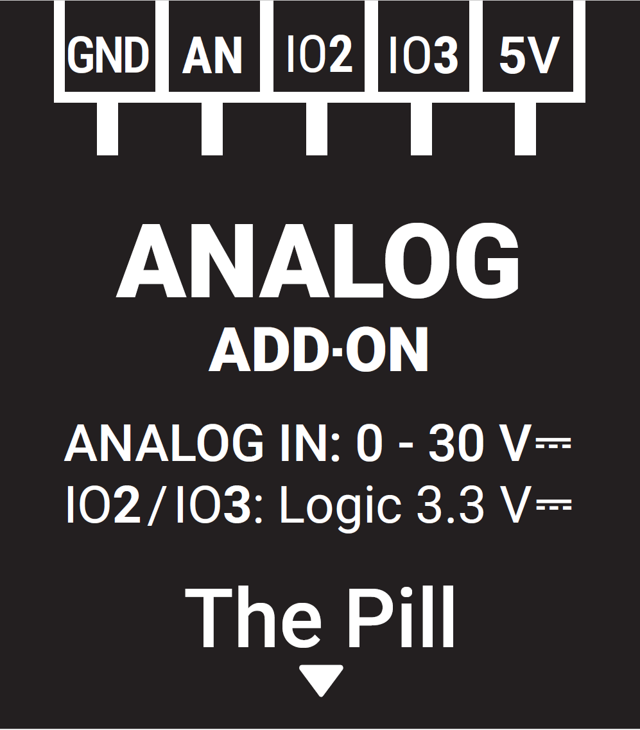

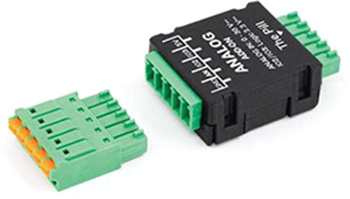

Device image(s)
Device identification
Device name: Analog 0-30V Add-on (Accessory for The Pill by Shelly)
Device model: N/A
Short description
Measures analog sensors and DC voltages up to 30V.
Extends the voltage measuring range of The Pill for analog sensors and batteries with voltages up to 30V. Suitable for the most popular analog sensors (0-5V) or battery measurement (4.2V, 12V, 24V).
Requires: 5-Terminal Add-on for connection with The Pill
Main features
Voltage measurement range 0-30V: Extends the voltage measuring range of The Pill for measuring analog sensors and batteries.
Device electrical interfaces
Inputs
1 Analog Input - AN
2 Digital Input/Outputs (logic-level 3.3 V) - IO2, IO3
Power
Optional Power terminals - 5V, GND
Addon interface
Interface connector for 5-Terminal Add-on for connection with The Pill
Detailed inputs and outputs description
Symbol |
Description |
Usage |
|---|---|---|
GND |
Ground |
Reference ground for connected sensors or power supply |
AN |
Analog Input: 0 - 30 V |
Measurement of the connected analog sensor or battery |
IO2 |
Input/Output (logic-level 3.3V) |
Configurable for: Digital Input or Digital Output |
IO3 |
Input/Output (logic-level 3.3V) |
Configurable for: Digital Input or Digital Output |
5V |
5V Power |
Power output for sensor or 5V Power for The Pill |
Specifications
Physical | |
Size (HxWxD): |
36.5 mm x 26.5 mm x 11.5 mm |
Weight: |
8 g |
Shell color: |
Black |
Environmental | |
Ambient working temperature: |
0 to 40 °C / 32 to 105°F |
Storage temperature: |
-20°C to 40°C / -5°F to 105°F |
Humidity: |
30 % to 70 % RH |
Max. altitude: |
2000 m / 6562 ft |
Sensors, meters | |
Voltmeter range (DC) |
0 V - 30 V |
Voltmeter accuracy: |
±(2% + 5d) |
Input circuits ratings | |
Digital inputs triggering voltage: |
Active LOW; Trigger low: < 0.83 V Trigger high: > 2.48 V |
Digital inputs max. voltage |
3.3 V |
Output circuits ratings | |
Max. switching voltage: |
3.3 V (logic-level) |
Max. switching current: |
20 mA |

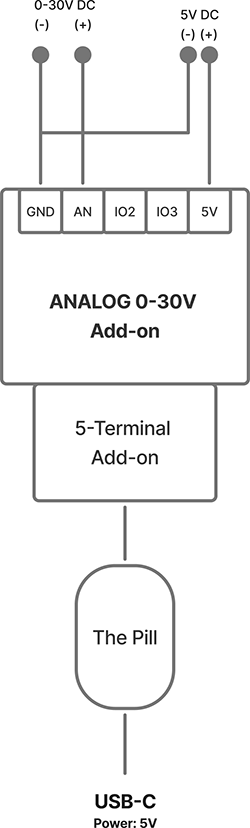

Basic wiring diagrams
