Device identification
Device type: Power adaptor
Device model: AED12J-1201000VDEO8
Technical specifications
| Specification | Value |
|---|---|
| Adapter input | 100-240 V AC, 50/60 Hz, 0.6 A |
| Adapter output | 12 V DC, 1 A max, 12 W CV |
| Ingress protection | IP68 (1.5 m) |
| Operating temperature | 0 to +40°C |
| Operating humidity | 10% RH to 90% RH, non-condensing |

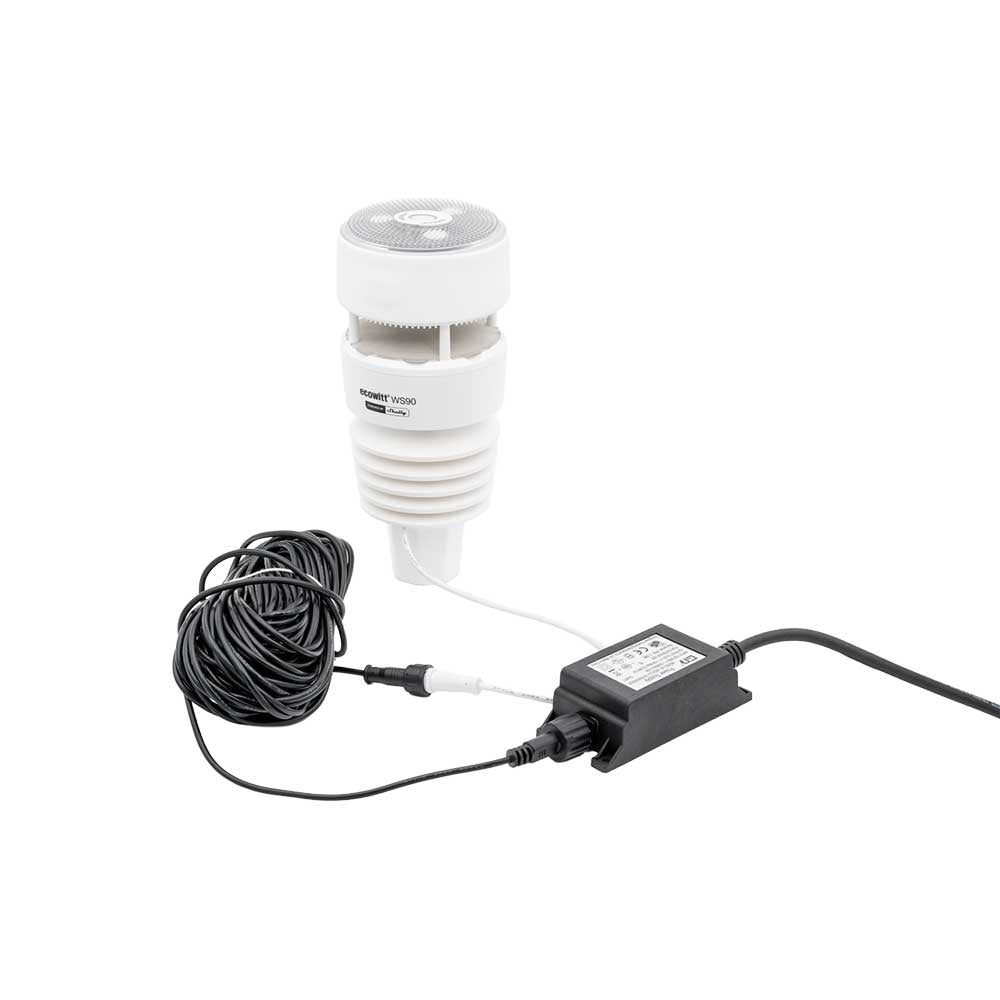

Installation guide
Legend:
-
Ecowitt WS90
-
WS90 power connector
-

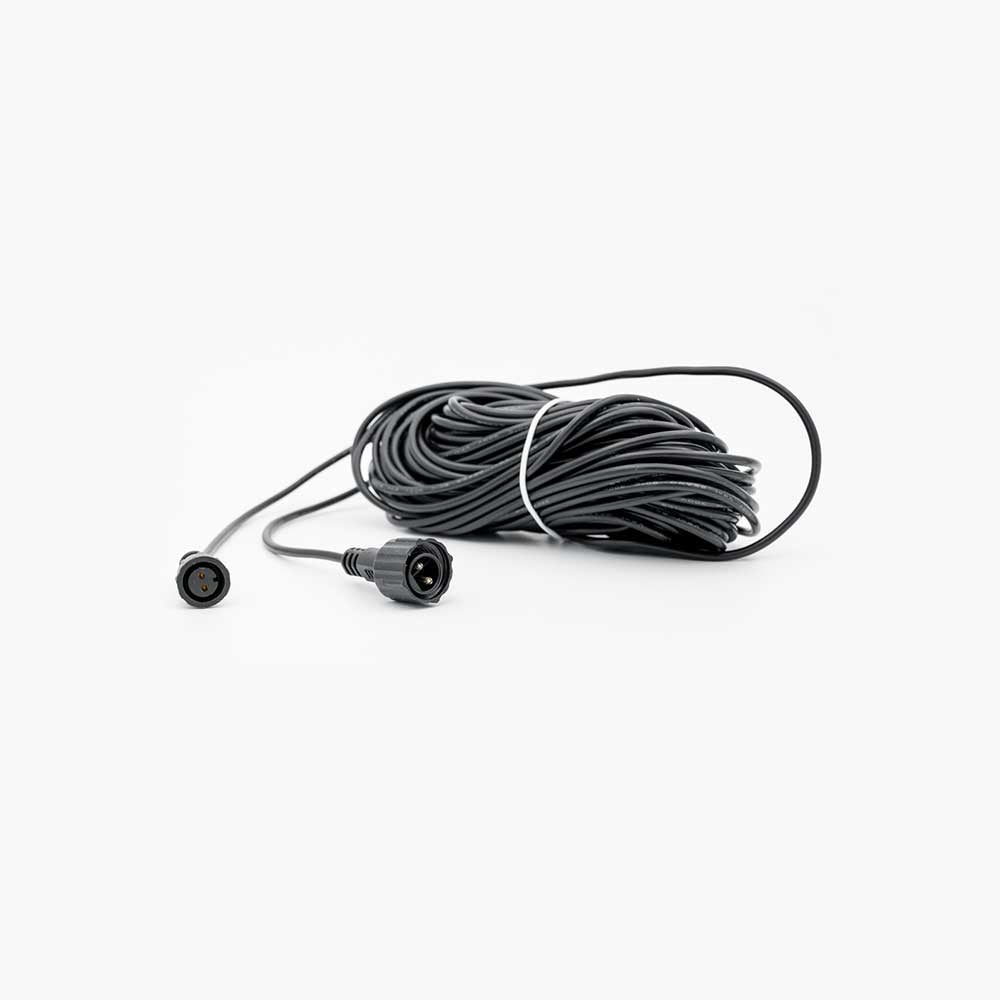

DC power cord
-

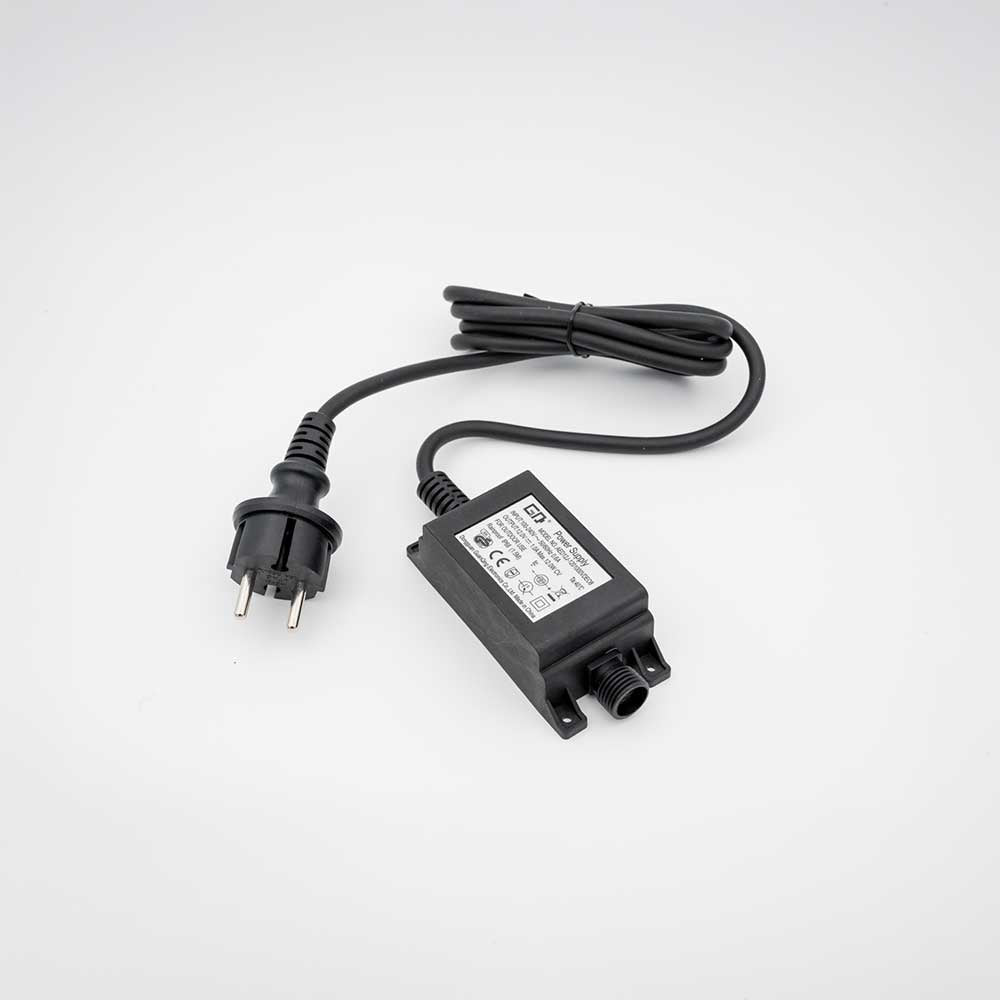

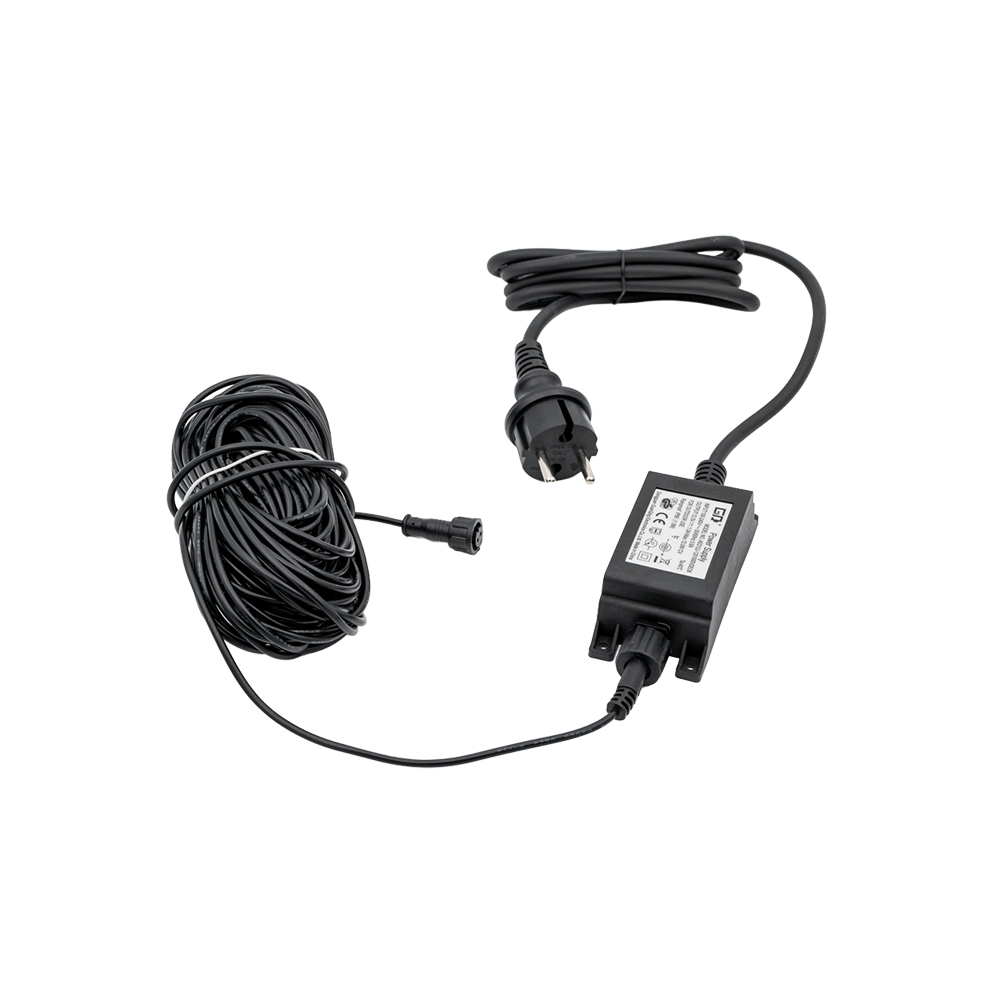

AED12J-1201000VDEO8 power adapter
-
Power plug
-
Connect the DC power cord to the adapter and to Ecowitt WS90.
-
Insert the adapter's plug into the power outlet.
Disposal and recycling
Do not dispose of the product in household waste. Recycle the product to prevent environmental and health damage and to promote resource conservation. Dispose of the product at an appropriate waste collection point at your own responsibility.
Resellers, from which the Device was purchased, are required to accept Waste Electrical and Electronic Equipment (WEEE) free of charge for proper disposal.
Some electronic products may store personal data. The user is responsible for deleting this data before disposing of the Device. For deletion, reset the device to its factory settings.
Printed user guide
AED12J-1201000VDEO8 user manual.pdf
Compliance
AED12J-1201000VDEO8 multilingual EU declaration of conformity.pdf
Manufacturer
Dongguan Guanqing Electronics Co., Ltd.
Address: Yuanjiang Road, Baishigang Village, Changping Town, Dongguan, Guangdong, China
Importer
Shelly Europe Ltd.
Address: 51 Cherni Vrah Blvd., bldg. 3, fl. 2-3, Sofia 1407, Bulgaria,
Email: support@shelly.cloud
Website: https://www.shelly.com
