Splitter 1 to 5 - 3.5mm Jack

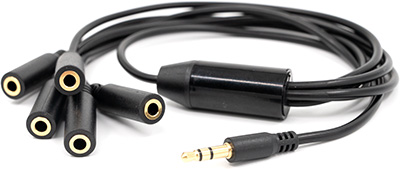

Device image(s)
Device identification
Device name: Splitter 1 to 5 - 3.5mm jack (Accessory for The Pill by Shelly)
Device model: N/A
Short description
Enhance temperature measurement by connecting simultaneously up to 5 Temperature probes. The splitter allows to extend the built-in Cable Adapter (3.5mm jack) up to 5 different temperature sensors DS18B20 (3.5 mm jack).
Supported temperature sensors: Up to 5x DS18B20 - 3.5mm Jack.
Specifications
Physical | |
Weight: |
40 g |
Cable length: |
|
Wire colors: |
Black |
Shell color: |
black |
Connectors: |
|
Environmental | |
Ambient working temperature: |
0 to 40 °C / 32 to 105°F |
Storage temperature: |
-20°C to 40°C / -5°F to 105°F |
Humidity: |
30 % to 70 % RH |
Max. altitude: |
2000 m / 6562 ft |
Declaration of conformity
Shelly Splitter 1 to 5 - 3.5mm jack multilingual EU declaration of conformity 248 2025-12-08.pdf
Shelly Splitter 1 to 5 - 3.5mm jack UKCA declaration of conformity 3032 2025-12-08.pdf
