Componente aggiuntivo analogico 0-30 V (accessorio per The Pill by Shelly)

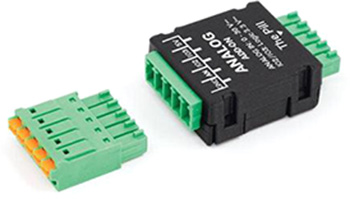

Device image(s)

Device identification

Device name: Analog 0-30V Add-on (Accessory for The Pill by Shelly)
Device model: N/A

Short description

Measures analog sensors and DC voltages up to 30V.

Extends the voltage measuring range of The Pill for analog sensors and batteries with voltages up to 30V. Suitable for the most popular analog sensors (0-5V) or battery measurement (4.2V, 12V, 24V).

Requires: 5-Terminal Add-on for connection with The Pill

Main features

Voltage measurement range 0-30V: Extends the voltage measuring range of The Pill for measuring analog sensors and batteries.

Device electrical interfaces

Inputs

1 Analog Input - AN
2 Digital Input/Outputs (logic-level 3.3 V) - IO2, IO3

Power

Optional Power terminals - 5V, GND

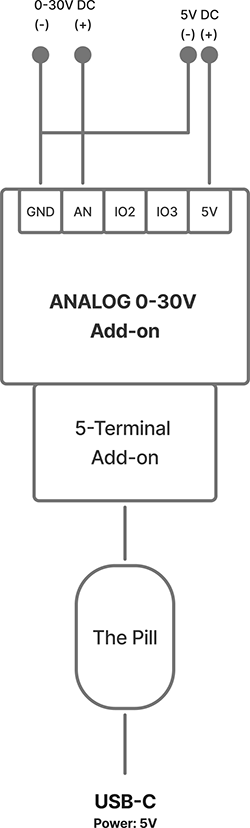

Addon interface

Interface connector for 5-Terminal Add-on for connection with The Pill

Detailed inputs and outputs description

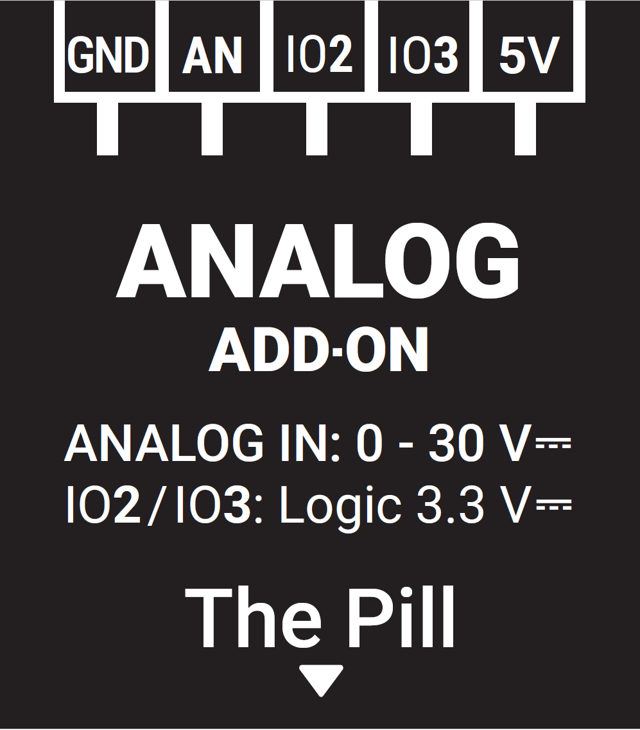

Symbol	Description	Usage
GND	Ground	Reference ground for connected sensors or power supply
AN	Analog Input: 0 - 30 V	Measurement of the connected analog sensor or battery
IO2	Input/Output (logic-level 3.3V)	Configurable for: Digital Input or Digital Output
IO3	Input/Output (logic-level 3.3V)	Configurable for: Digital Input or Digital Output
5V	5V Power	Power output for sensor or 5V Power for The Pill

Specifications

Physical
Size (HxWxD):	36.5 mm x 26.5 mm x 11.5 mm
Weight:	8 g
Shell color:	Black
Environmental
Ambient working temperature:	0 to 40 °C / 32 to 105°F
Storage temperature:	-20°C to 40°C / -5°F to 105°F
Humidity:	30 % to 70 % RH
Max. altitude:	2000 m / 6562 ft
Sensors, meters
Voltmeter range (DC)	0 V - 30 V
Voltmeter accuracy:	±(2% + 5d)
Input circuits ratings
Digital inputs triggering voltage:	Active LOW; Trigger low: < 0.83 V Trigger high: > 2.48 V
Digital inputs max. voltage	3.3 V
Output circuits ratings
Max. switching voltage:	3.3 V (logic-level)
Max. switching current:	20 mA
